Detailed Specifications

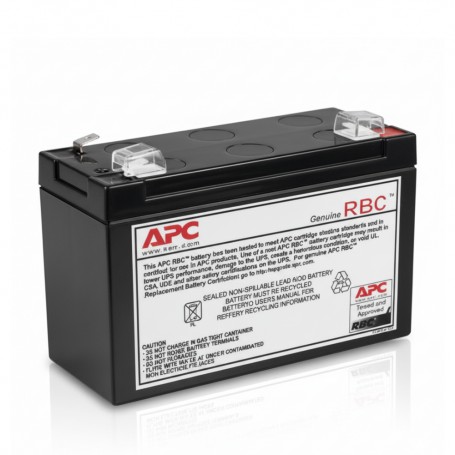

APC RBC110 UPS Replacement Battery Cartridge
Overview
The APC RBC110 is a replacement battery cartridge designed to restore or extend the runtime capability of compatible uninterruptible power supply (UPS) systems. It is typically deployed by IT support teams, facilities engineers, and data center personnel as part of scheduled UPS maintenance or when the original UPS battery loses capacity due to end-of-life. Installing the RBC110 renews the UPS's ability to support connected equipment such as servers, switches, and storage devices during short utility outages, enabling controlled shutdowns or ride-through of power interruptions.
This cartridge contains sealed maintenance-free lead-acid battery cells matched to the host UPS's original battery specifications. The plug-in design allows technicians to replace a depleted battery pack through the UPS's battery access panel without complex wiring, maintaining consistent performance and simplifying serviceability. Because the RBC110 integrates directly into the UPS's battery subsystem, it preserves the runtime characteristics defined by the UPS manufacturer.
As a replacement battery component, the RBC110 does not provide UPS functionality on its own. It must be installed within a compatible UPS chassis to deliver battery-backed power and does not offer stand-alone surge protection or voltage regulation.
Key Features
• Maintenance-free sealed lead-acid replacement battery
• Restores original UPS runtime capacity
• Plug-and-play installation for compatible UPS models
• Matched to UPS battery subsystem specifications
• Simplifies UPS battery maintenance procedures
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | RBC110 |
| Product Type | UPS Replacement Battery Cartridge |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Application | UPS battery subsystem replacement |
| Typical Voltage | ~12 V per cell configuration |
| Maintenance | Maintenance-free sealed design |
| Mounting | Installed within compatible UPS battery compartment |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20-40 °C |
| Dimensions (H × W × D) | ~2.0 × 5.0 × 3.5 in (approx) |
| Weight | ~3-5 lb (varies by configuration) |
| Certifications | Standard UPS battery safety approvals |
