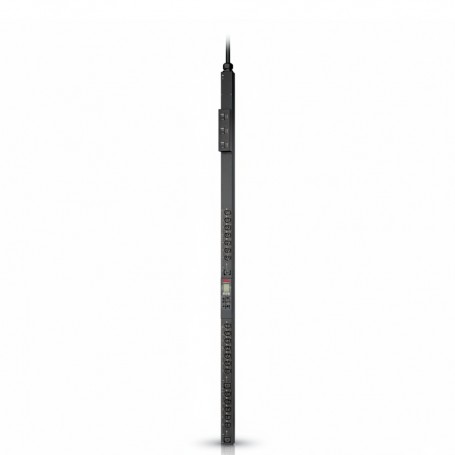

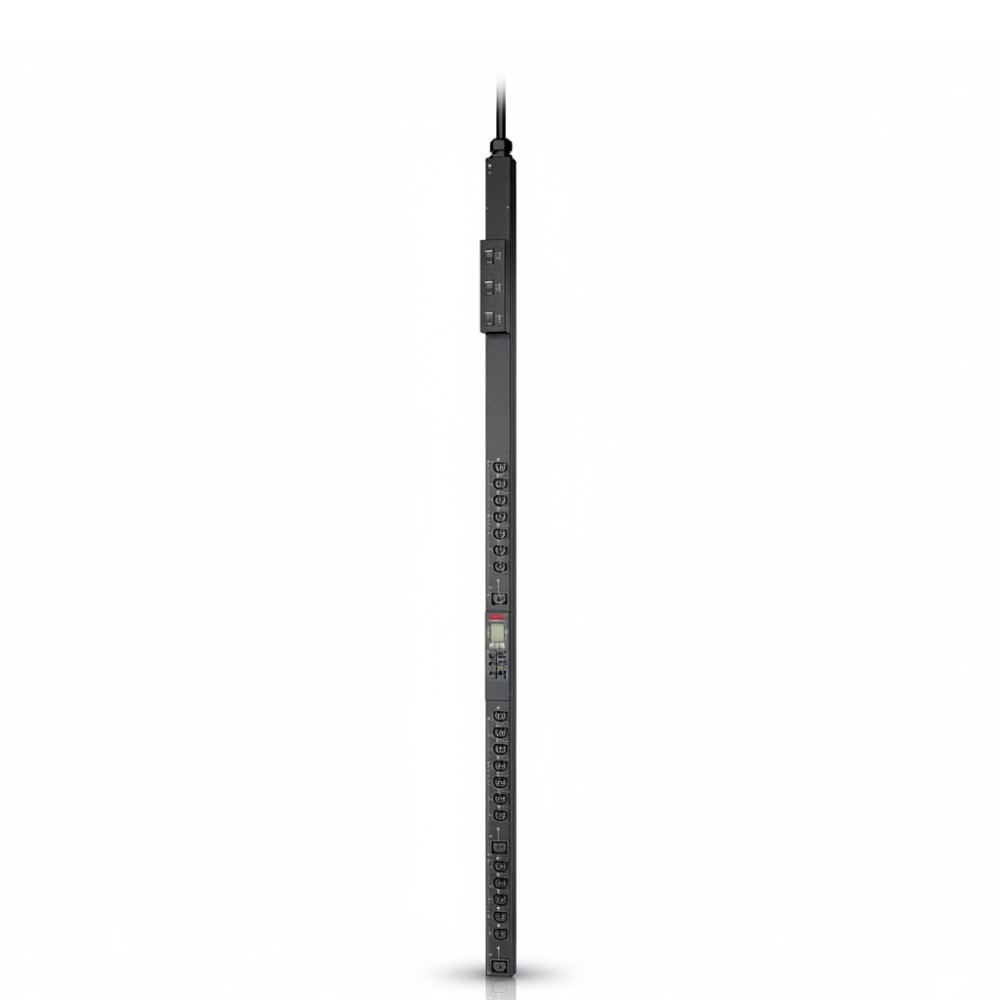

APC APDU10451SM NetShelter Rack PDU Advanced, Switched Metered Outlet View larger

APC APDU10451SM NetShelter Rack PDU Advanced Switched Metered Outlet

New

14.4kW 3-Phase Switched Metered PDU with 42 Outlets and CS8365C Input
×




  • New

Detailed Specifications

APC APDU10451SM NetShelter Rack PDU Advanced, Switched Metered Outlet, 3Phase

Overview

The APC APDU10451SM is a high-performance, 3-phase rack-mounted Power Distribution Unit (PDU) designed to deliver reliable and efficient power distribution in data centers and IT environments. With a robust 14.4kW capacity and 42 outlets, it ensures optimal power delivery to critical equipment. The unit features a CS8365C input connector, supporting a 50A current draw, and offers real-time monitoring through its switched metered outlets. Its compact design and advanced features make it ideal for modern IT infrastructures requiring precise power management.

Key Features

  • High Capacity: Delivers up to 14.4kW of power, supporting high-density equipment.

  • Comprehensive Outlet Configuration: Equipped with 42 outlets, including C13/C15 and C19/C21 types, to accommodate various devices.

  • Real-Time Monitoring: Provides switched metered outlets for precise power usage tracking and control.

  • Durable Construction: Built with high-quality materials to ensure longevity and reliability in demanding environments.

Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number APDU10451SM
Product Type Switched Metered Outlet PDU
Input Voltage 208V 3-phase
Input Connector CS8365C 50A
Output Voltage 208V
Total Capacity 14.4kW
Number of Outlets 42 (21 C13/C15, 21 C19/C21)
Cord Length 1.8 meters
Dimensions (HxWxD) 1780 x 56 x 75 mm
Net Weight 11.1 kg
Operating Temperature -5°C to 60°C
Warranty 3 years
Compliance UL 62368-1, CSA C22.2 No 62368-1, FCC Part 15 Subpart B, TAA compliant
