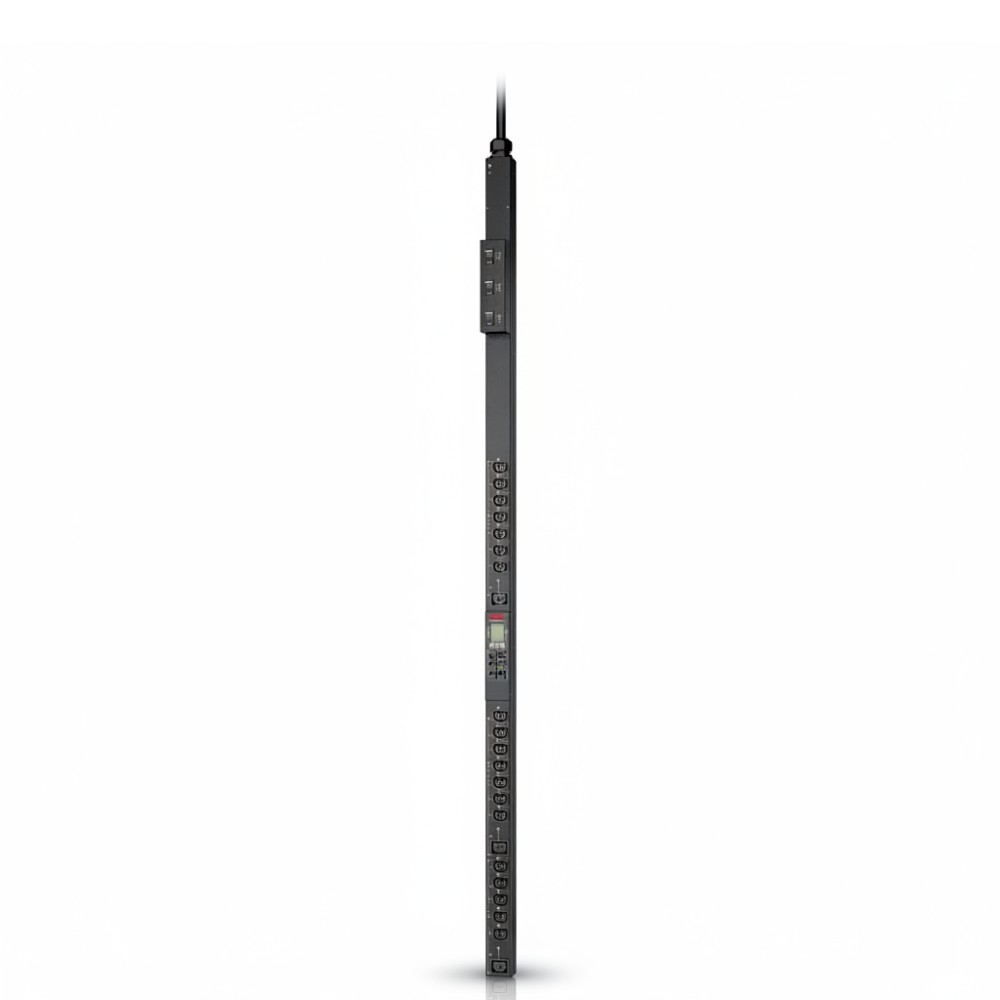

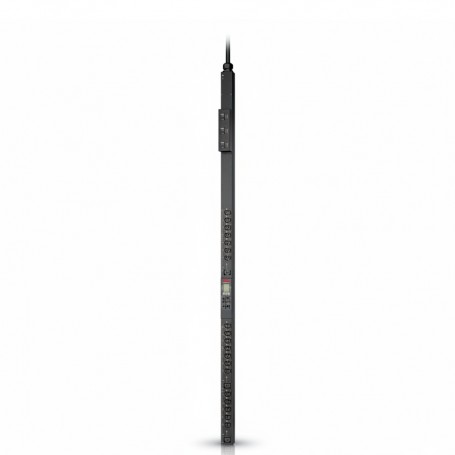

APC APDU10351ME NetShelter Rack PDU Advanced, Metered, 3-Phase, 8.6kW, 208V 30A View larger

APC APDU10351ME NetShelter Rack PDU Advanced Metered 3-Phase 8.6kW

New

×




-->
×




  • New

Detailed Specifications

APC APDU10351ME NetShelter Rack PDU Advanced, Metered, 3-Phase, 8.6kW, 208V 30A

Overview

The APC APDU10351ME is a high-efficiency metered rack PDU engineered for modern data centers and enterprise network racks that demand accurate power visibility and load management without outlet switching. Designed to deliver reliable power distribution, this unit supports a 3-phase 208 V input at 30 A, providing up to 8.6 kW (8,600 W / 8,600 VA) of total power capacity.Built for scalability, it offers 42 outlets, including both standard IEC and 4-in-1 receptacles that support C13, C15, C19, and C21 connectors—making it ideal for mixed equipment environments. The APDU10351ME enables real-time metering at the PDU level, allowing IT administrators to monitor load balance, optimize capacity, and prevent potential overloads.With its vertical 0U form factor, the unit mounts easily alongside racks, maximizing space utilization. It’s designed for continuous uptime and features a robust steel chassis, wide operating temperature range, and a simple interface for quick integration into rack power management systems. Whether used in colocation sites, enterprise data centers, or edge computing environments, the APDU10351ME ensures accurate metering, operational reliability, and long-term efficiency for mission-critical IT infrastructure.

Key Features

  • 3-phase 208 V input delivering 8.6 kW output capacity.

  • 42 outlets supporting both standard and 4-in-1 plug compatibility.

  • Precision metering provides ±1% accuracy for load and energy monitoring.

  • Vertical 0U design maximizes rack space and simplifies installation.

Technical Specifications

SpecificationDetail
Brand APC
Part Number APDU10351ME
Product Type Metered Rack PDU
Power Capacity 8.6 kW / 8,600 VA
Input Voltage 208 V AC, 3-phase
Input Current 30 A
Output Receptacles 42 total (standard + 4-in-1)
Input Connection Type IEC 60309 30 A, 3-phase plug
Frequency 50 / 60 Hz
Mounting Type Vertical (0U) rack mount
Dimensions (H × W × D) 1780 mm × 56 mm × 75 mm
Net Weight 9.5 kg
Material Powder-coated steel
Operating Temperature 0 °C to 45 °C
Certifications UL, CSA, RoHS
Warranty 3 years repair or replace
