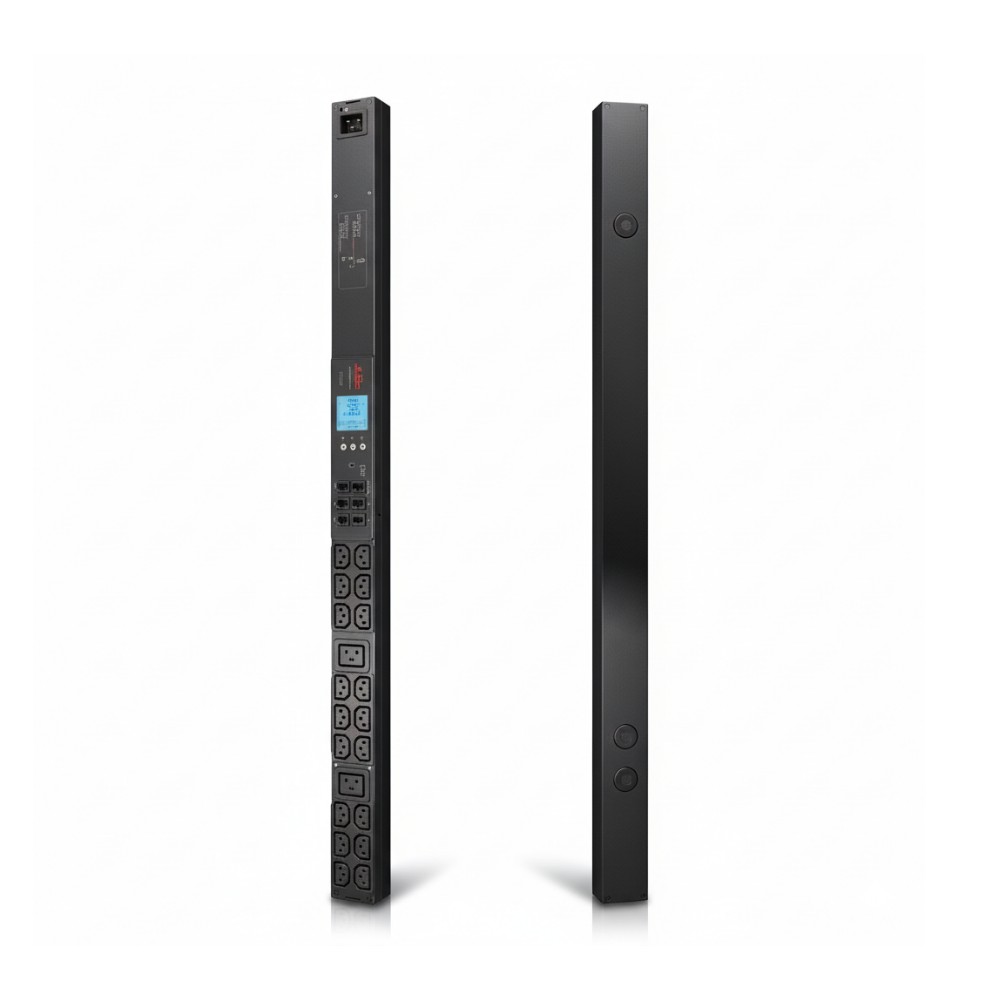

APC AP8459NA3 Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, View larger

APC AP8459NA3 Rack PDU 2G Metered by Outlet ZeroU 20A 208V

New

0U 20A Metered PDU
×




  • New

Detailed Specifications

Rack PDU 2G Metered by Outlet ZeroU 20A 208V (21) C13 & (3) C19

Overview

The APC AP8459NA3 is a second-generation, zero-U, metered-by-outlet rack PDU rated for 20A at 208V, delivering fine-grained power visibility and fault isolation across your rack. It provides 21 IEC C13 and 3 IEC C19 outlets, enabling you to monitor and manage power draw of individual devices in high-density environments. Real-time monitoring helps you detect and mitigate overloads, balance phases, and plan capacity more accurately. The vertical (0U) form factor installs alongside rack rails to preserve usable U-space for gear. With locking IEC outlet options, integrated sensors, and administrative controls, it is suited for data centers, colocation cages, and high-density network or compute racks.

Key Features

  • 21 C13 + 3 C19 outlets with per-outlet metering for accurate load distribution

  • 20A / 208V input supports dense rack deployments

  • Zero-U form factor mounts alongside rack posts without occupying U-space

  • Locking IEC outlets and integrated sensor port support security and environmental monitoring

Technical Specifications

SpecificationDetail
Brand APC
Part Number AP8459NA3
Product Type Metered-by-Outlet Rack PDU (0U)
Key Specification 1 Input rating: 20A, 208V AC
Key Specification 2 Outlets: 21 × IEC C13 + 3 × IEC C19
Key Specification 3 Dimensions: 72.01 in × 2.20 in × 2.01 in
Management Remote metering per outlet; local and network control capabilities
Power Requirements 208V AC single-phase input
Dimensions & Weight 1829 mm × 56 mm × 51 mm; approx. 14.90 lb (6.76 kg)
Warranty Manufacturer standard (confirm region)
