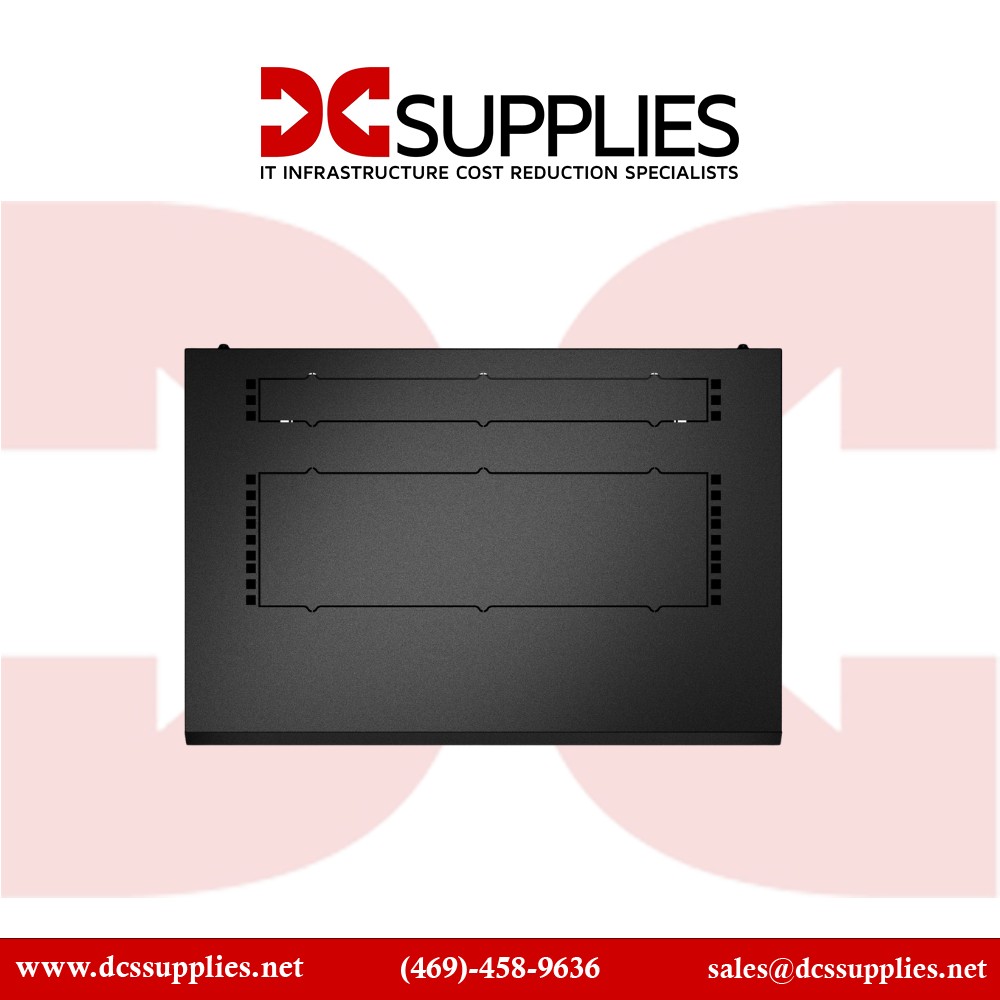

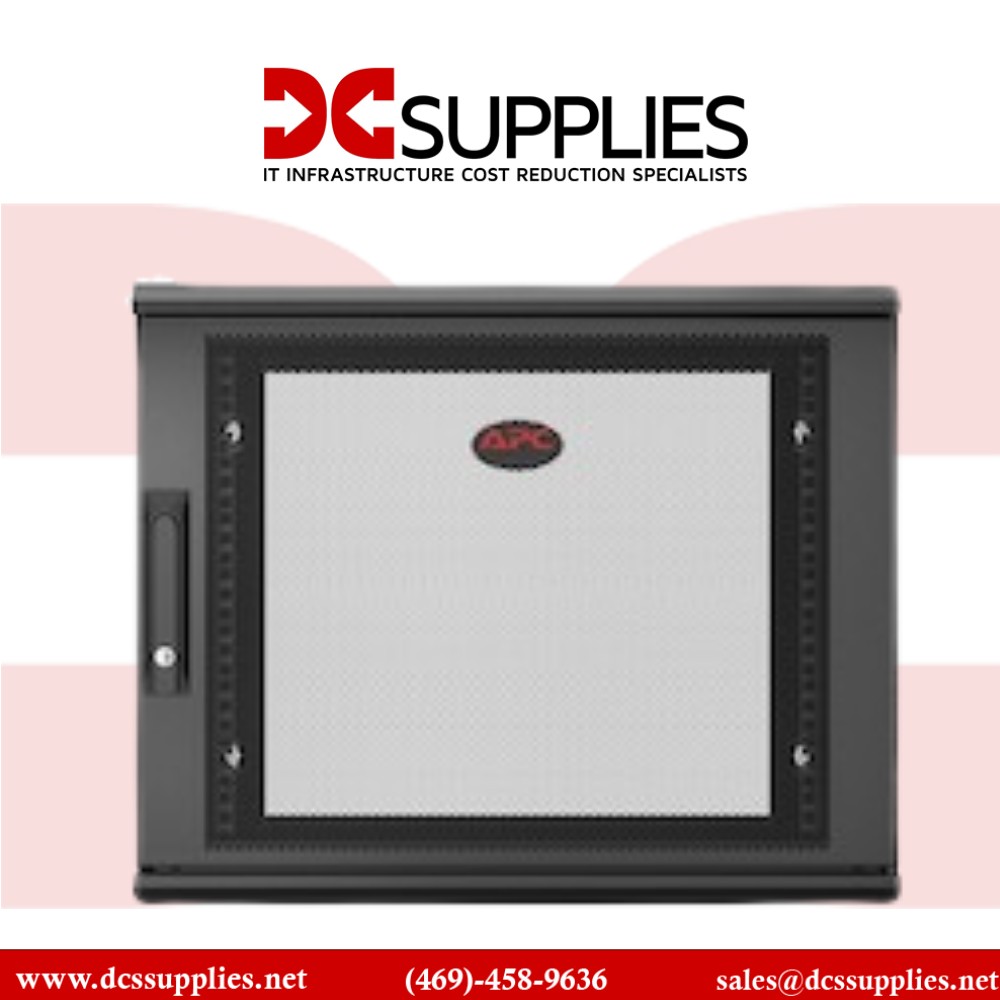

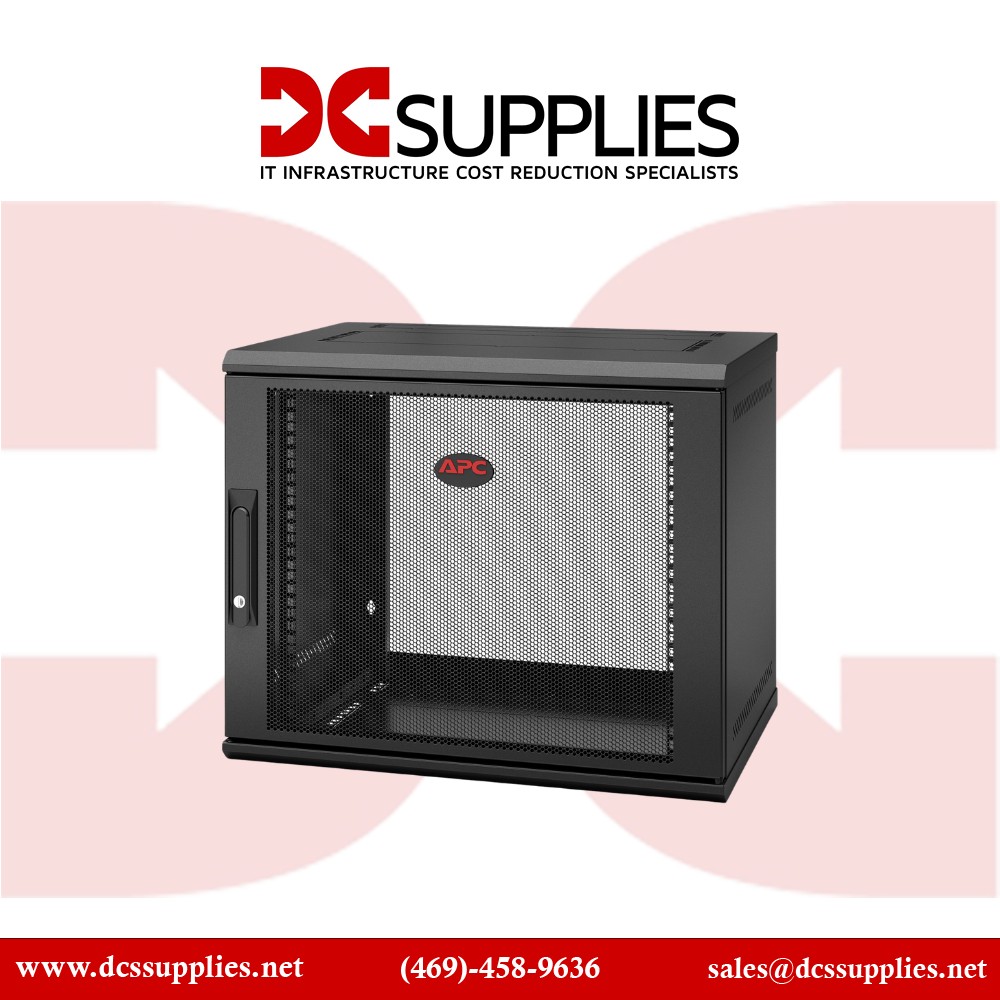

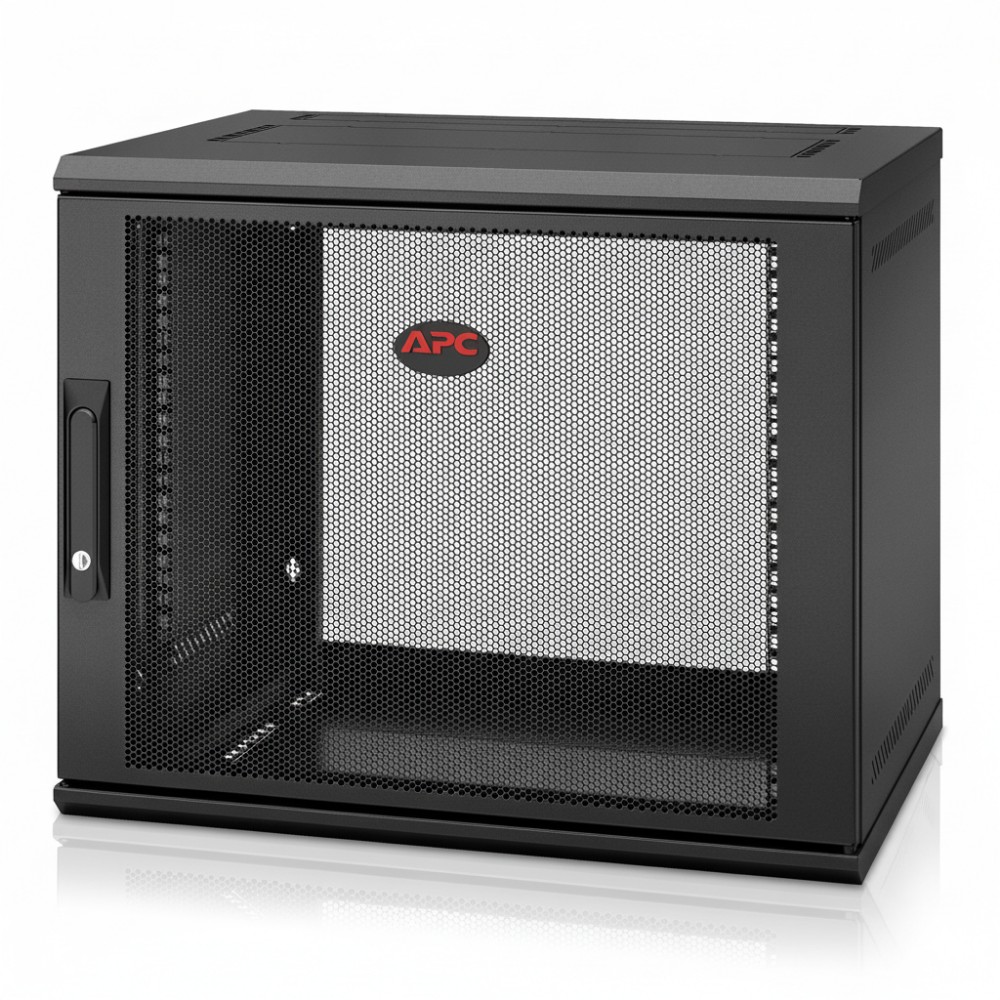

APC AR109SH4 NetShelter WX 9U Single-Hinged Wall-Mount Enclosure View larger
Previous Next

APC AR109SH4 NetShelter WX Rack Enclosure cabinet 9U Single Hinged Switch

New

9U wall-mount rack cabinet for secure network and server installations
×




  • New

Detailed Specifications

APC

AR109SH4

NetShelter WX 9U Wall-Mount Rack Enclosure (Single-Hinged, Switch Depth)

The APC AR109SH4 NetShelter WX is a compact, full-featured 9U wall-mount rack enclosure engineered for edge computing, retail deployments, branch offices, and healthcare facilities. Designed to conserve floor space while delivering enterprise-grade features, this rack comes fully assembled and shock-packaged for swift deployment. Its reversible, single-hinged perforated front door provides security and airflow control, making it an excellent solution for networking, server, and telecommunications equipment in space-constrained environments.

Features

Mountable directly onto walls with included hardware, the AR109SH4 supports up to 200 lb (91 kg) of fully loaded equipment and is compliant with EIA‑310 standards, ensuring compatibility with all 19-inch devices. With cable knockouts, built-in accessory channels, and optional enhancements like fan trays or security upgrades, this compact cabinet brings versatility and convenience to critical edge installations.

Advanced Options

Built for environments where compact and reliable infrastructure is essential, the AR109SH4 wall-mount cabinet ships fully assembled to simplify site setup. Its welded steel frame provides robust support, while the single-hinged, reversible door allows flexible installation configurations based on space constraints

Product Key Features

  • Full 9U rack space in a 1.6 ft² wall-mount cabinet

  • Ships fully assembled and shock-packaged

  • Reversible, single-hinged perforated front door

  • Supports up to 200 lb (91 kg) of equipment

  • 12.95” usable depth, ventilated design

  • Top/bottom 0.5U accessory knockouts

  • EIA‑310 compliant, RoHS/REACH certified

Reliability & Performance

Built with APC’s trusted NetShelter WX chassis, the AR109SH4 ensures durability and operational readiness. Its welded steel construction and robust mounting hardware maintain EIA‑310 compliance under load and during vibration. Passive ventilation through perforated door and side vents provides efficient airflow, suitable for standard networking gear

Key Features :

  • 9U, 19″ EIA‑310 standard wall-mount cabinet

  • Fully assembled, shock-protected delivery

  • Reversible, locking perforated door

  • 200 lb (91 kg) load rating

  • 12.95″ usable depth, ventilated design

  • Top/bottom accessory knockouts (0.5U each)

  • Grounding studs and accessory channels

  • Optional fan/security upgrades compatible

Specifications :

SpecificationDetails
Model Number AR109SH4
Product Type Wall-Mount Rack Enclosure (NetShelter WX)
Rack Units 9U
Mounting Standard 19″ EIA‑310
External Dimensions 19.09″ H × 23.62″ W × 15.75″ D (485 × 600 × 400 mm)
Usable Equipment Depth 12.95″ (329 mm)
Load Capacity 200 lb (91 kg) static/dynamic
Net Weight 28.7 lb (13.0 kg)
Construction Welded steel frame, perforated door
Door Style Single-hinged, reversible, reversible, lockable
Ventilation Perforated front; side vents
Accessory Knockouts 0.5U top and bottom for fan or cables
Accessory Channels Zero-U vertical for PDUs or cable organizers
Compliance UL 2416, RoHS/REACH, IP20
Grounding Included grounding studs
Warranty 5-Year APC repair-or-replace
