APC AP5808 1U Rack Console 17inch Black View larger

APC AP5808 1U Rack Console 17inch Black

New

In Stock

17″ rack LCD console + 8-port analog KVM
×




$1,939.00

  • New

Detailed Specifications

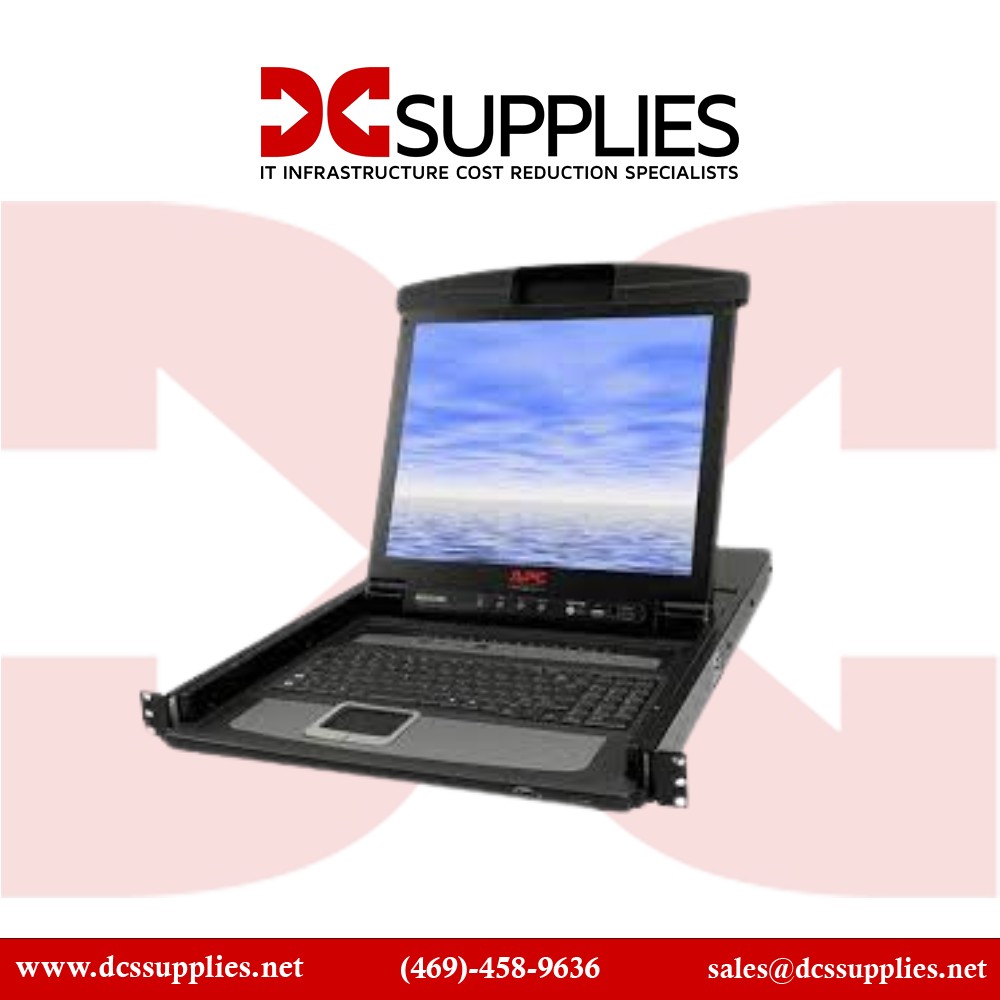

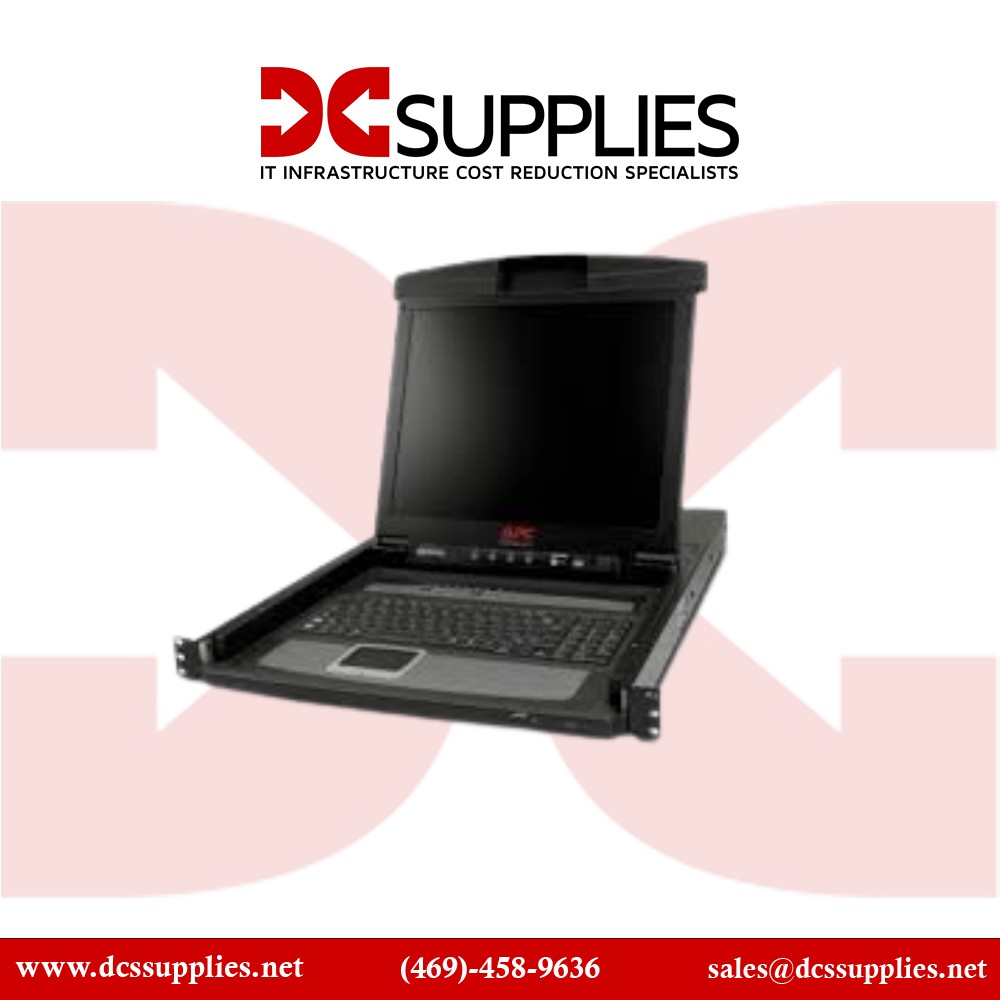

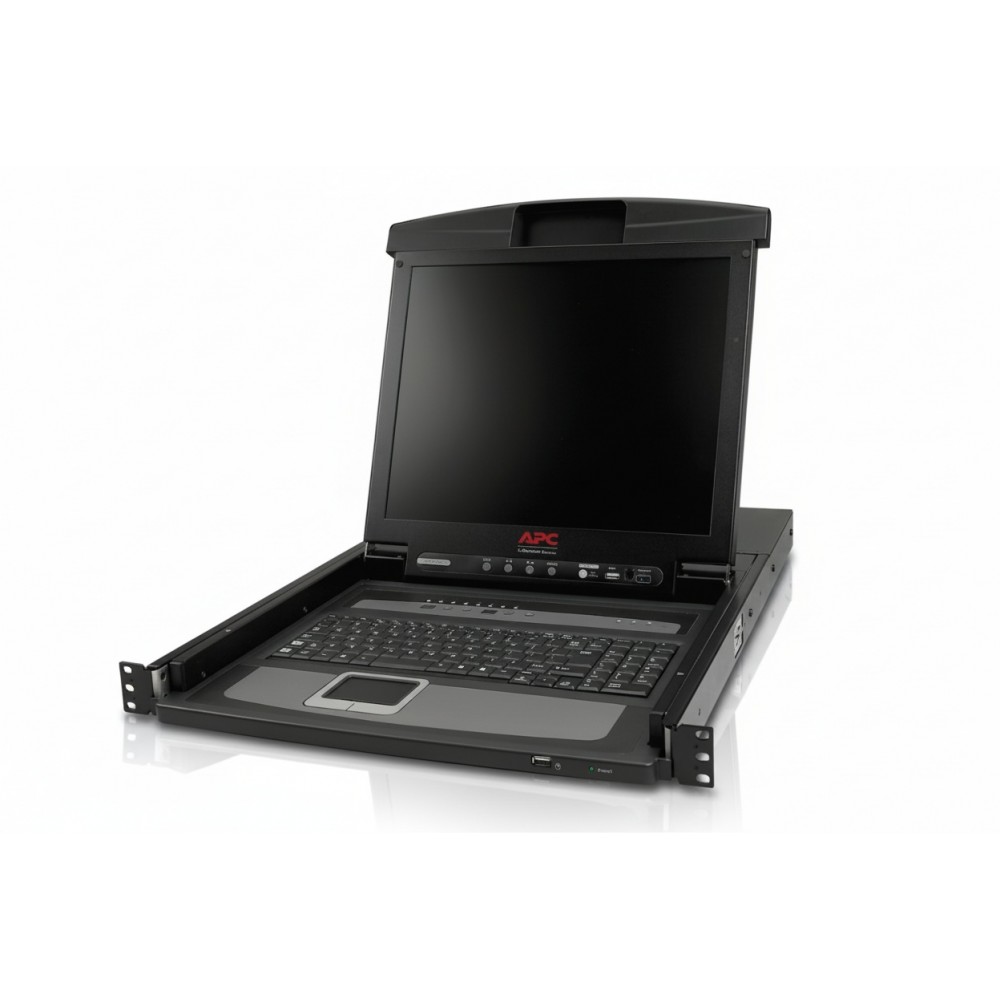

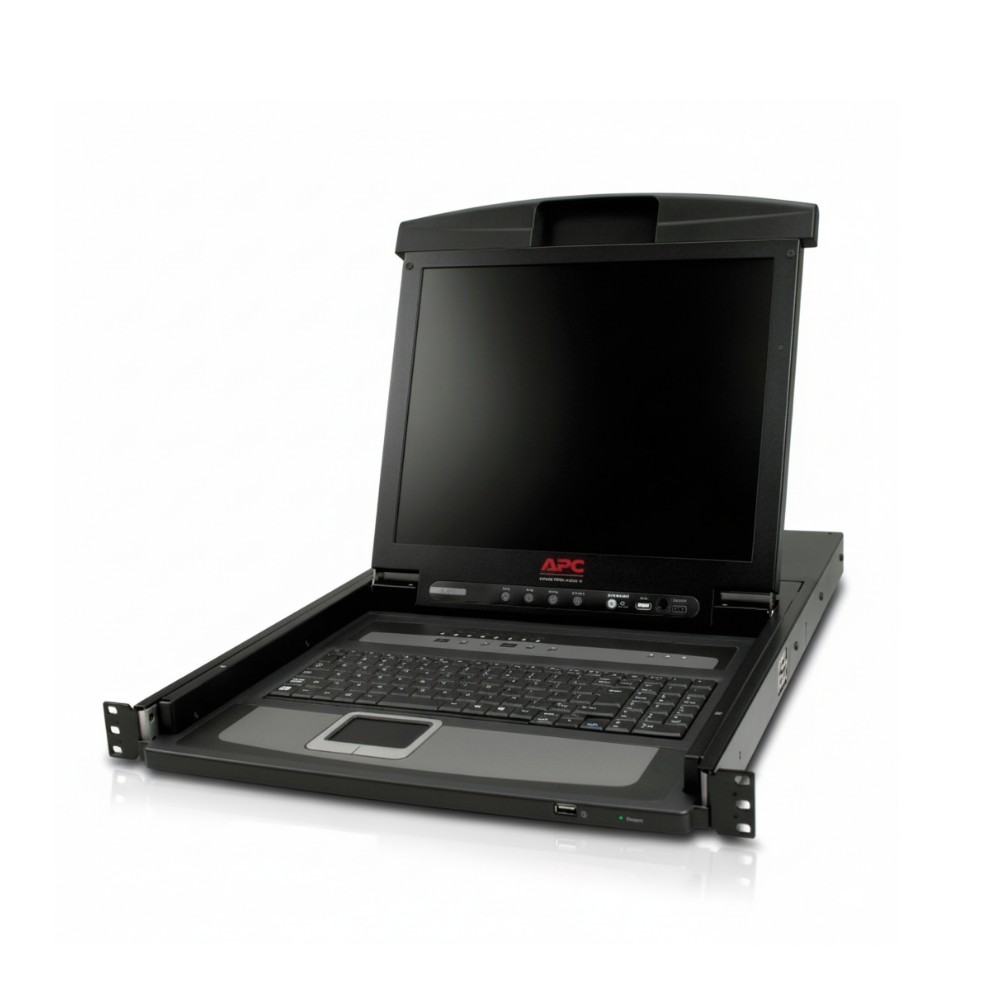

APC AP5808 – 17″ Rack LCD KVM Console

Overview :

The APC AP5808 is a 1U rack-mount console integrating a 17″ LCD display and an 8-port analog KVM switch, designed for data center use. It allows administrators to manage multiple servers from a single console without additional peripherals. It fits in standard server racks (1U depth) in data centers, server rooms, and edge compute zones. It supports cascade chaining of further KVM switches for expanded deployment.

Key Features :

  • 17″ (43.2 cm) LCD built into slim 1U form factor

  • Integrated 8 SPHD-15 KVM ports for direct server access

  • USB interface with PS/2 keyboard/mouse emulation

  • Cascade (chain-out) support to expand up to 256 servers

Specifications

SpecificationValue
Brand APC
Part Number AP5808
Product Type Rack LCD KVM Console
Display 17″ LCD (43.2 cm)
Resolution (max) 1280 × 1024 @ 75 Hz

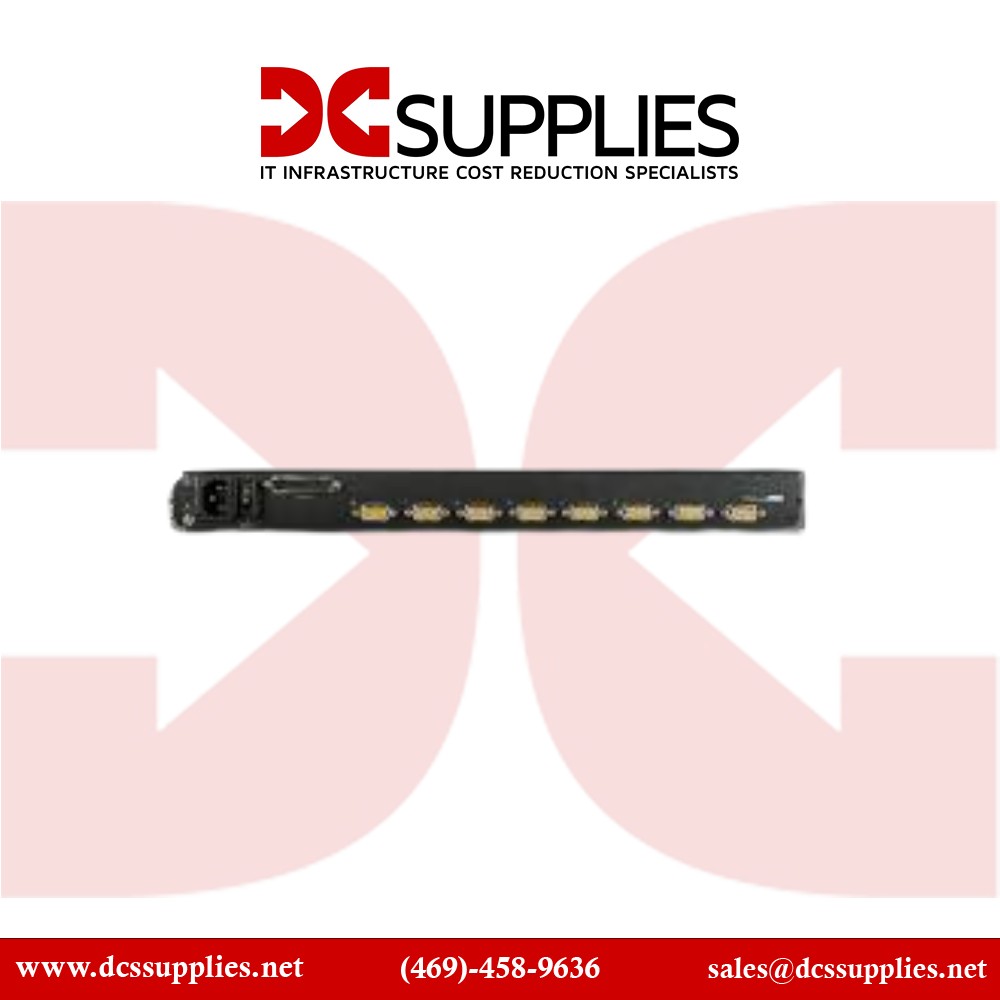

KVM Ports 8 × SPHD-15 (female)
Interface USB + PS/2 emulation
Cascade / Chain-out 1 × DB-25 for chaining
Input Power 100–240 VAC, 50/60 Hz, ~1 A
Power Consumption 27.5 W (120 V) / 28 W (230 V)
Operating Temp 0 to 40 °C
Dimensions (W × D × H) 483 × 711 × 43 mm
Weight ~13.77 kg
Certifications cUL, CE, FCC, UL, VDE, RoHS, CCC, GOST
