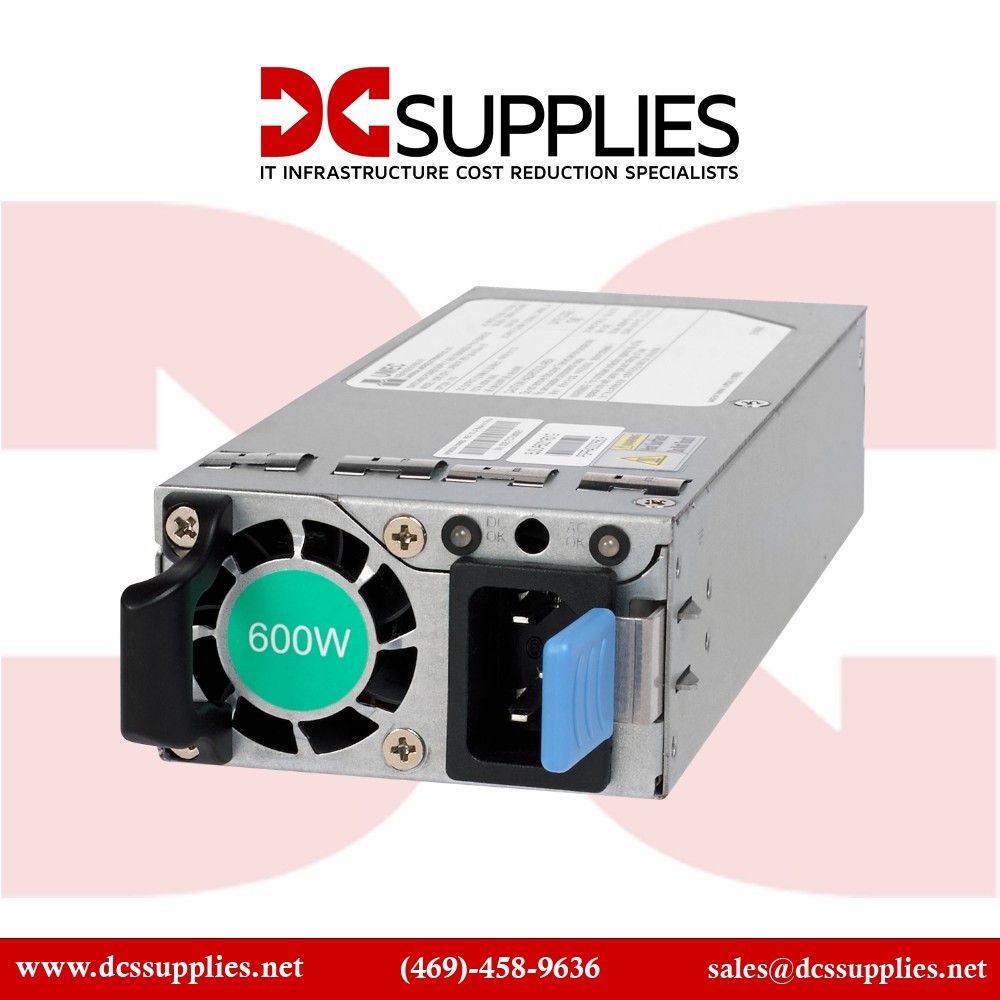

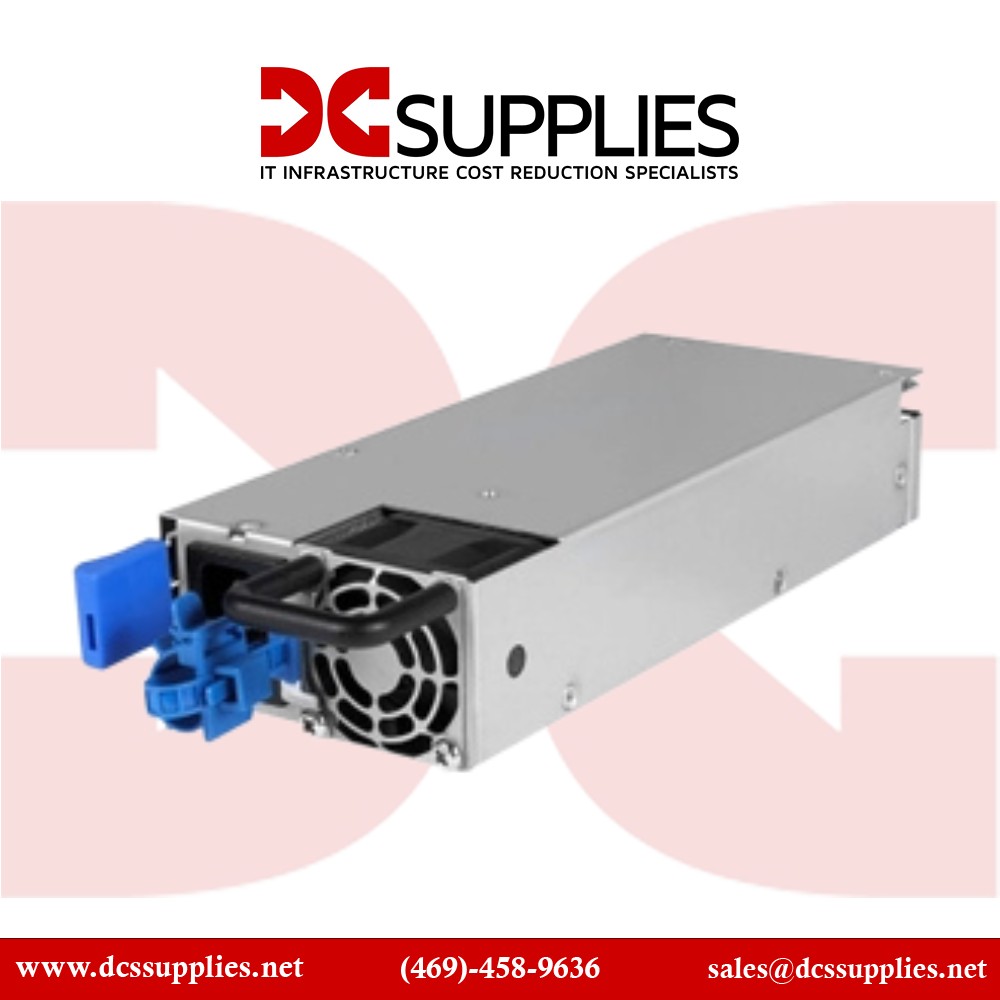

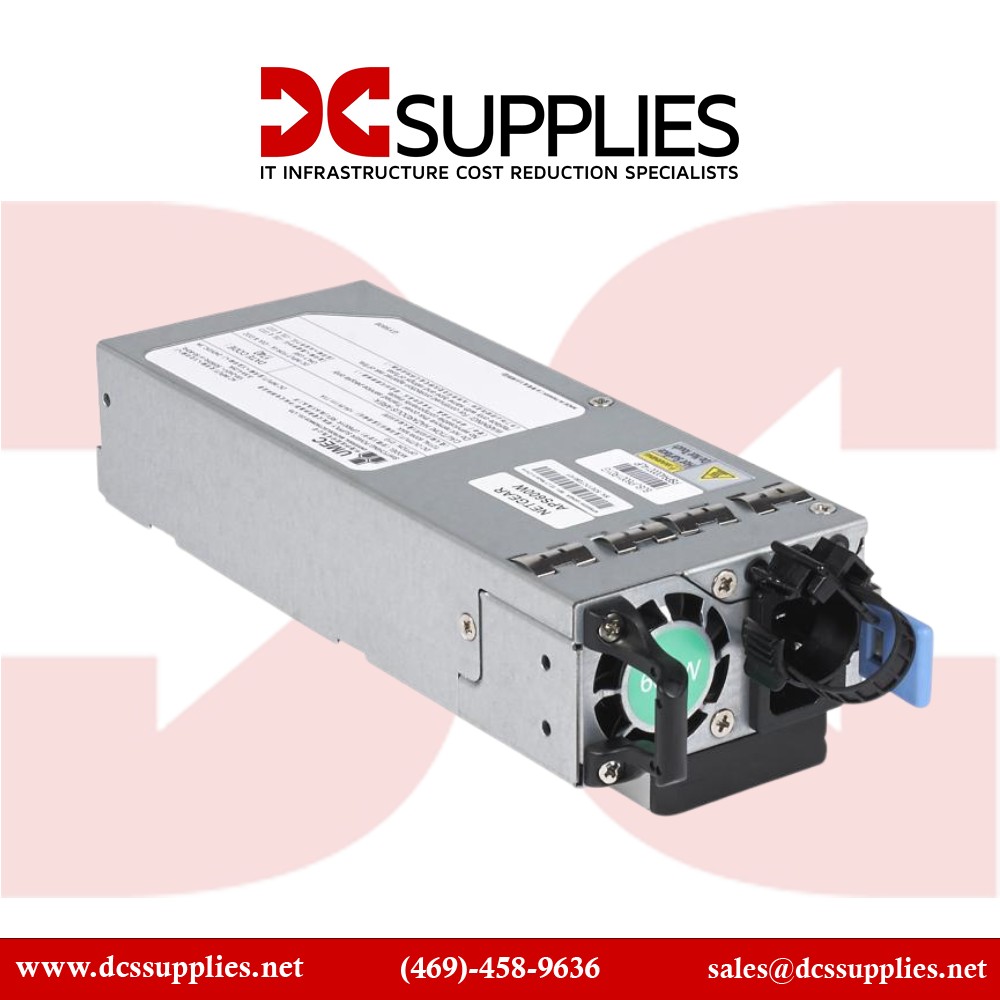

NETGEAR APS600W-100NES Modular Power Supply Unit View larger
Previous Next

NETGEAR APS600W-100NES Modular Power Supply Unit

New

Netgear Power Supply - 120 V AC, 230 V AC Input - 600 W
×




  • New

Detailed Specifications

NETGEAR APS600W-100NES

600W Modular Power Supply Unit – IEC C14, 110–240 V AC Input

The NETGEAR APS600W‑100NES is a 600 W modular power supply unit designed for high-performance NETGEAR M-series switches. Its hot-swappable design, wide input range, and heavy-duty output make it a key component for mission-critical network infrastructure.

Features

Compatible with NETGEAR’s M4300 family of modular managed switches—such as the 16X and 96X series—the APS600W‑100NES delivers up to 600 W AC (110–240 V input) through a standard IEC C14 connector

Advanced Options

The modular, hot-swappable design allows for seamless insertion or replacement without disrupting network operation. These PSUs can operate in parallel, enabling redundancy or shared power budgets for PoE deployments .

Product Key Features

  •  Delivers up to 600 W power for modular switches

  •  Standard IEC C14 input with 110–240 V AC wide-range compatibility

  •  Hot-swappable design enables redundancy and easy replacement

  •  Compatible with NETGEAR M4300-16X and M4300-96X non‑PoE switches

  •  Enables dual‑PSU sharing for extended reliability

  •  Rugged internal module form factor for rack-mounted equipment

Reliability & Performance

Designed for enterprise-grade environments, this unit operates silently inside the switch chassis, ensuring efficient cooling and low noise. Built with high-grade components, it can sustain uninterrupted service under full load. The 5-year hardware warranty underscores NETGEAR’s confidence in its long-term reliability.

Key Features :

  • Up to 600 W power output

  • IEC C14 AC input (110–240 V)

  • Hot-swappable for redundancy and maintenance

  • Compatible with M4300-16X and -96X switch families

  • Enables redundant or shared PSU configurations

  • Internal module form factor for rack-mounted systems

SpecificationDetails
Model Number APS600W‑100NES
Product Type Modular Power Supply Unit
Output Power 600 W max
AC Input Voltage 110–240 V, 50/60 Hz
Input Connector IEC C14
Compatibility NETGEAR M4300-16X, M4300-96X (non-PoE) switches
Form Factor Internal modular chassis-mounted unit
Hot-Swappable Yes
Redundancy Support Dual PSU for redundancy/PoE sharing
Operating Environment Rack-mounted switch internal module
Warranty 5-Year Limited Hardware Warranty
Dimensions (est.) ~10.4″ × 9.5″ × 3.1″
Weight (est.) ~3.66 lb
