Netgear PL1000-100PAS Powerline 1000 Network Adapter Kit View larger
Previous Next

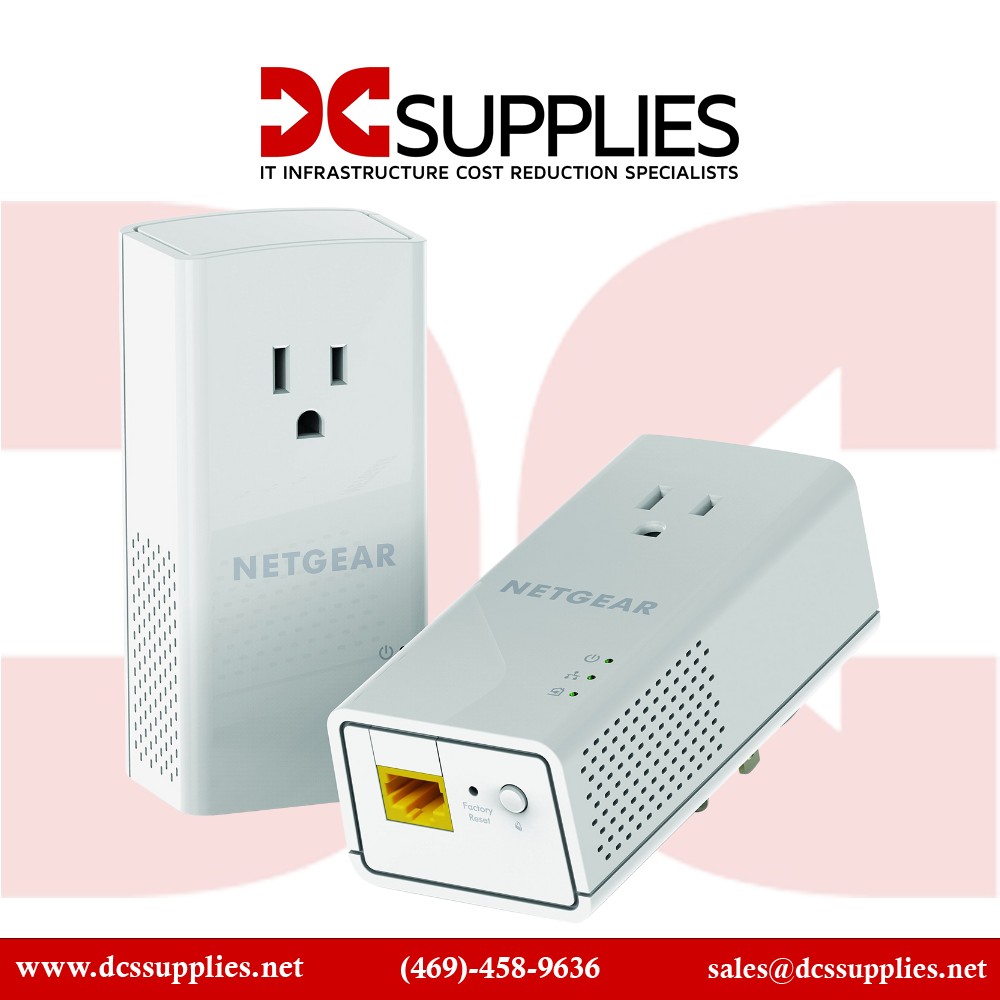

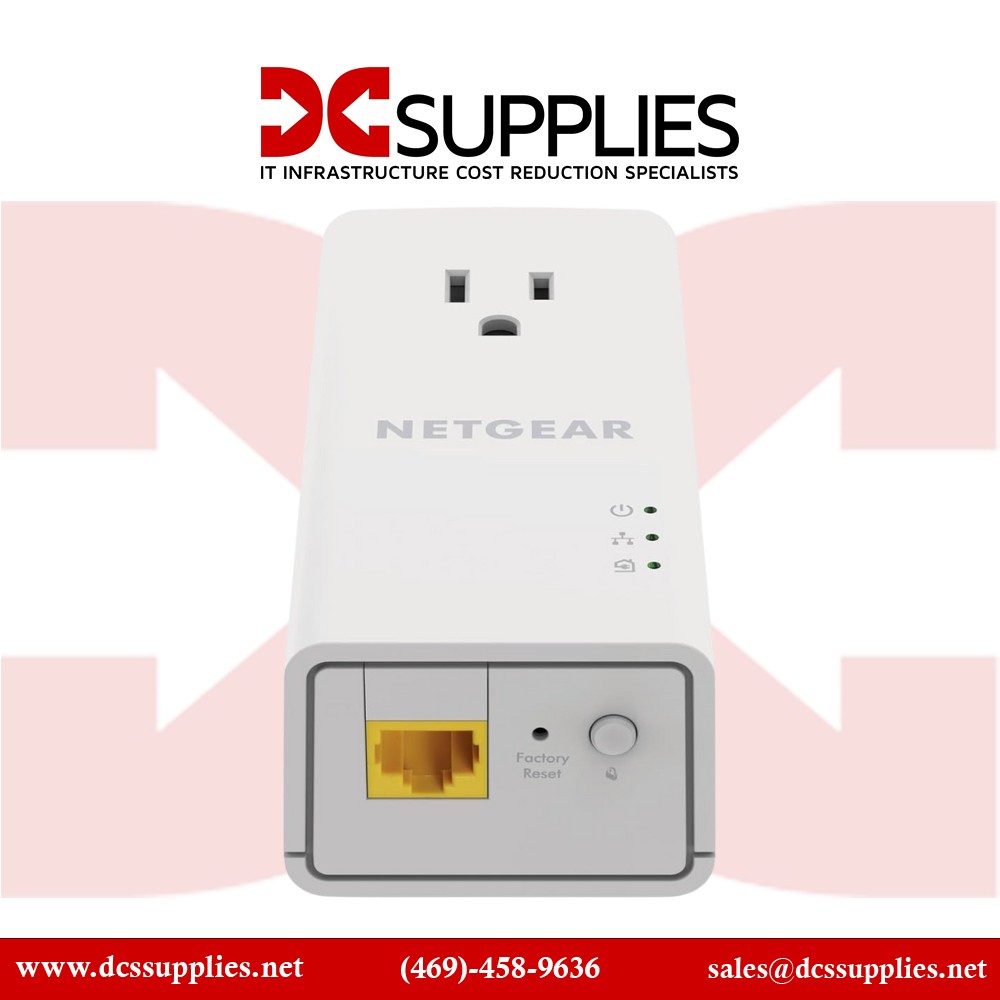

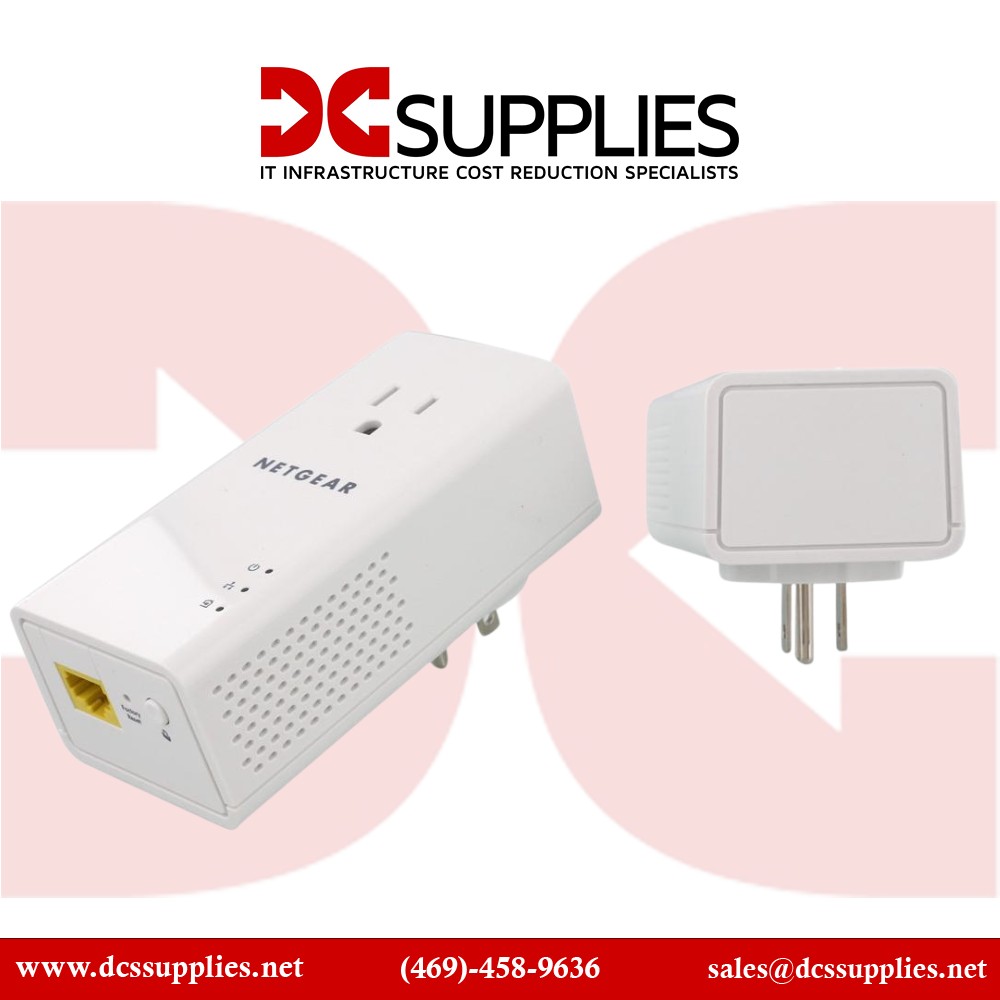

Netgear PL1000-100PAS Powerline 1000 Network Adapter Kit

New

Netgear Adapter Up to 5,832 sq ft (500 sq m) Coverage
×




  • New

Detailed Specifications

Netgear PL1000-100PAS

Powerline 1000 Network Adapter Kit formatted to your exact structure:

The NETGEAR PL1000 Network Adapter Kit instantly extends wired connectivity across your home using existing electrical wiring.No need for new cabling—just plug in the adapters, pair securely, and enjoy gigabit-speed Ethernet at devices like gaming consoles and smart TVs.

Features

Each PL1000 adapter plugs into a wall outlet and includes a Gigabit Ethernet port. One adapter connects to your router, while the other can be placed in any room with devices that require reliable wired access. With HomePlug AV2 support, the kit offers high-speed data transfer over existing home wiring without needing new cables

Advanced Options

The built-in Pick‑a‑Plug LED guides you to the outlet with the strongest signal and the Push‑and‑Secure button adds 128‑bit AES encryption in seconds. No console, CD, or software install needed—expand the network with up to eight adapters as your needs grow.

Product Key Features

  •  Up to 1000 Mbps throughput over HomePlug AV2 powerline network

  •  2 × Gigabit Ethernet ports (one per adapter) for full-speed wired connections

  •  Plug‑and‑play installation—no software or configuration needed

  •  Push-and-Secure AES encryption for secure local networking

  • Pick‑a‑Plug LED helps you find the best power outlet for optimal performance

  •  Energy‑saving mode (<0.5 W standby) automates power reduction when idle

Reliability & Performance

Official specs state up to 1000 Mbps theoretical speed, with real-world performance typically around 80 Mbps plus—enough for smooth 4K streaming and low-latency gaming. Energy-efficient electronics automatically drop into low-power mode when idle, making the kit both eco- and budget-friendly

Key Features :

  • HomePlug AV2 powerline at up to 1000 Mbps

  • Two Gigabit Ethernet ports (one per adapter)

  • Plug‑and‑play: no installation or software

  • 128‑bit AES encryption via Push-and‑Secure button

  • Pick‑a‑Plug LED indicates network quality

  • Supports up to 8 adapters

  • Energy-efficient idle mode (< 0.5 W)

SpecificationDetail
Model Number PL1000‑100PAS
Product Type HomePlug AV2 Gigabit Powerline Adapter Kit (2 × units)
Powerline Standard HomePlug AV2, IEEE 1901, IEEE 802.3 compliant
Theoretical Speed Up to 1000 Mbps powerline
Real‑World Throughput Typically ≥ 80 Mbps
Ethernet Ports 2 × 10/100/1000 Mbps RJ‑45 (one per adapter)
Encryption 128‑bit AES via Push‑and‑Secure button
Pick‑a‑Plug Indicator LED shows link quality (Green >80 Mbps, Amber >50 Mbps, Red <50 mbps="" td="">
Number of Adapters Expandable up to 8 adapters
Power Consumption ~3.73 W active; <0.5 W idle
Power Input 100–240 V AC, 0.1 A max
Dimensions (L×W×H) 100 × 59 × 35.9 mm (4.5 × 2.3 × 1.4 in)
Weight 126 g (0.28 lb)
Coverage Area Up to 500 m² / 5,832 ft² theoretical
Warranty 1‑Year limited hardware warranty
System Requirements RJ‑45 Ethernet port, existing electrical wiring
