HPE Aruba JW700A Microsemi Powerdsine Pd-9001Go Poe Injector 30 Watt View larger
Previous Next

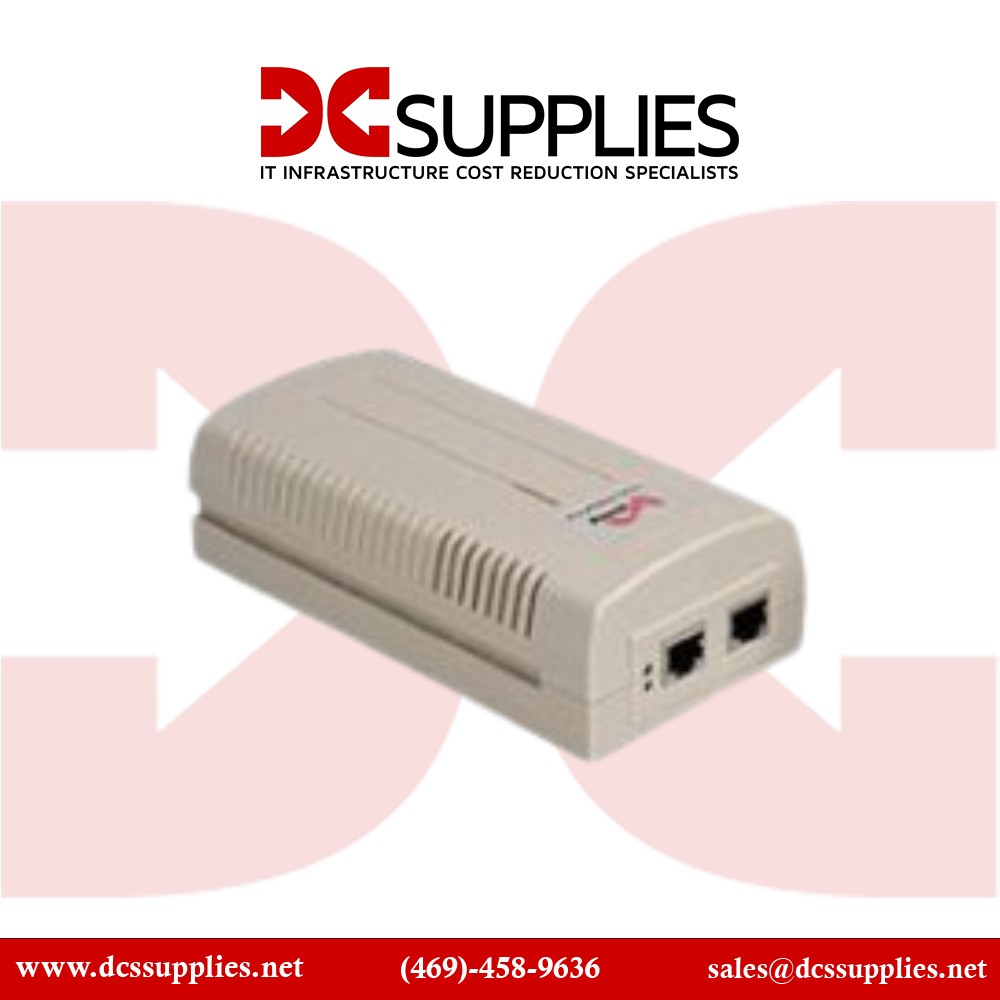

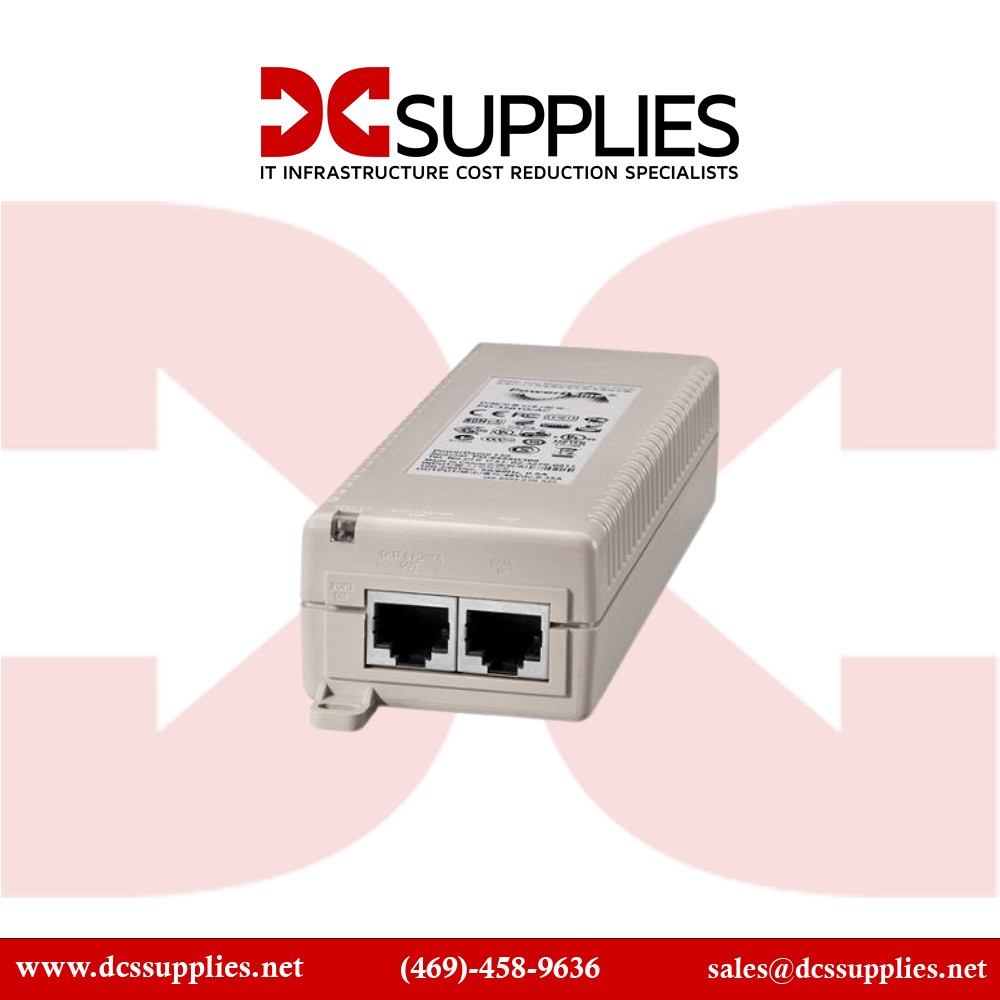

HPE Aruba JW700A Microsemi Powerdsine Pd-9001Go Poe Injector 30 Watt

New

HPE Aruba Microsemi Powerdsine Pd-9001Go Poe Injector 30 Watt
×




  • New

Detailed Specifications

HPE JW700A

Aruba JW700A Microsemi PowerDsine PD‑9001GO PoE Injector – 30 W 802.3at Midspan

The HPE Aruba JW700A (aka PD‑9001GO) is a dependable 30 W PoE midspan injector, purpose-built for powering HPE Aruba outdoor and instant access points in locations without PoE-capable switches. Its surge protection and wide compatibility make it an ideal choice for robust, flexible network deployments.

Features

This injector draws from a standard 100–240 VAC power source to deliver PoE+ over Ethernet, supporting Gigabit speeds for seamless data and power delivery. Its rugged housing handles Extended Operating Conditions while compact size eases installation on poles, walls, or equipment enclosures.

Advanced Options

With built-in surge protection, it ensures APs are shielded against transient electrical events Compatible with a broad range of devices including Aruba AP‑228, 274, 277, 318, 365/7, 374/5, 377, 387 and Instant On IAP‑228/274/275/277 models, it offers networking flexibility across indoor and outdoor deployments.

Product Key Features

    •  Supplies up to 30 W of PoE+ power via single RJ‑45 output

    •  Supports 10/100/1000 Mbps connectivity over Gigabit Ethernet input

    •  Compact, rugged outdoor-capable external injector

    •  Integrated surge protection safeguarding attached devices

    •  Plug-and-play simplicity—no configuration needed

    • Compatible with numerous HPE Aruba outdoor/instant APs

Reliability & Performance

Designed for consistent outdoor operation, the JW700A performs reliably between 0–40 °C and 10–90 % humidity . Its full compliance with UL, FCC, EN, RoHS, and WEEE standards guarantees safe, high-integrity performance in commercial environments The injector’s plug-and-play design simplifies network deployment by enabling both data and power delivery over a single Ethernet cable.

Key Features :

  • 30 W maximum PoE+ output

  • 10/100/1000 Mbps Ethernet input/output

  • Far-end surge protection

  • External, compact form factor

  • 100–240 VAC input; 50/60 Hz frequency

  • Supports HPE Aruba rugged and Instant On APs

SpecificationDetails
Model Number JW700A (PD‑9001GO‑AC/NA)
Product Type PoE Midspan Injector (external)
Input Voltage 100–240 VAC, 50/60 Hz
Power Output Up to 30 W PoE+
Data Rate 10/100/1000 Mbps
Ethernet Ports 1 × Input/Output RJ‑45
Surge Protection Integrated surge suppressor
Operating Temp 0 °C to 40 °C
Humidity Range 10 % to 90 % (non-condensing)
Compatibility Aruba AP‑228/274/277/318/365/367/374/375/377/387, IAP‑228/274/275/277
Certifications UL, FCC Part 15B, EN55024/22, RoHS, WEEE
Dimensions (W×D×H) ~8.8 × 16.6 × 5.1 cm
Weight ~350 g
