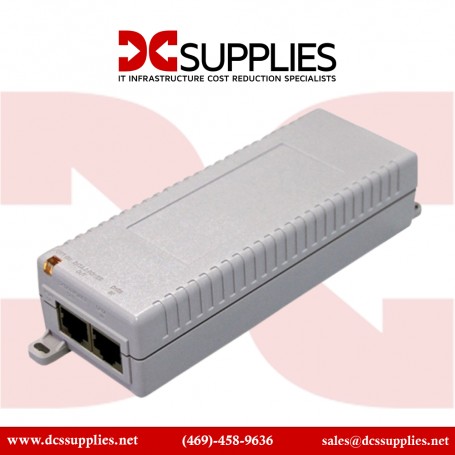

HPE Aruba R6P68A AP-POE-AFGE 1-Port GbE midspan PoE injector 15.4 Watt

New

HPE Aruba R6P68A Ap-PoE-Afge 1P...

×




  • New

Detailed Specifications

HPE R6P68A

Aruba R6P68A AP-POE-AFGE 1-Port GbE Midspan PoE Injector – 15.4W IEEE 802.3af

The HPE Aruba R6P68A AP-POE-AFGE is a compact and efficient 1-Port Gigabit Ethernet midspan PoE injector, ideal for supplying both power and data to Aruba access points or other 802.3af-compliant devices. It simplifies deployments by eliminating the need for separate power lines, making it perfect for streamlined indoor installations.

Features

Designed for small to medium-sized network environments, the R6P68A provides up to 15.4 watts of PoE power to a single device using standard Cat5e or higher Ethernet cabling. It ensures reliable power delivery and high-speed connectivity over one cable, ideal for ceiling-mounted access points or remote network devices where electrical outlets are not readily accessible.

Advanced Options

Its IEEE 802.3af compliance guarantees interoperability with a wide range of PoE-enabled devices, while built-in protection mechanisms safeguard connected equipment against overload, short circuits, and voltage spikes. With its plug-and-play installation, it integrates seamlessly into existing networks with no software or configuration required.

Product Key Features

    • 1-Port Gigabit Ethernet PoE Injector for Aruba APs

    • Delivers 15.4W PoE power per IEEE 802.3af standard

    • Supports data and power over a single Ethernet cable

    • Compatible with Aruba access points and IP devices

    • Integrated over-voltage and short-circuit protection

    • Plug-and-play simplicity – no configuration needed

Reliability & Performance

Built for long-term durability, the R6P68A injector features robust electrical protection, efficient thermal management, and low power dissipation. It is an ideal choice for powering Aruba APs in office, retail, or campus environments. Its Gigabit Ethernet throughput ensures that data performance is not compromised while delivering stable PoE power.

Key Features :

  • Midspan 1-port Gigabit Ethernet PoE injector

  • Delivers up to 15.4W power output (IEEE 802.3af)

  • Supports data and power transmission on one cable

  • Compact form factor for indoor installations

  • Compatible with Aruba APs and other PoE devices

  • Built-in surge and overload protection

SpecificationDetails
Model Number R6P68A
Product Type 1-Port Midspan PoE Injector
PoE Standard IEEE 802.3af (PoE)
Power Output 15.4 W (per port)
Data Rate 10/100/1000 Mbps (Gigabit Ethernet)
Number of Ports 1× PoE Out, 1× Data In
Input Voltage 100–240 V AC, 50–60 Hz
Output Voltage 48 V DC
Mounting Type Desktop or Wall Mount
Dimensions 5.5 × 2.5 × 1.4 in (140 × 64 × 35 mm)
Weight ~0.6 lb (270 g)
Protection Features OVP, SCP, OCP, OTP
