Detailed Specifications

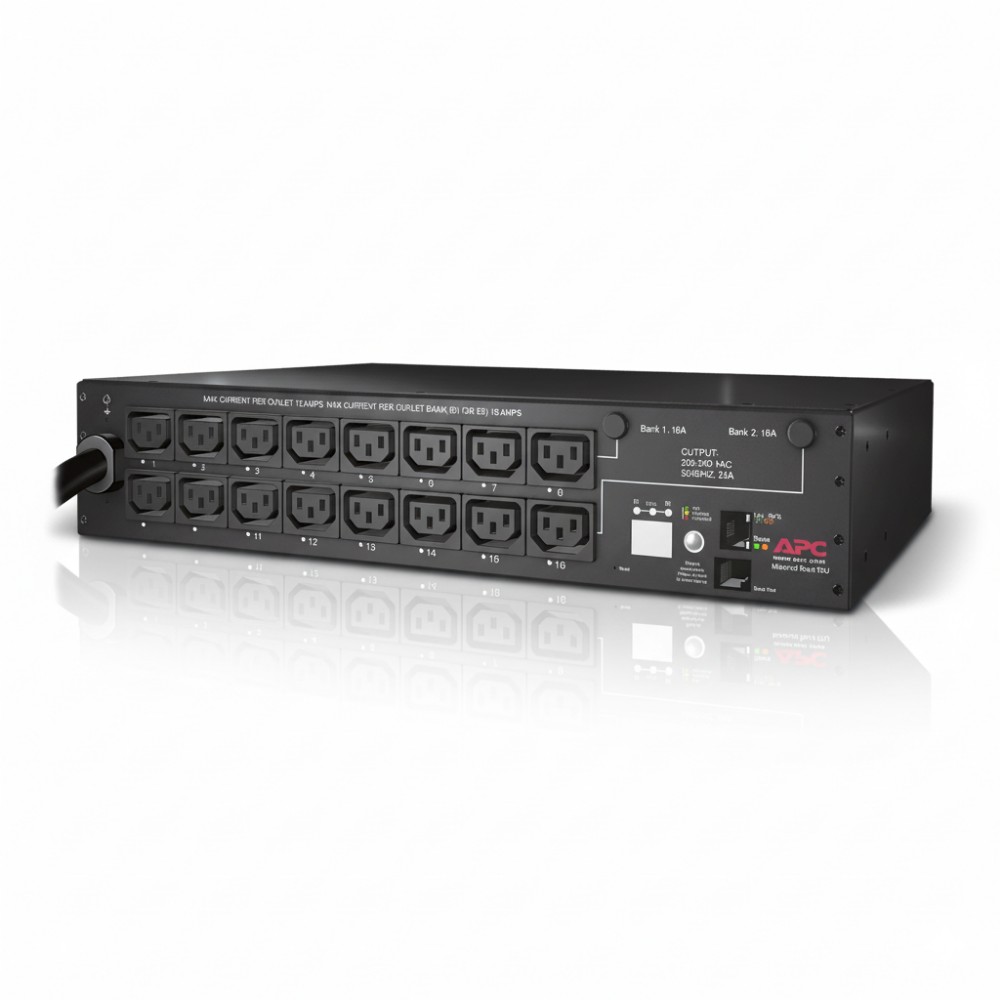

APC AP7911B Rack PDU Switched 2U 30A 208V 16 C13
Overview :
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/ humidity sensor port, and locking IEC receptacles
- The APC Switched Rack PDU AP7911B comes with hardware for easy rack installation
- Rack-mountable power distribution unit has 16 outlets total in two power banks
- Covered by a 2-year repair or replace warranty from APC
- Each outlet can be deactivated or activated individually to prevent overloads
- 16A maximum current per bank; 12A maximum current per outlet
Specifications :
| Product Name |
Rack PDU Switched 2U 30A 208V 16 C13 |
| Manufacturer Part Number |
AP7911B |
| Product Type |
PDU |
| Receptacle Type |
IEC 60320 C13 |
| PDU Type |
Switched |
| Cord Length |
12 ft |
| Rack Height |
2U |
| Plug / Connector Type |
NEMA L6-30P |
| Input Voltage Range |
200 V AC - 230 V AC |
| Input Current |
30 A |
| Input Voltage |
200 V AC |
| Output Voltage |
208 V AC |
| Additional Warranty Information |
2 years repair or replace |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Receptacle Detail |
16 x IEC 60320 C13 |
| Plug / Connector Detail |
1 x NEMA L6-30P |
| Height |
3.5" |
| Width |
17.5" |
| Depth |
10" |
| Mount Type |
Rack-mountable |
| Limited Warranty |
2 Year |
| Mercury Free |
Yes |
| Certifications & Standards |
cUL Listed |
