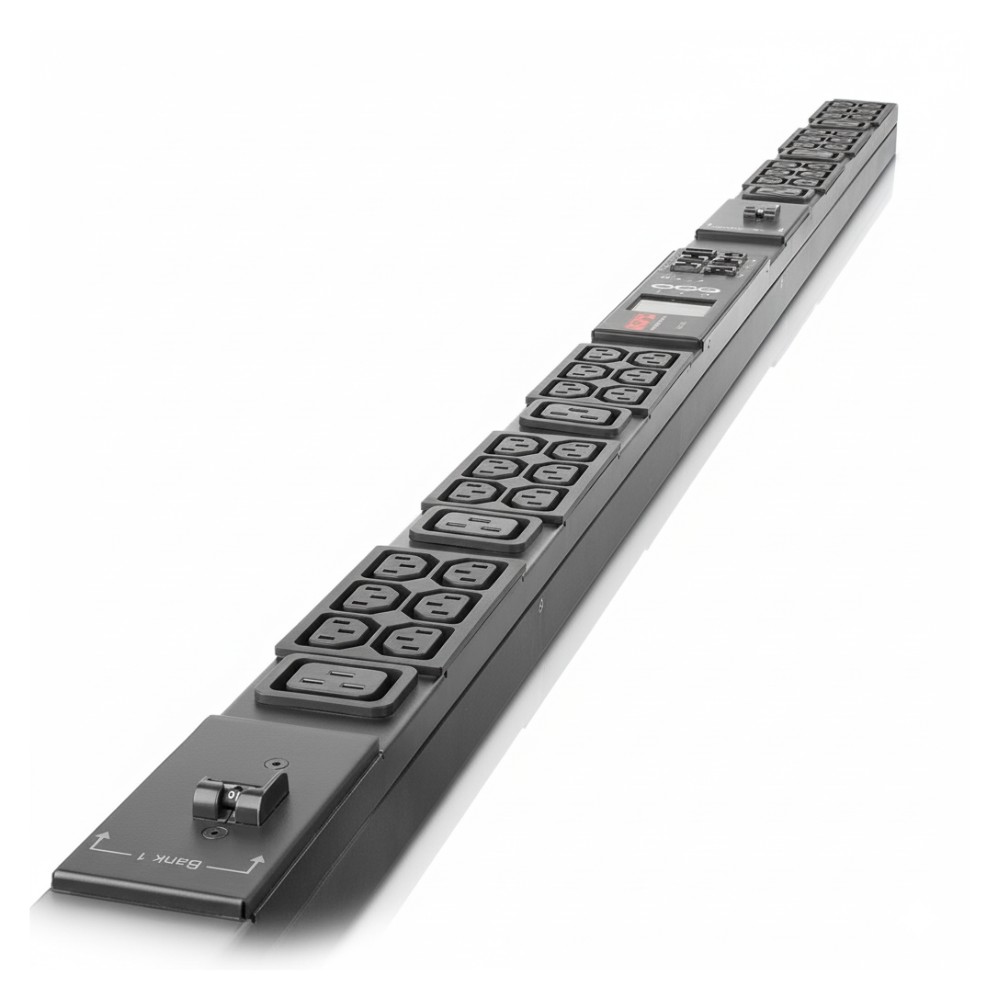

APC AP8886 Metered Rack PDU 2G, Metered, ZeroU, 22.0kW (32A) 17.3kW View larger

APC AP8886 Metered Rack PDU 2G, Metered, ZeroU, 22.0kW (32A) 17.3kW

AP8886

New

In Stock

High-density 22 kW metered rack PDU with 42 outlets and real-time monitoring for enterprise
×




$2,490.00

Detailed Specifications

APC AP8886 Metered Rack PDU

Overview :

The APC AP8886 Metered Rack PDU is a high-capacity, precision-monitored power distribution unit designed for demanding data centre environments. With support for up to 22 kW (32 A at 230 V) or 17.3 kW (24 A at 230 V) on a three-phase input, this “0U” vertical mount design delivers power through 30 IEC C13 outlets and 12 IEC C19 outlets.  Engineered for efficiency and control, it features active metering for volts, amps, real power (kW), and energy (kWh) with user-defined alarm thresholds to protect against overloads and enable intelligent load-balancing decisions for IT managers.
Built for integration into enterprise infrastructure, the AP8886 is ideal for colocation facilities, large corporate racks, and remote sites where maximizing space, maintaining uptime, and reducing total cost of ownership are top priorities.

Key Features :

  • High-capacity power distribution: up to 22 kW at 230 V (32 A) on three-phase input

  • Full real-time metering with display and remote monitoring (volts, amps, kW, kWh)

  • “0U” vertical mounting saves rack space and maintains 19-inch equipment compatibility

  • Tenure of outlets: 30 × IEC C13 + 12 × IEC C19 for flexible device and server connections

  • Advanced alarm thresholds for overload protection and intelligent infrastructure management

Specifications :

AttributeSpecification
Brand APC by Schneider Electric
Part Number AP8886
Product Type Metered Rack PDU
Compatibility Data centre racks, colocation, enterprise IT
Input Voltage / Power 230 V AC, three-phase, up to 32 A (≈22 kW)
Output Voltage / Power 230 V AC, up to 17.3 kW (24 A) option
Battery Type / Technology Not applicable (PDU, no internal battery)
Outlet Configuration 30 × IEC C13 + 12 × IEC C19
Dimensions (H × W × D) 72.0 in × 2.2 in × 2.0 in (approx)
Weight 19.22 lb (approx)
Operating Temperature 0 °C – 55 °C
Humidity Range 5% – 95% RH (non-condensing)
Warranty 2-year limited
Certifications EN 55022 A, EN 55024, EN 61000-3-2/3, FCC Part 15, VCCI A
Mounting Type / Form Factor Vertical 0U rack-mount
Primary Use Case High-density power distribution in data centres
