APC SBP1500RM Service Bypass PDU, 120V 15AMP W/ (8) NEMA 5-15R View larger

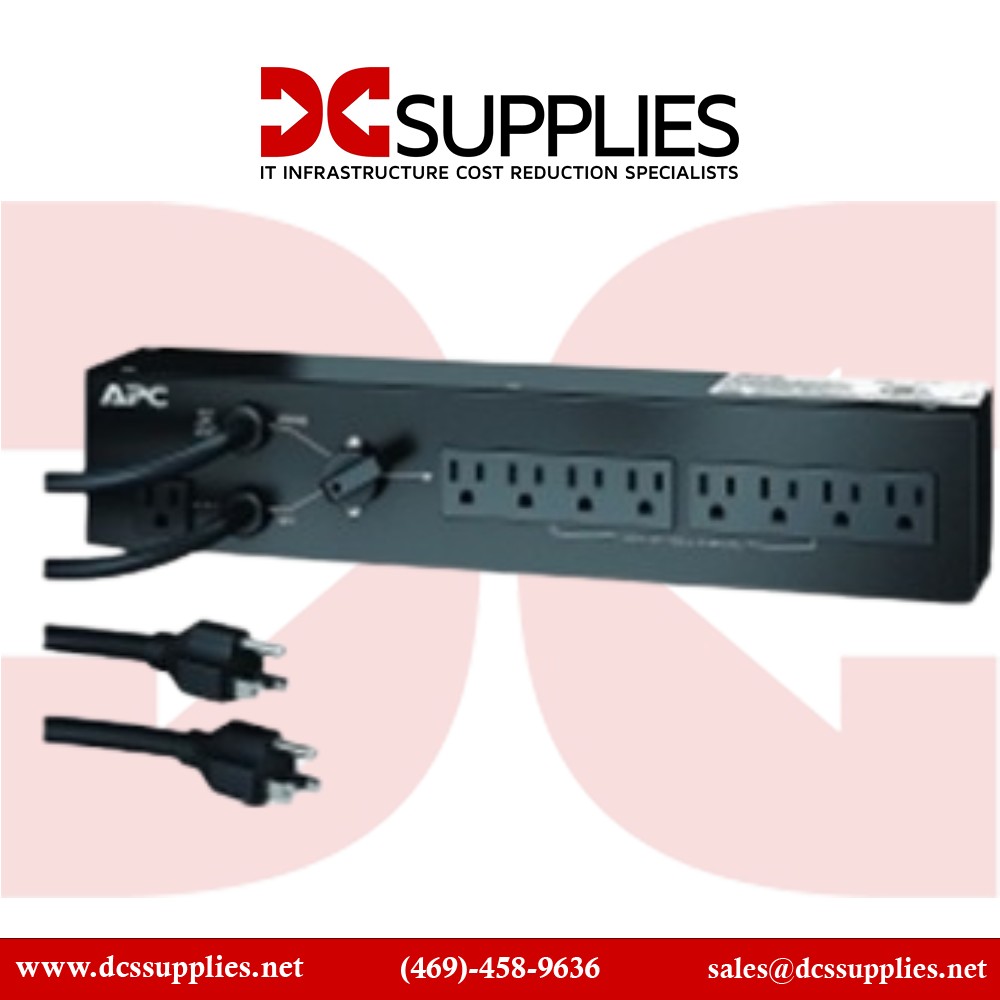

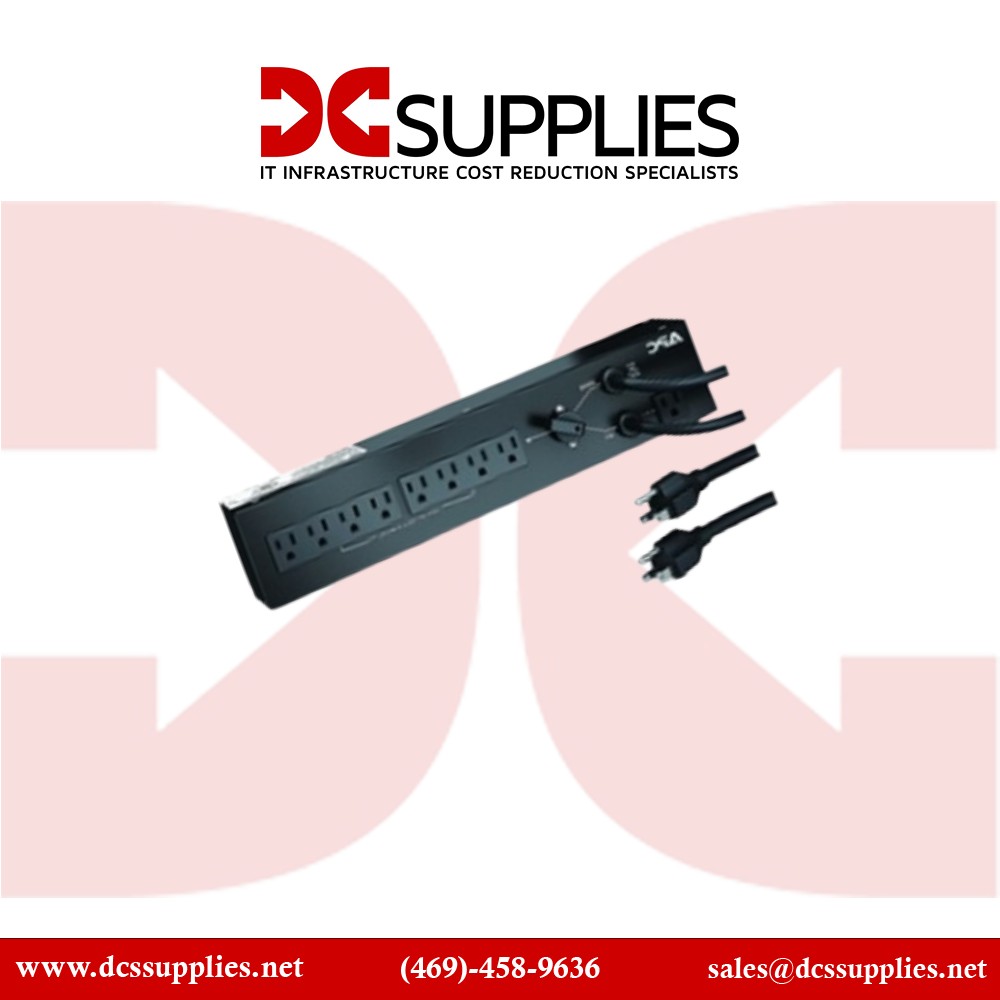

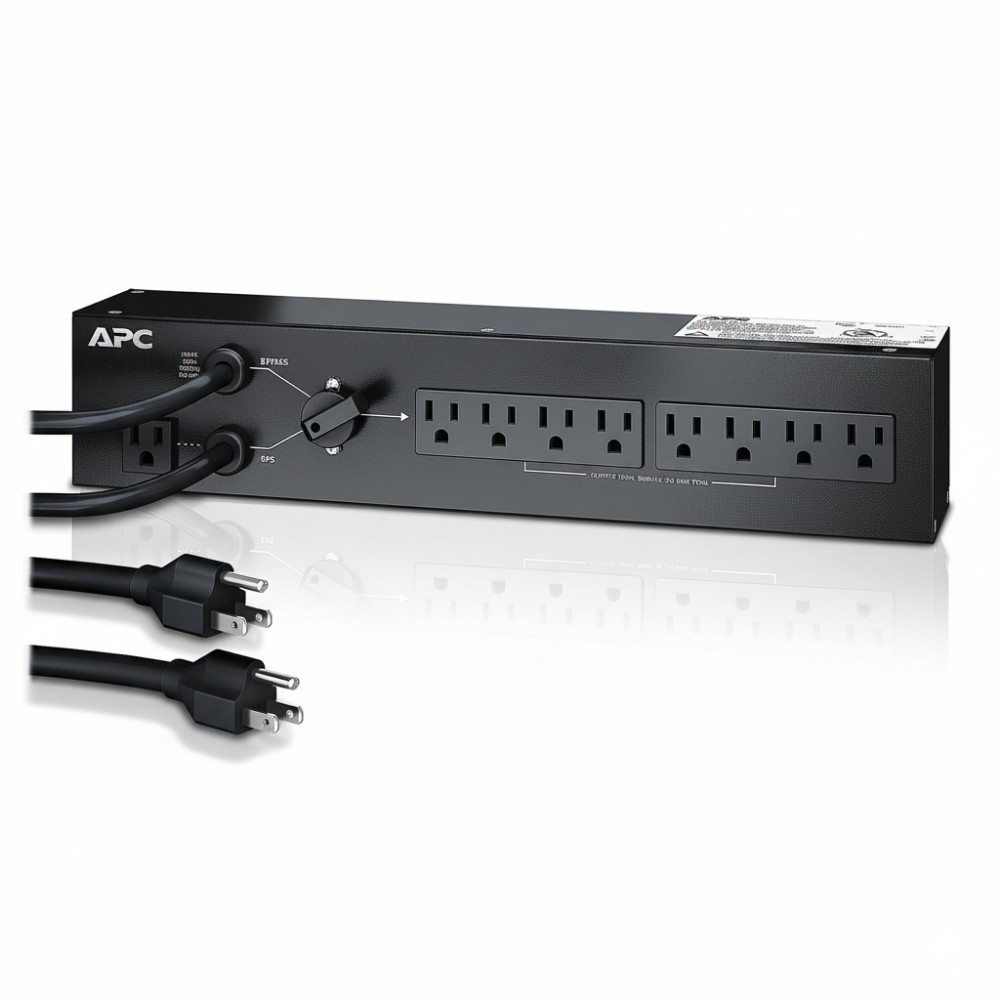

APC SBP1500RM Service Bypass PDU, 120V 15AMP W/ (8) NEMA 5-15R

SBP1500RM

New

Rack Service Bypass PDU 1.5 kVA
×




Detailed Specifications

APC SBP1500RM 120 V Service Bypass PDU

Overview

The APC SBP1500RM is a service bypass power distribution unit designed to maintain power continuity during UPS maintenance or replacement in rack environments. It accepts a standard 120 V input and distributes up to 1.5 kVA to eight NEMA 5-15R outlets with overload protection and circuit breaker safety. The 2 U rack-mountable form factor fits standard 19-inch racks and comes with mounting hardware for installation. It is intended for server rooms, network closets, and enterprise racks where bypassing UPS without interrupting critical loads is necessary.

Key Features

  • Eight NEMA 5-15R AC outlets

  • 1.50 kVA load capacity at 120 V

  • 2U rack-mount form factor

  • Integrated overload protection and breaker

Technical Specifications

SpecificationDetail
Brand APC
Part Number SBP1500RM
Product Type Service Bypass PDU
Input Voltage 120 V AC
Output Voltage 120 V AC
Load Capacity 1.50 kVA
Maximum Input Current 15 A
Plug/Connector Type NEMA 5-15P
AC Outlets 8 × NEMA 5-15R
Overload Protection Yes (Circuit breaker)
Rack Height 2U
Mounting Rack-mountable
Cord Length 8 ft (approx.)
Dimensions (W×D×H) 17″ × 3″ × 3.5″
Weight 6.5 lb
