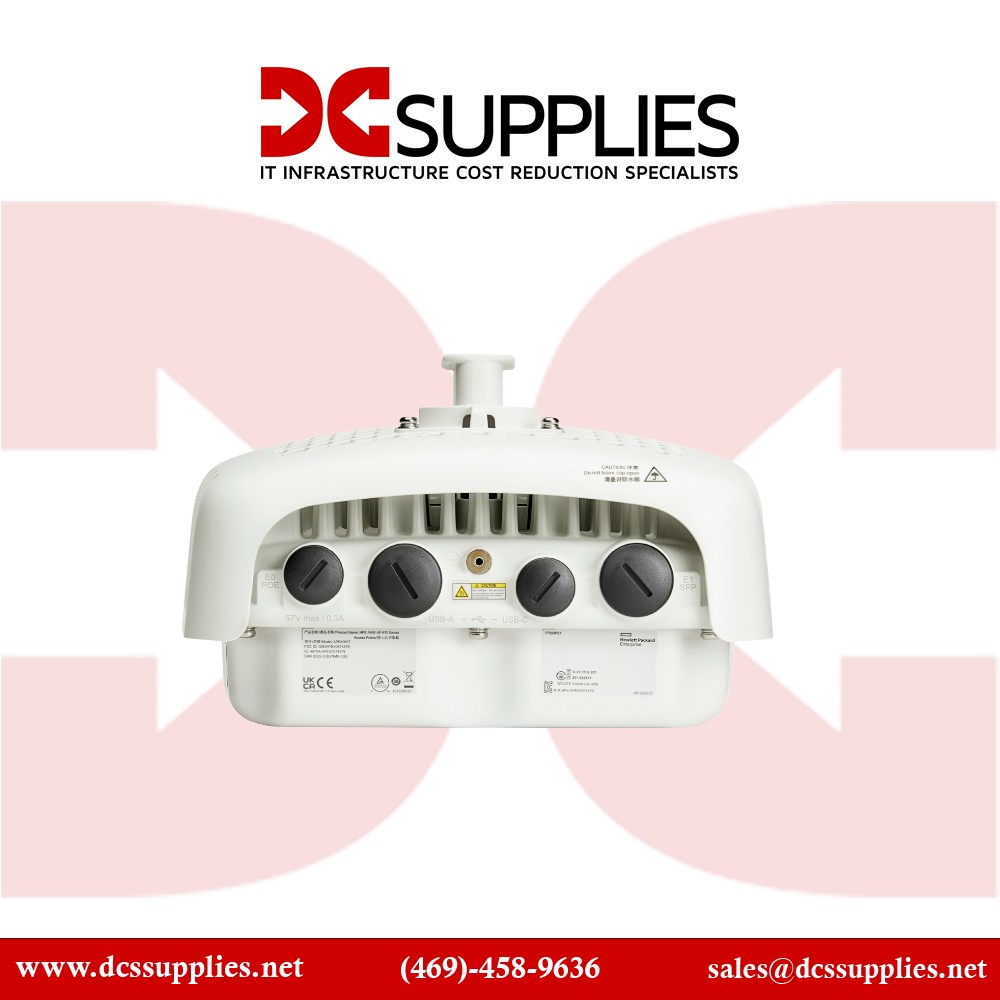

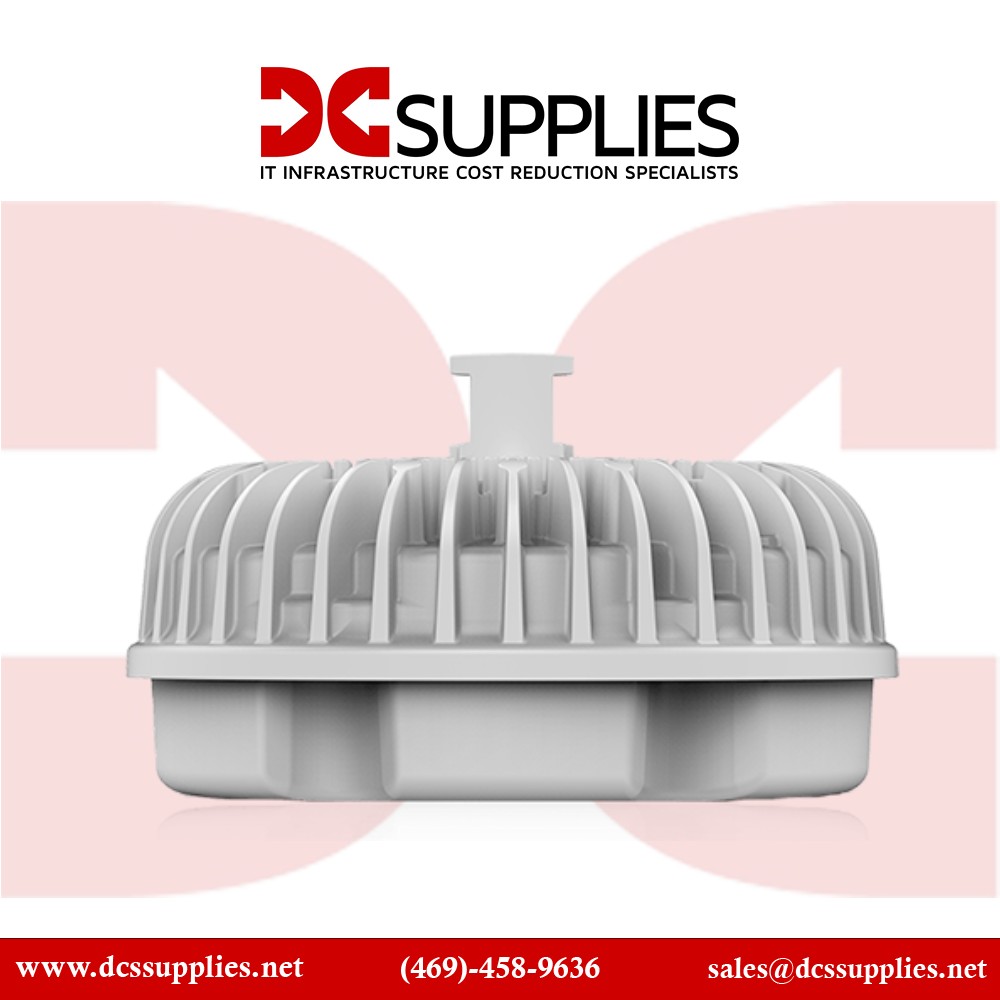

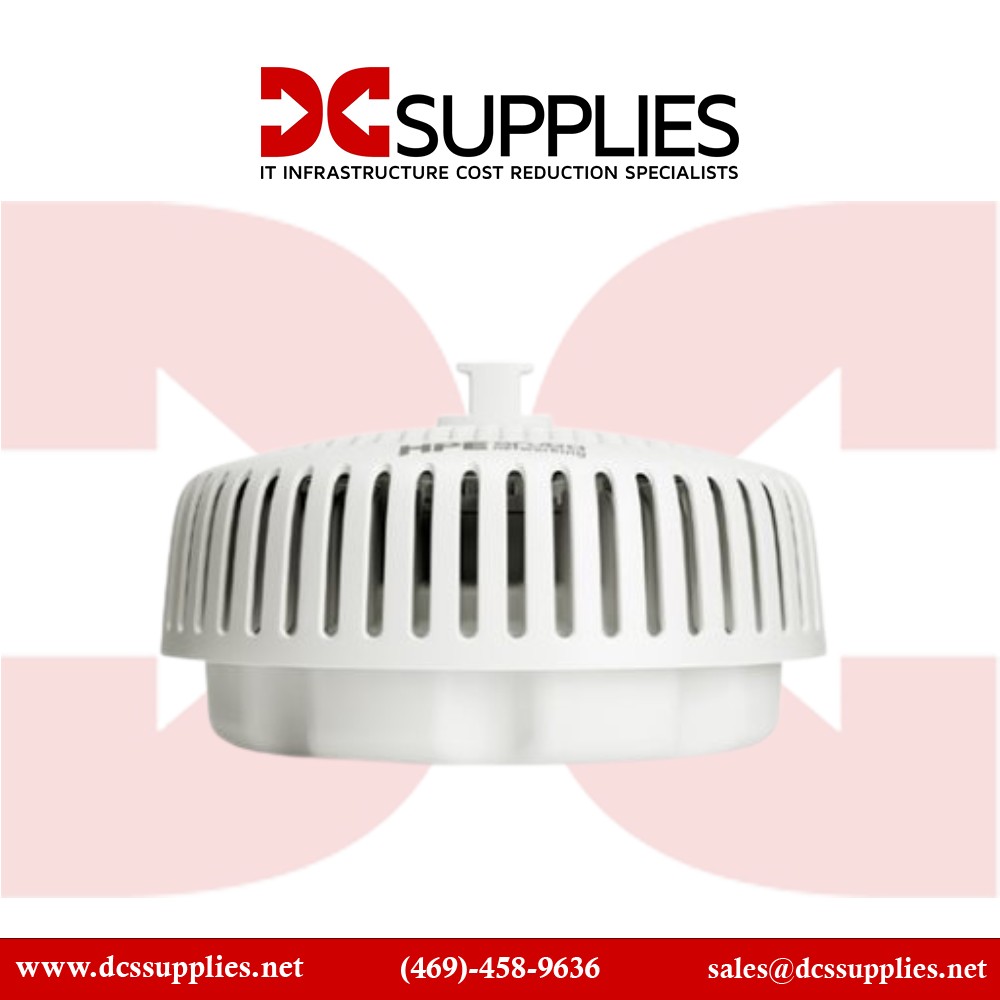

HPE Aruba S0P61A AP-679 Tri-Radio Wi-Fi 6E Outdoor Access Point View larger
Previous Next

HPE S0P61A Aruba Outdoor Access Points AP-679 (RW) Tri-Radio 2×2 Wi-Fi 6E Internal

New

Tri-radio Wi-Fi 6E outdoor AP with dynamic directional antennas.
×




  • New

Detailed Specifications

HPE S0P61A

Aruba AP-679 (RW) Tri-Radio 2×2 Wi-Fi 6E Internal Dynamic Directional Outdoor Access Points

The HPE Aruba AP-679 (RW) is a ruggedized, outdoor-ready access point offering tri-radio connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands, harnessing Wi-Fi 6E performance to transform high-speed outdoor coverage. Designed for enterprise-grade deployments in demanding environments, this AP delivers up to 3.9 Gbps aggregate throughput using a 2×2:2 MIMO configuration. It features internal dynamic directional antennas, embedded Bluetooth 5 and Zigbee for IoT use cases, and robust wired interfaces via a 2.5 GbE port and 1 GbE SFP uplink. Ideal for smart deployments, public venues, and edge use cases, the AP-679 ensures resilient, high-throughput outdoor Wi-Fi performance with extended coverage and capacity.

Features

The AP-679 is part of Aruba670 Series, specifically engineered to bring Wi-Fi 6E capabilities to outdoor and environmentally challenging locations. It leverages the 6 GHz band with up to 160 MHz channels for low-latency, high-bandwidth applications—like livestreaming, AR/VR, or smart city infrastructure—delivering up to 3.9 Gbps across its tri-radio radios (2.4, 5, and 6 GHz) . The AP is highly resilient: weatherproof, temperature-hardened, and equipped with an embedded GPS module for self-location, making it suitable for industrial IoT, asset tracking, and edge deployments in varied outdoor conditions

Advanced Options

Integrated high-power Bluetooth and Zigbee radios simplify IoT rollout and location services. The AP supports Standard Power (SP) mode, benefiting from PoE (via 802.3bt) or optional DC inputs. Intelligent features such as OFDMA, MU-MIMO, Target Wake Time (TWT), and ClientMatch optimize client performance, device efficiency, and roaming. Dynamic Segmentation and embedded TPM offer advanced security, while Policy Enforcement Firewall (PEF) securely isolates IoT traffic. AIC (Advanced IoT Coexistence) enhances performance across Wi-Fi, Bluetooth, and Zigbee radios, ensuring interference-free operation. Intelligent Power Monitoring (IPM) enables adaptive power control based on available PoE supply

Product Key Features

  • Tri-radio Wi-Fi 6E (2.4/5/6 GHz) 2×2:2 MIMO; up to 3.9 Gbps aggregate

  • Internal dynamic directional antennas (software-selectable narrow or wide beam)

  • Built-in Bluetooth 5 and Zigbee radios for IoT applications

  • Wired uplinks: 2.5 GbE RJ-45 and 1 GbE SFP

  • Embedded GPS receiver, supports Standard Power (PoE/optional DC)

  • Rugged and sealed for outdoor/industrial applications

  • Features ArubaArubaintelligence: OFDMA, MU-MIMO, TWT, ClientMatch, Dynamic Segmentation, PEF, AIC, IPM

  • Includes limited lifetime warranty

Reliability & Performance

Engineered for high-performance outdoor missions, the ArubaAP-679 is built to maintain top-tier Wi-Fi 6E service in harsh conditions. Its weatherized enclosure, temperature resilience, and dynamic antenna system ensure stable, adaptive coverage and long-term durability. The high-power Bluetooth and Zigbee radios make it ideal for mixed-use deployments, supporting both connectivity and IoT services seamlessly.Performance is boosted through Arubaintelligent network features, including MU-MIMO, OFDMA, and TWT, which optimize channel utilization and battery life for connected devices. ClientMatch enhances user experience by steering clients to the best access point. Security is enforced through Dynamic Segmentation and PEF, while TPM secures device credentials.IPM allows the AP to adapt operations based on available power, ensuring uptime even under PoE constraints. Altogether, the AP-679 blends connectivity, intelligence, and rugged design for enterprise-grade outdoor Wi-Fi performance.

Key Features :

  • Tri-radio Wi-Fi 6E, up to 3.9 Gbps aggregate

  • Dynamic directional internal antennas

  • Integrated Bluetooth 5 and Zigbee radios

  • 2.5 GbE RJ-45 + 1 GbE SFP uplink ports

  • Embedded GPS and Standard Power support

  • Rugged, outdoor-hardened design

  • Arubafeatures: OFDMA, MU-MIMO, TWT, ClientMatch, Dynamic Segmentation, PEF, AIC, IPM

  • Limited lifetime warranty

SpecificationDetails
Model Number S0P61A
Type Wi-Fi 6E Outdoor Access Points
Radios Tri-radio: 2.4 GHz, 5 GHz, 6 GHz (2×2:2 MIMO)
Max Data Rate Up to 3.9 Gbps aggregate
Antennas Internal dynamic directional (wide/narrow)
IoT Radios Bluetooth 5, Zigbee
Ports 1 × 2.5 GbE RJ-45; 1 × 1 GbE SFP fiber
Power Input IEEE 802.3bt PoE or optional DC
Embedded GPS Yes
Key Features OFDMA, MU-MIMO, TWT, ClientMatch, Dynamic Segmentation, PEF, AIC, IPM
Environmental Rating Outdoor-ready; temperature/humidity hardened
Power Consumption Up to ~45.5 W maximum
Warranty Limited lifetime warranty
