StarTech M2E4BTB3 Dual NVMe M 2 to Thunderbolt 3 Enclosure View larger

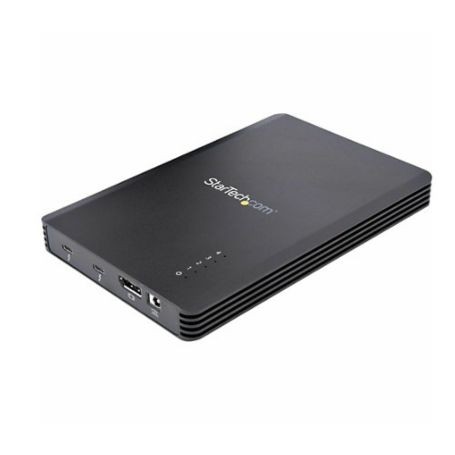

StarTech M2E4BTB3 Dual NVMe M 2 to Thunderbolt 3 Enclosure

M2E4BTB3

New

dual NVMe M.2 Thunderbolt 3 enclosure
×




Detailed Specifications

StarTech M2E4BTB3 Dual NVMe M 2 to Thunderbolt 3 Enclosure

overview

The StarTech M2E4BTB3 is a high-performance dual-bay NVMe M.2 enclosure that connects to a host system via Thunderbolt 3 (40 Gbps), enabling ultra-fast external storage expansion. It supports two PCIe M.2 NVMe SSDs (M-Key) and allows configurations in JBOD, RAID 0 (striping), or RAID 1 (mirroring) for performance or redundancy use cases.

Designed for media professionals, engineers, and data-intensive workflows, it delivers up to ~2800 MB/s throughput depending on drive configuration and RAID mode. The aluminum enclosure integrates active cooling with a built-in fan, ensuring thermal stability under sustained workloads such as video editing, backups, and large dataset transfers.

Deployment fits workstation environments requiring portable, high-speed NVMe storage over Thunderbolt. Not suitable for SATA-based M.2 drives or USB-only hosts without Thunderbolt support.

key features

  • dual M.2 NVMe bays with Thunderbolt 3 interface
  • supports RAID 0, RAID 1, and JBOD configurations
  • up to 40 Gbps Thunderbolt 3 host bandwidth
  • aluminum enclosure with active cooling fan
  • supports M-Key NVMe SSDs (PCIe based only)

specifications

SpecificationDetail
Brand StarTech.com
Part Number M2E4BTB3
Product Type Dual NVMe M.2 Thunderbolt 3 enclosure
Drive Support 2 × M.2 NVMe (M-Key)
Supported Sizes 2230, 2242, 2260, 2280
Interface Thunderbolt 3 (USB-C connector)
Max Bandwidth 40 Gbps
RAID Support RAID 0, RAID 1, JBOD
Max Throughput Up to ~2800 MB/s
Cooling Active fan cooling
Enclosure Material Aluminum
Power External power adapter
OS Compatibility Windows, macOS
Indicators LED activity indicators
Compliance CE, FCC, RoHS
