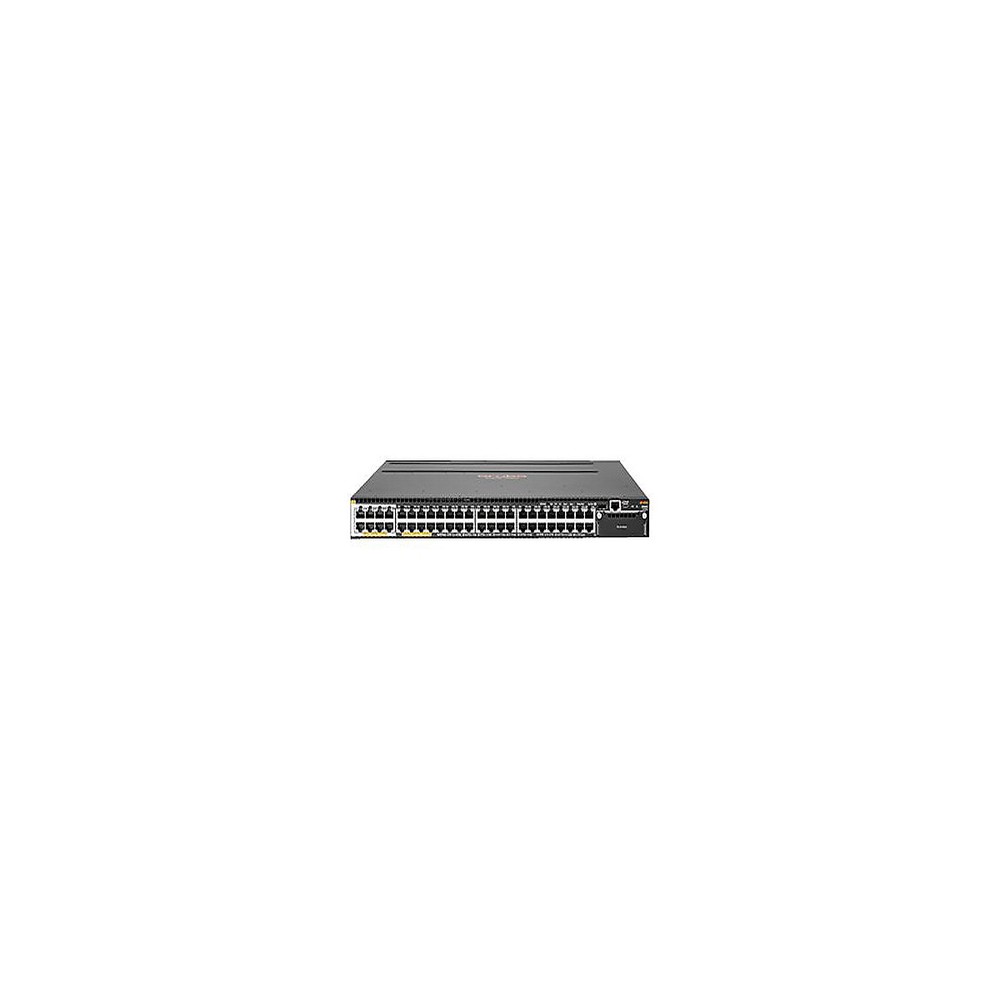

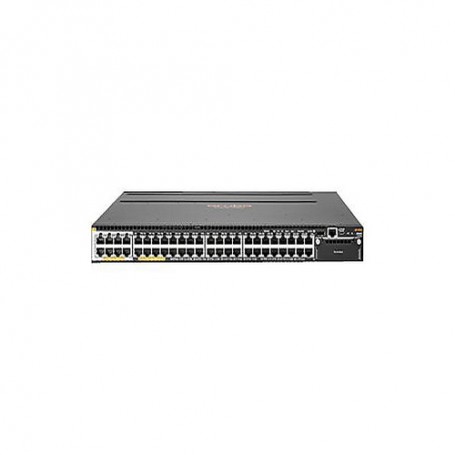

HPE Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch - switch - 40 ports - m View larger

HPE Aruba JL076A 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch - switch - 40 ports - m

JL076A

New

In Stock

HPE Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch - switch - 40 ports - m
×




HP, HPE, HPE Aruba 3810M switch, HP JL076A, HPE JL076A, JL076A, HPE Aruba 3810M 40G 8 HPE Smart, HPE Aruba 3810M 40G, HPE Aruba 3810M 40ports switch

$6,650.00

Detailed Specifications

HPE Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch - switch - 40 ports - m

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Technical Specifications

Main Features
  • Switch
  • managed
  • 40 x 1/2.5/5/10GBase-T (UPOE)
  • rack-mountable
  • PoE+

  • Dimensions & Weight
  • 17 in
  • 1.7 in
  • 13.6 lbs
  • 17.4 in

  • Environmental Parameters
  • 15 - 95% (non-condensing)
  • 15 - 90% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F

  • Header
  • Aruba
  • PC
  • Aruba
  • 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch
  • 1
  • Aruba

  • Interface Provided
  • Management
  • RJ-45
  • 1
  • Serial (console)
  • PoE+
  • 40
  • 10GBase-T
  • Management
  • Management (LAN)
  • Micro-USB

  • Miscellaneous
  • RADIUS, TACACS+
  • Black
  • EN 60825, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013, EN 61000-3-3:2008, EN55022:2010, IEC 61000-4-11, IEC 61000-4-4, UL 60950, VCCI Class A
  • 1

  • Networking
  • Layer 3
  • IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x
  • Wired/Wireless
  • BOOTP support, Flow control, Link Aggregation Control Protocol (LACP), MACsec support, sFlow
  • Rack-mountable
  • 64K entries
  • Yes
  • 40
  • PoE+
  • RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH-2, XRMON
  • BGP, BGP-4, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch

  • Performance
  • Latency (10 Gbps)
  • 1.8 µs
  • Latency (1000Base-T)
  • 2.8 µs
  • Latency (40 Gbps)
  • 1.5 µs
  • Routing/switching capacity
  • 480 Gbps
  • Throughput (64-byte packet size)

  • Ports
  • 40
  • 1/2.5/5/10GBase-T (UPOE)

  • Power Device
  • 0
  • 2
  • Internal power supply

  • Processor
  • 1 GHz
  • 2
  • ARM
  • Cortex-A9

  • RAM
  • 2 GB
  • DDR3 SDRAM

  • Service
  • Lifetime
  • Limited warranty

  • Service & Support
  • Limited lifetime warranty

  • Slot Provided
  • 1
  • 1
  • Expansion slot
  • Stacking Module slot
