Netgear RBE972S-100NAS Quad Band WiFi 7 Mesh System Router View larger

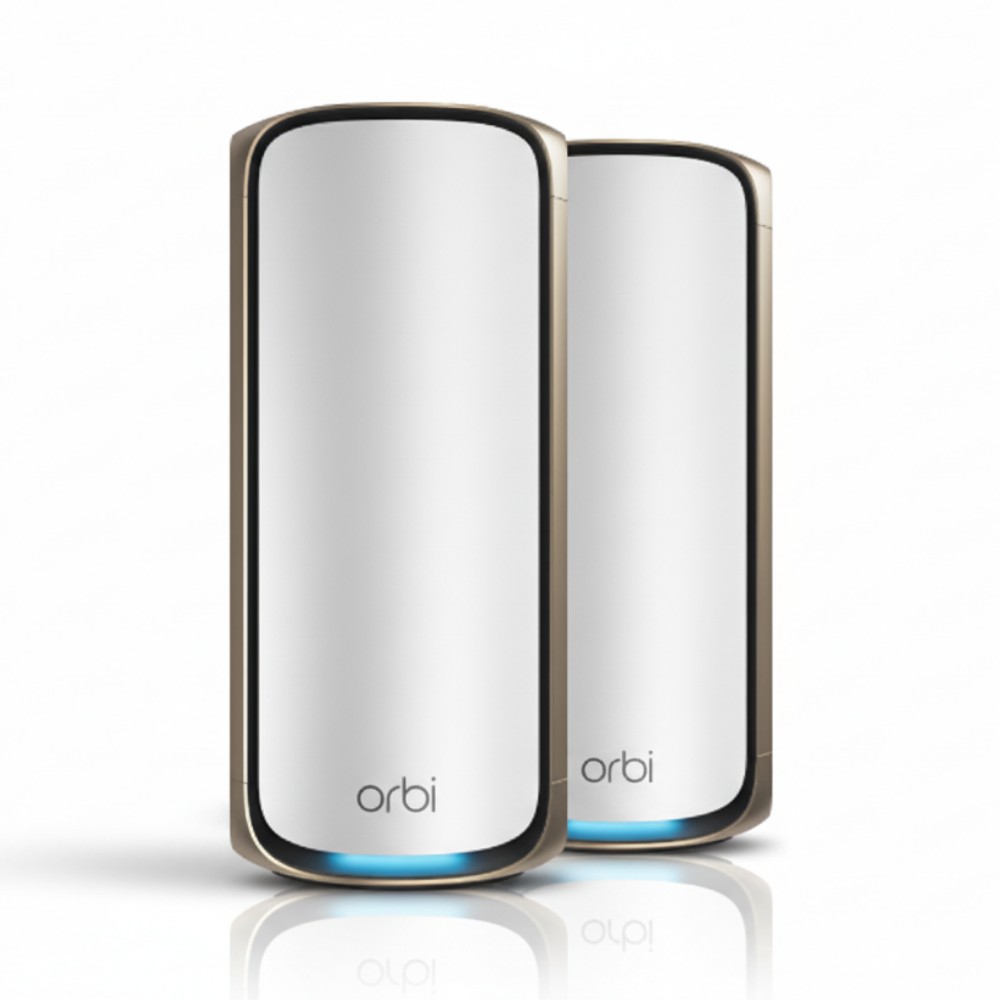

Netgear RBE972S-100NAS Quad Band WiFi 7 Mesh System Router

New

NETGEAR Orbi 970 Mesh System (2-unit)
×




  • New

Detailed Specifications

NETGEAR RBE972S-100NAS – Orbi 970 Quad-Band Mesh System

Overview

The NETGEAR RBE972S-100NAS is a dual-unit quad-band WiFi 7 mesh system (router + satellite) intended for demanding home or small-office environments. It provides up to 27 Gbps of combined wireless throughput, handling simultaneous high-bandwidth uses (8K streaming, VR, large file transfers). The system targets coverage up to 6,600 sq ft and supports over 200 devices. It fits in mesh deployments covering large residences, multistory homes, or campus edges. Management is via the Orbi app and supports firmware updates, network segmentation, and security control.

Key Features

  • Quad-band WiFi 7 with enhanced dedicated backhaul

  • Combined 27 Gbps wireless throughput

  • Each node includes 10G + multi-gig wired ports

  • Coverage up to 6,600 sq ft, supports 200+ devices

Technical Specifications

AttributeSpecification
Brand NETGEAR
Part Number RBE972S-100NAS
Product Type Mesh WiFi 7 System (Router + Satellite)
Wireless Standard IEEE 802.11be (WiFi 7)
Wireless Bands Quad-band — 2.4 GHz + 5 GHz (x2) + 6 GHz
Max Wireless Speed 27 Gbps total (11,530 + 8,647 + 5,765 + 1,147 Mbps)
Coverage Area Up to 6,600 sq ft (combined)
Device Support Up to 200 connected devices
Antennas 12 internal antennas per node
Wired Ports (Router Node) 1 × 10G WAN, 1 × 10G LAN, 4 × 2.5G LAN
Wired Ports (Satellite Node) 1 × 10G LAN, 2 × 2.5G LAN
Processor Quad-core 2.2 GHz
Memory / Flash 2 GB RAM / 4 GB Flash
Encryption / Security WPA3, WPA2, Guest networks, Orbi Armor included (1 year)
Dimensions (H × W × D) 294.03 × 144.38 × 130.79 mm (each unit)
Operating Temperature 0 °C to 40 °C
