Detailed Specifications

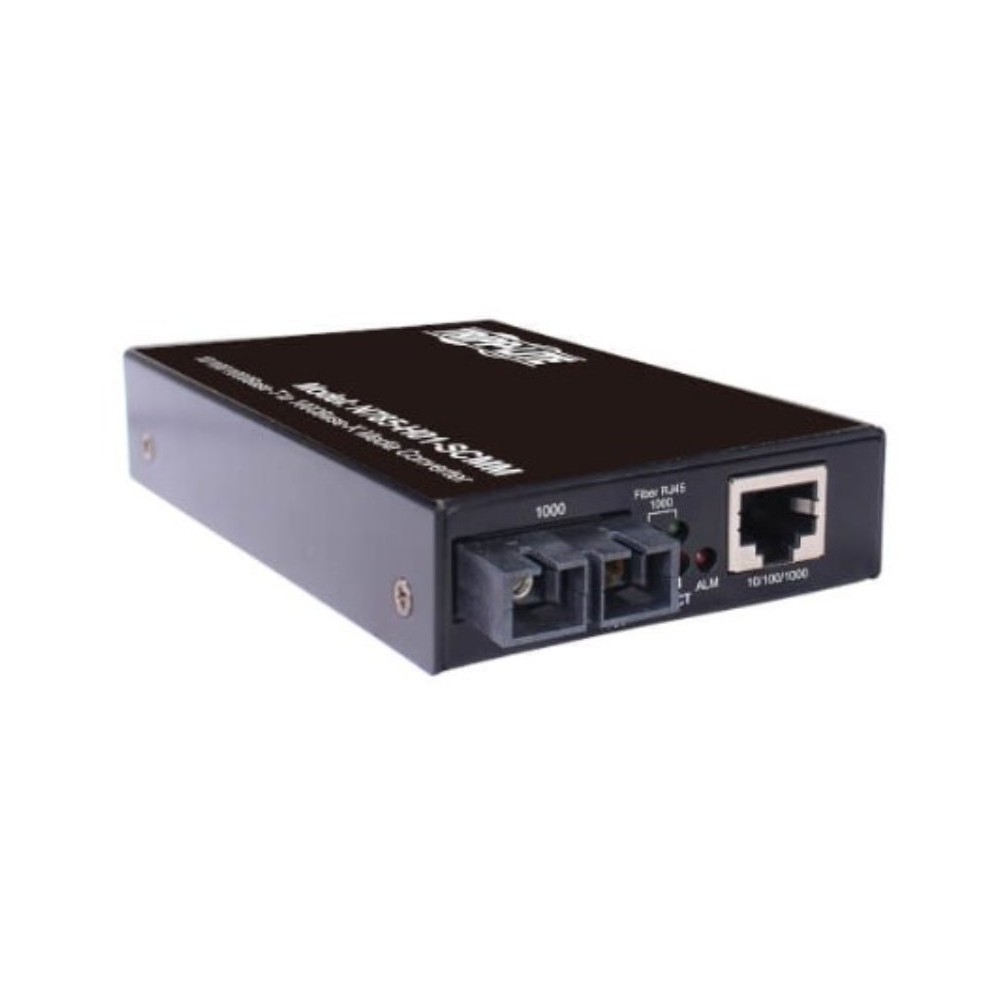

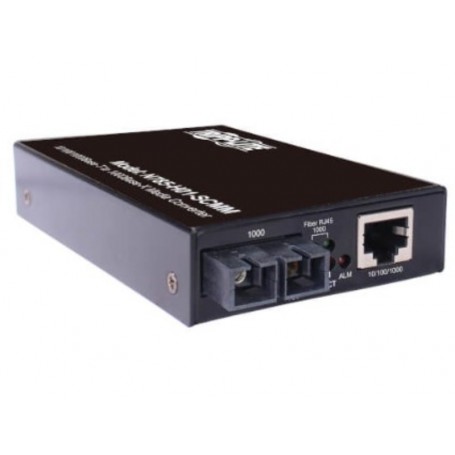

Eaton N785-H01-SCMM Hardened Gigabit Fiber to Ethernet Media Converter Tripp Lite
Overview :
The Eaton N785-H01-SCMM is a hardened Gigabit media converter that converts a copper Ethernet connection to SC multimode fiber, extending 10/100/1000 Mbps network connectivity up to 500 m (1,640 ft.). It supports Cat5/5e/6 copper cabling and 850 nm multimode fiber.
Its hardened aluminum housing is designed for industrial deployments with an operating temperature range of -10°C to 60°C. The converter supports DIN-rail and wall mounting and includes Link Fault Signaling and loopback functions for installation diagnostics.
Key Features :
- 10/100/1000 Mbps Gigabit Ethernet
- RJ45 copper to SC multimode fiber
- Transmission distance up to 500 m
- 850 nm optical wavelength
- Auto MDI/MDI-X
- Link Fault Signaling and loopback functions
- Hardened aluminum housing
- DIN-rail and wall mounting
- -10°C to 60°C operating temperature
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N785-H01-SCMM |
| Product Type | Hardened Fiber Media Converter |
| Copper Port | RJ45 Female |
| Fiber Port | SC Female |
| Fiber Type | Multimode |
| Network Speed | 10/100/1000 Mbps |
| Transmission Distance | Up to 500 m / 1,640 ft |
| Wavelength | 850 nm |
| Fiber Type | 50/125 µm |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Mounting | DIN Rail / Wall |
| Operating Temperature | -10°C to 60°C |
| Power Consumption | 1.8W |
| Input Power | 100–240V AC, 50/60Hz |
| Output Power | 12V DC / 1.5A |
| Housing | Hardened Aluminum |
| Compliance | TAA, RoHS, FCC, CE |
