Detailed Specifications

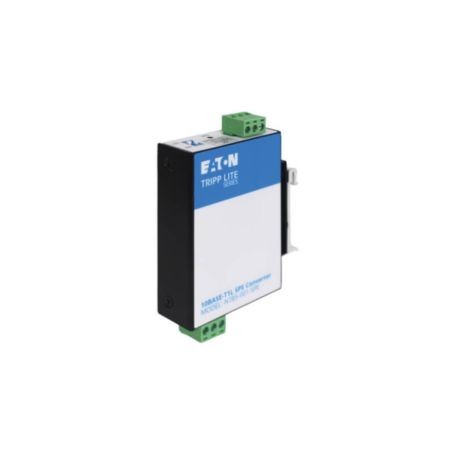

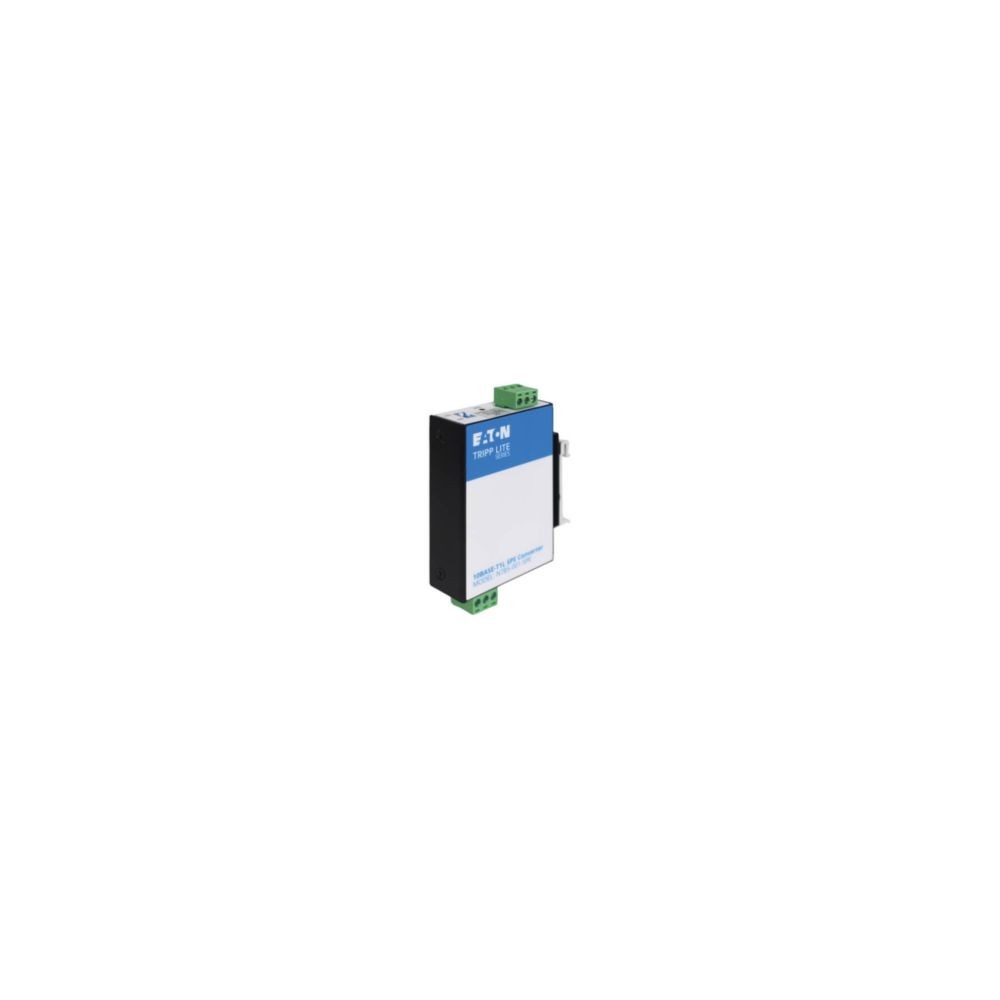

Eaton N785-001-SPE Tripp Lite Series Industrial Single-Pair Ethernet Media Converter
Overview
The Eaton N785-001-SPE, from the Tripp Lite by Eaton networking portfolio, is an industrial Single-Pair Ethernet (SPE) media converter designed to connect 10BASE-T1L SPE devices to standard Ethernet networks in industrial and edge environments.
The converter provides one RJ45 Ethernet port and one SPE port, supporting 10 Mbps data transmission over distances up to 1,000 m using a single pair of copper wiring. It is compliant with IEEE 802.3cg 10BASE-T1L, enabling IT/OT network connectivity over existing two-wire infrastructure.
The N785-001-SPE features a metal housing, DIN-rail or wall-mountable design, 3-pin terminal-block input, and a -40°C to 70°C operating temperature range. Its compact industrial construction is intended for control cabinets, factories, warehouses, and other demanding edge deployments.
Key Features
- 10BASE-T1L SPE media converter bridges Single-Pair Ethernet devices with standard Ethernet networks.
- 10 Mbps transmission up to 1,000 m supports long-distance industrial Ethernet connectivity over one copper pair.
- RJ45 and SPE ports provide connectivity between conventional Ethernet equipment and compatible SPE devices.
- DIN-rail or wall-mountable design supports installation inside industrial control cabinets and edge environments.
- Industrial metal housing with -40°C to 70°C operation supports deployment in demanding environmental conditions.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Model | N785-001-SPE |
| Product Type | Industrial SPE Media Converter |
| Ethernet Standard | 10BASE-T1L |
| IEEE Standard | IEEE 802.3cg |
| Data Transfer Rate | 10 Mbps |
| Transmission Distance | Up to 1,000 m |
| Number of Ports | 2 |
| Ethernet Port | RJ45 Female |
| SPE Port | Single-Pair Ethernet |
| Power Input | 3-Pin Terminal Block |
| Housing | Metal |
| Mounting | DIN-Rail / Wall Mount |
| Operating Temperature | -40° to 70°C (-40° to 158°F) |
| Operating Humidity | 5% to 90% RH, Non-Condensing |
| Storage Temperature | -40° to 85°C (-40° to 185°F) |
| Color | Black |
| Dimensions | 2.3 × 3.4 × 0.9 in |
| Weight | 0.46 lb |
| Compliance | TAA |
| Certifications | UL Listed, CSA, ICES |
| UPC | 037332300379 |
| Warranty | 3-Year Limited Warranty |
