Detailed Specifications

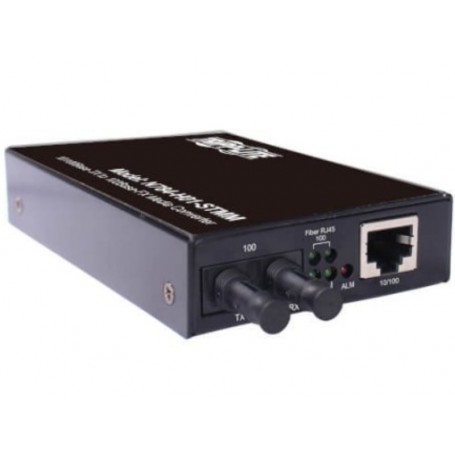

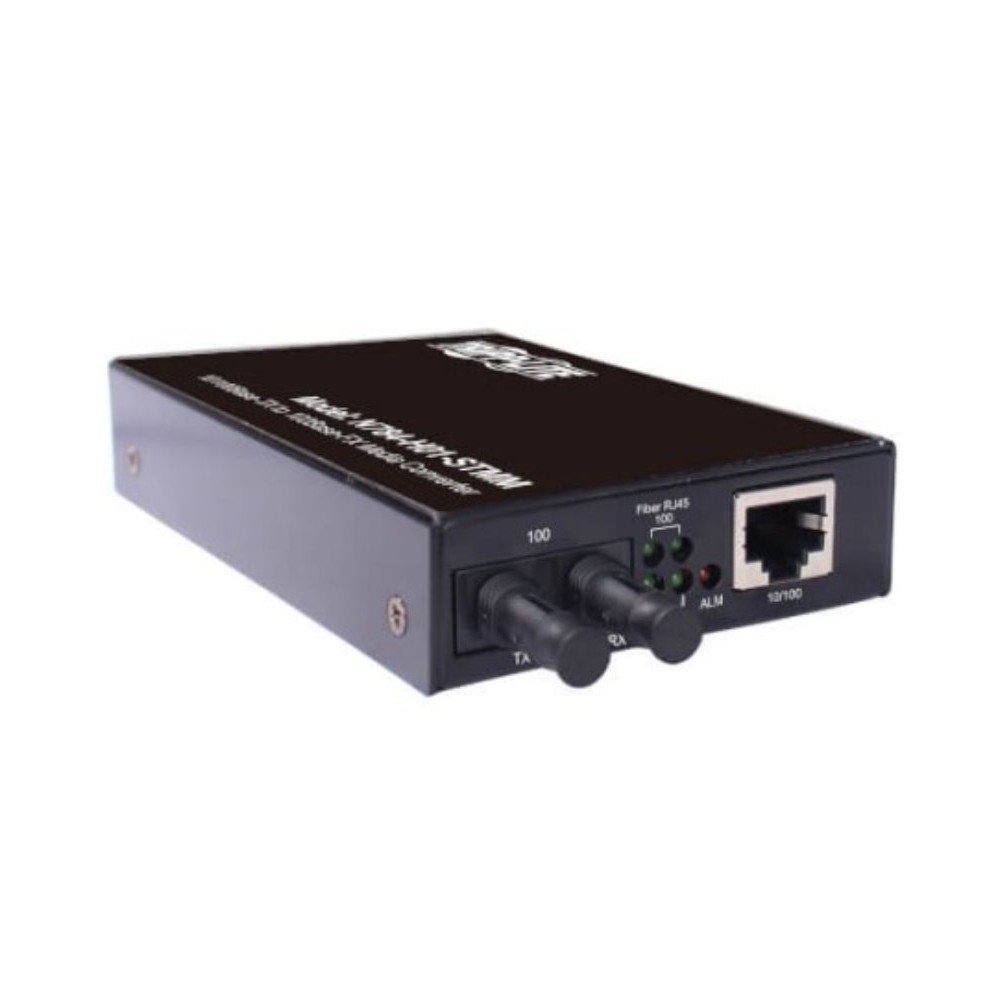

Eaton N784-H01-STMM Hardened 10 100 Mbps Copper to Fiber Media Converter Tripp Lite
Overview :
The Eaton N784-H01-STMM is a hardened copper-to-fiber media converter that converts 10/100 Mbps Ethernet over RJ45 copper to ST multimode fiber. It extends network connections up to 2 km (1.2 miles) over multimode fiber, making it suitable for industrial networks, data centers, and remote network segments.
The converter features a hardened aluminum housing, automatic MDI/MDI-X, Link Fault Signaling and diagnostic loopback functions. It supports DIN-rail and wall mounting and operates from -10°C to 60°C for deployment in demanding environments.
Key Features :
- 10/100 Mbps Fast Ethernet
- RJ45 copper to ST multimode fiber
- Transmission distance up to 2 km
- 1310 nm optical wavelength
- Automatic MDI/MDI-X
- Link Fault Signaling and loopback diagnostics
- Hardened aluminum housing
- DIN-rail and wall mounting
- -10°C to 60°C operating temperature
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N784-H01-STMM |
| Product Type | Hardened Fiber Media Converter |
| Copper Port | RJ45 Female |
| Fiber Port | ST Female |
| Fiber Type | Multimode |
| Network Speed | 10/100 Mbps |
| Transmission Distance | Up to 2 km / 1.2 mi |
| Wavelength | 1310 nm |
| Fiber Core | 62.5/125 µm |
| Standards | IEEE 802.3, 802.3u |
| Mounting | DIN Rail / Wall |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 1.8W |
| Input Power | 100–240V AC, 50/60Hz, 0.5A |
| Output Power | 12V DC / 1.5A |
| Housing | Metal / Hardened Aluminum |
| Compliance | TAA, RoHS, CE, FCC |
