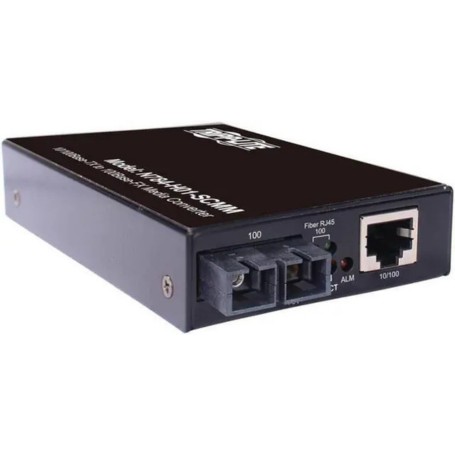

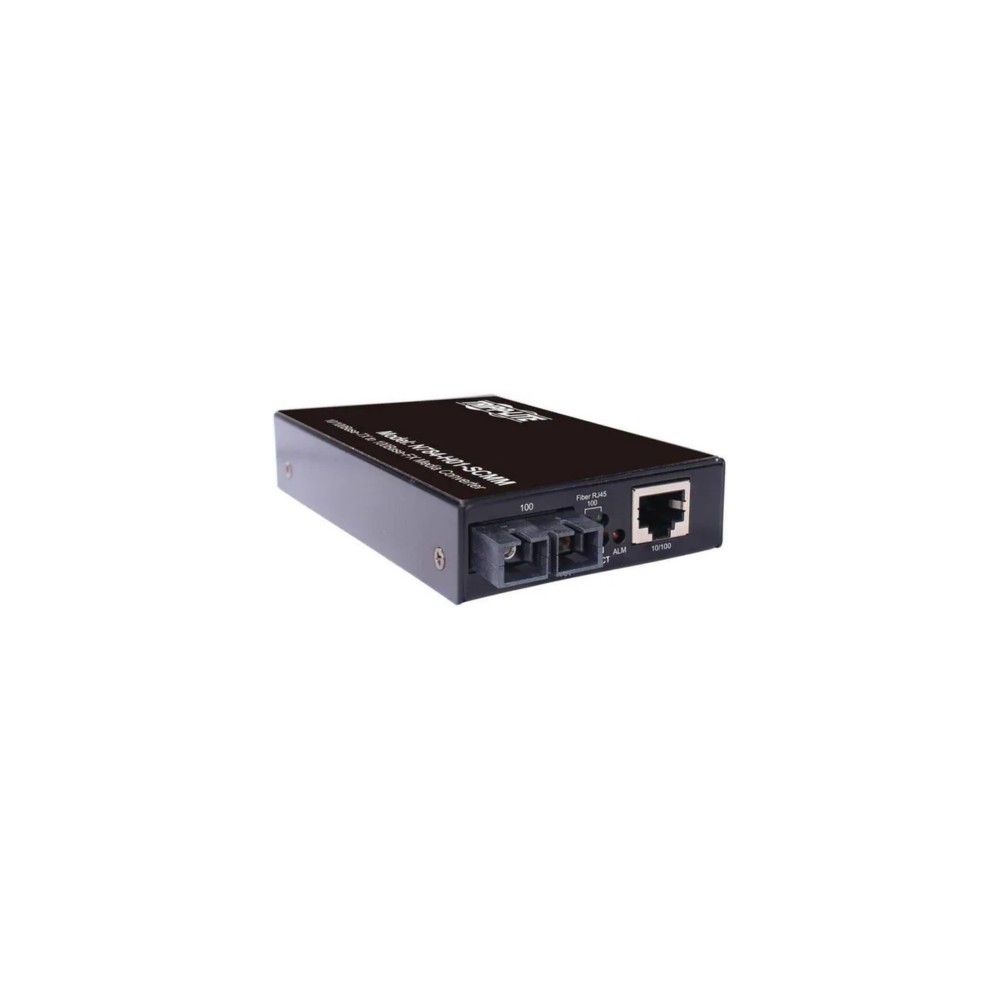

Eaton N784-H01-SCSM Media Converter
Overview :
The Eaton N784-H01-SCSM (Tripp Lite Series) is a hardened copper-to-fiber media converter engineered for extended-range network bridging in harsh environments. Plant automation engineers, campus network technicians, and physical security teams deploy this module to bypass the standard 100-meter physical length limitation of traditional copper UTP network lines.
The unit converts incoming 10/100 Base-TX copper Ethernet traffic into single-mode fiber optic signals, pushing data streams out up to 30 kilometers (18.6 miles) over an SC duplex fiber pair. Integrated Link Fault Signaling (LFS) and Local/Remote Loop Back (LLB/RLB) diagnostics provide immediate physical troubleshooting hooks via manual DIP switches. These monitoring systems visually highlight link drops caused by severed cabling or transceiver anomalies across distant network nodes.
Built with a rugged aluminum enclosure, this compact converter handles severe operating environments, resisting electrostatic discharge (ESD) and radio frequency interference (RFI). It installs as a standalone desktop piece, mounts via integrated DIN rail clips, or secures into a 12-slot N785-CH12 centralization rack. Never attempt to mix this single-mode 1310nm optical interface with a multimode fiber run, as extreme optical signal scattering will drop all network carrier lines.
Key Features :
Converts Fast Ethernet copper links to long-range single-mode fiber infrastructure.
Pushes 10/100 Mbps data lines over duplex SC glass up to 30 kilometers.
LFS and manual Loop Back diagnostic tools accelerate network troubleshooting.
Hardened aluminum housing withstands demanding industrial temperatures.
Flexible mounting design supports DIN rail, wall bracket, or desktop setups.
Specifications :
| Property | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | N784-H01-SCSM |
| Product Type | Hardened Copper-to-Fiber Media Converter |
| Ethernet Speed | 10 / 100 Mbps (Fast Ethernet) |
| Fiber Mode | Single-mode (SMF) |
| Optical Wavelength | 1310 nm |
| Max Cable Distance | 30 km (18.6 miles) |
| Input Interface | (1) RJ45 Female (10/100Base-TX) |
| Output Interface | (1) Duplex SC Female (100Base-FX) |
| Diagnostics | Link Fault Signaling (LFS), LLB, RLB (via DIP Switch) |
| Enclosure Material | Hardened Aluminum |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Power Consumption | 1.80 W |
| Power Source | 100-240V AC External Adapter (12V DC 1.5A Output) |
| Compliance | TAA Compliant, RoHS, REACH, FCC Part 15 Class A |
