Detailed Specifications

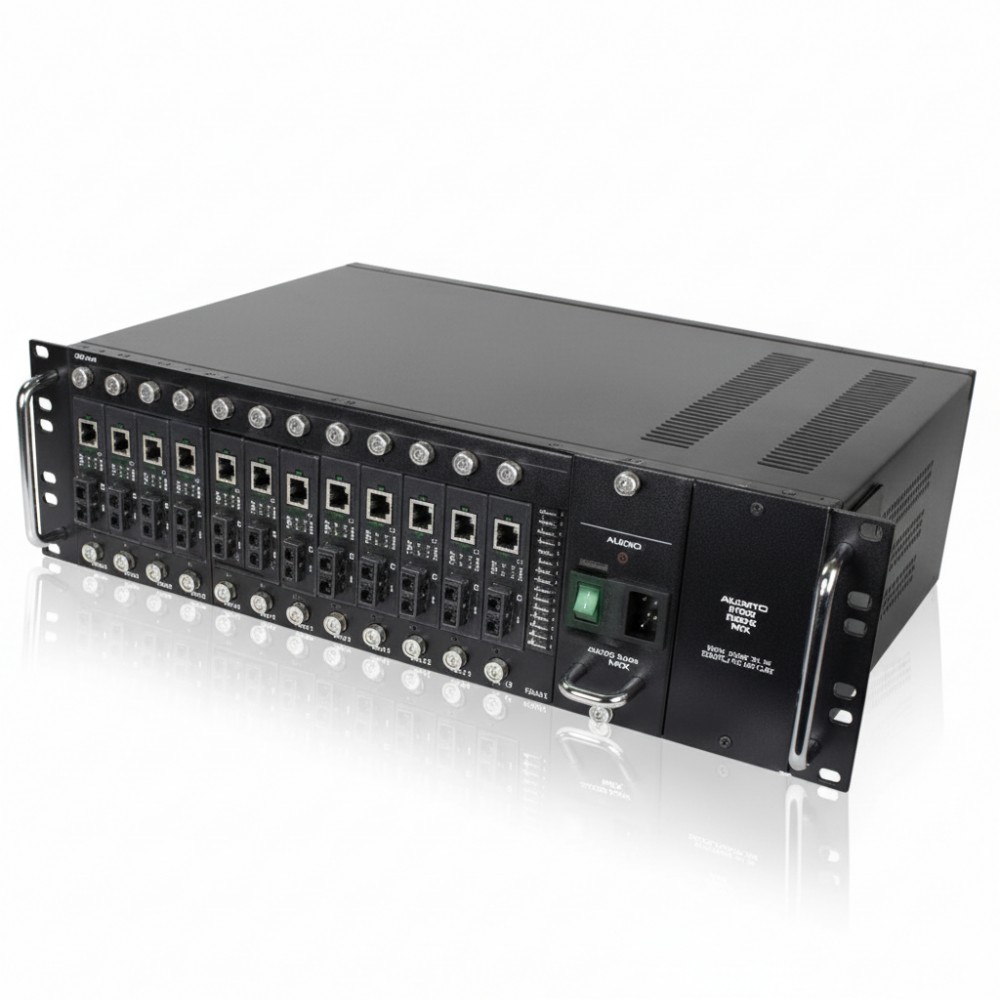

Eaton Tripp Lite N785-CH12 - 12-Port Fiber Media Converter Chassis
Overview :
The Eaton Tripp Lite N785-CH12 is a 12-slot fiber media converter chassis designed for centralized management of multiple media converter modules. It provides a structured and efficient housing solution for enterprise and data center environments. The chassis supports both AC and DC power modules with hot-swappable design for uninterrupted network uptime. It is ideal for use in core networks, server rooms, and fiber aggregation points requiring scalable and reliable fiber connectivity management.
Key Features :
Supports up to 12 converter modules
Hot-swappable AC/DC power options
Dual redundant power supply support
Rackmount 2U metal enclosure
Specifications
| Specification | Description |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N785-CH12 |
| Product Type | Fiber Media Converter Chassis |
| Form Factor | 2U Rackmount |
| Slot Capacity | 12 Media Converter Modules |
| Power Supply | Dual Redundant AC or DC |
| Cooling | Built-in Fan Cooling |
| Input Voltage | 100-240V AC / -48V DC |
| Hot-Swappable Modules | Supported |
| Chassis Material | Metal |
| Mounting Type | Standard 19-inch Rack |
| Operating Temperature | 0°C to 50°C |
| Dimensions (W x D x H) | Approx. 482 × 250 × 90 mm |
| Weight | Approx. 5.5 kg |
| Compliance | CE, FCC Class A |
