Detailed Specifications

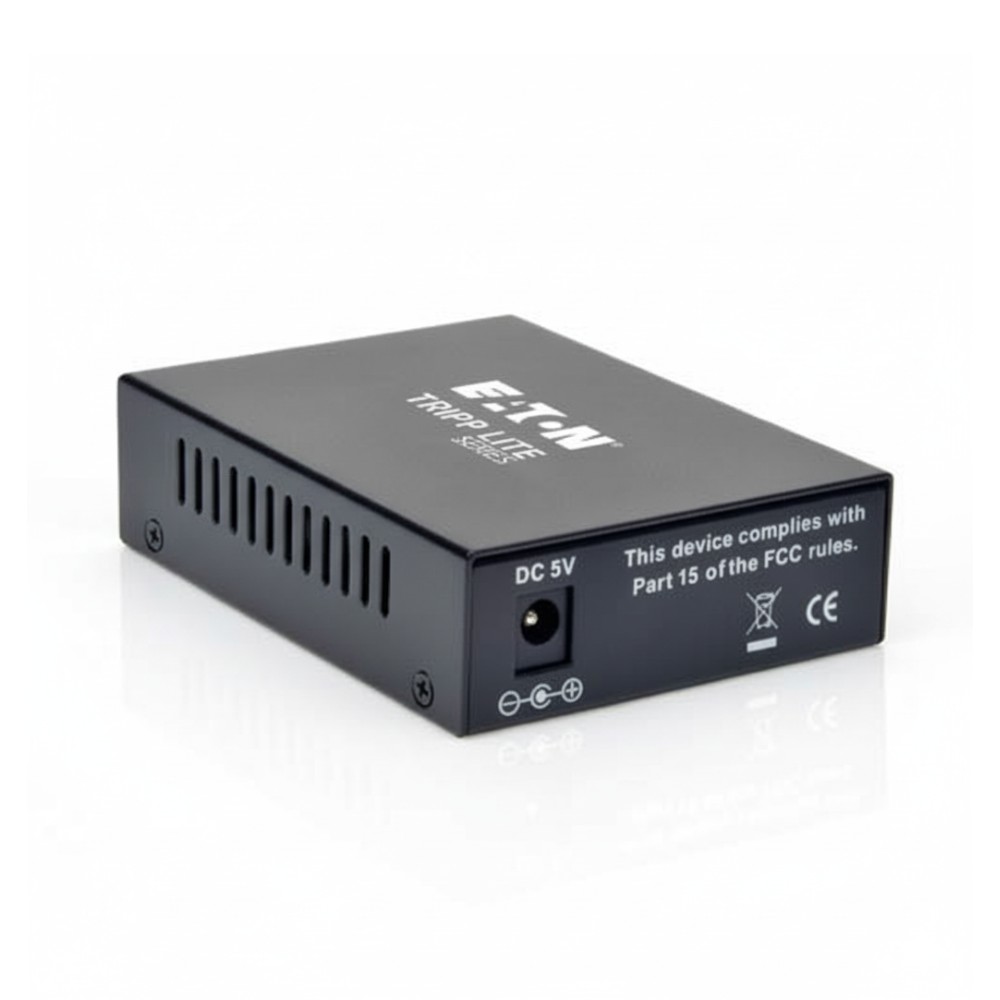

Eaton Tripp Lite N784-001-SC-15 - Fiber-to-Ethernet Media Converter
Overview :
The Eaton Tripp Lite N784-001-SC-15 is a 10/100 Mb/s media converter for engineers handling Ethernet-to-fiber transitions, converting RJ-45 UTP to SC single-mode fiber to extend network links up to 15 km. It features automatic MDI/MDI-X on the UTP port, auto-detecting full or half duplex, and supports 1310 nm wavelength single-mode fiber. It fits in branch, campus or data-centre edge deployments where copper reach is insufficient and fibre is required for long link distances. It operates standalone and can integrate into standard Ethernet segments with fibre uplinks to switches or fibre-based network aggregation.
Key Features :
Converts 10/100 Base-T (UTP) to single-mode SC fibre link
Supports link distances up to 15 km over single-mode fibre
Auto-MDI/MDI-X and auto-speed sensing (10/100 Mb/s) on RJ-45 port
Six LED status indicators for power, fibre link, copper link, speed, duplex, collision
Specifications :
| Spec | Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | N784-001-SC-15 |
| Product Type | Fiber-to-Ethernet media converter |
| Network Speed | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Fibre Mode | Single-mode |
| Wavelength | 1310 nm |
| Transmission Distance (fibre) | Up to 15 km |
| Copper Port | RJ-45 (female) |
| Fibre Port | SC duplex (female) |
| Power Supply Input | 100-240 V AC, 50/60 Hz |
| Power Supply Output | 5 V DC, 1.2 A |
| Operating Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to 158 °F) |
| Relative Humidity | 5 % to 90 % non-condensing |
| Housing | Metal enclosure |
| LED Indicators | PWR, L/A (fibre), SD (fibre signal), SPD (speed), TP-L/A (copper link), FDX/COL (duplex/collision) |
