Eaton Tripp Lite N785-001-SC Gigabit Fiber Media Converter 2 km Range View larger

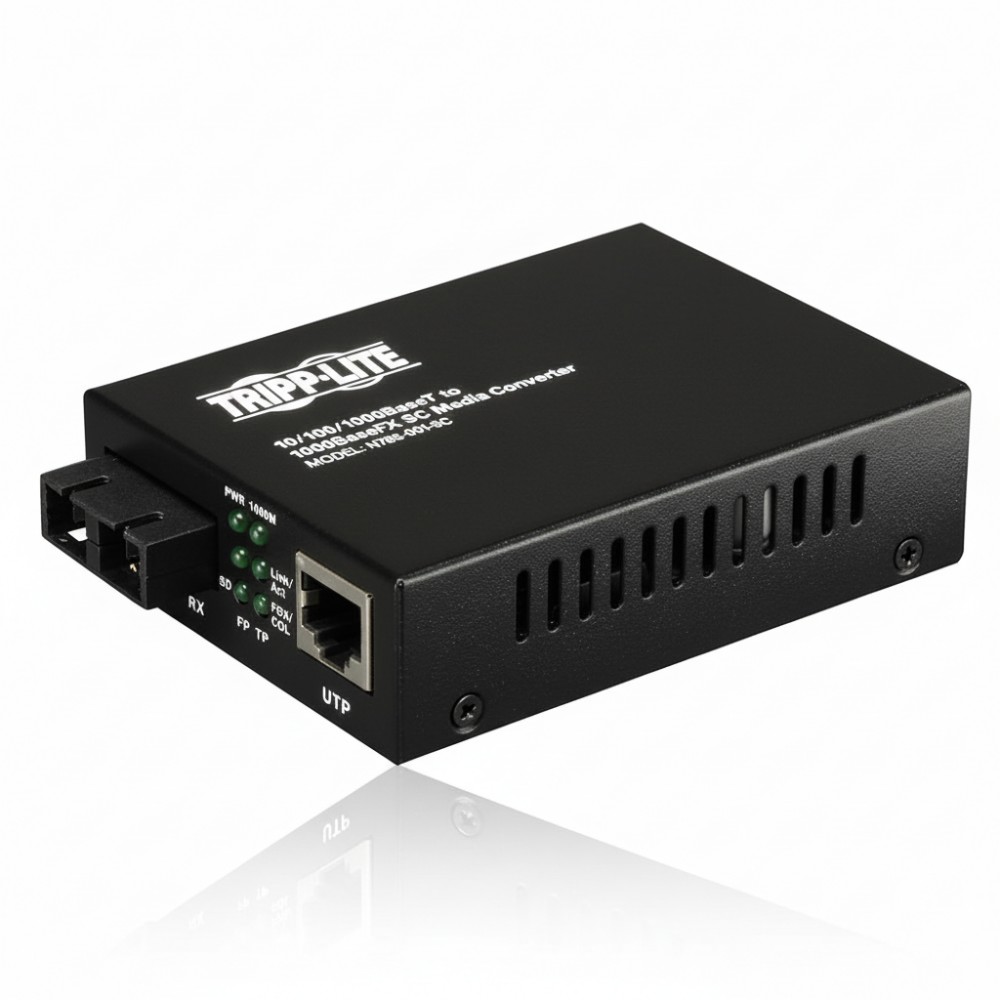

Eaton Tripp Lite N785-001-SC Gigabit Fiber Media Converter 2 km Range

N785-001-SC

New

Gigabit Ethernet to Fiber Media Converter
×




Detailed Specifications

Eaton Tripp Lite N785-001-SC – Gigabit Multimode Fiber Media Converter

Overview :

The Eaton Tripp Lite N785-001-SC is a Gigabit Ethernet to fiber media converter designed to extend network connections over multimode fiber. It supports 10/100/1000 Mbps Ethernet to 1000BaseLX fiber, offering a cost-effective solution for bridging copper to fiber networks. The device operates over multimode fiber cables, supporting distances up to 2 kilometers. It is suitable for deployment in enterprise networks, data centers, and campus environments.

Key Features :

  • Supports 10/100/1000 Mbps Ethernet to 1000BaseLX fiber conversion

  • Operates over multimode fiber cables up to 2 km

  • Auto MDI/MDI-X and auto-sensing UTP port

  • Selectable half/full duplex operation on fiber port

Specifications

SpecificationDetails
Brand Eaton Tripp Lite
Part Number N785-001-SC
Product Type Gigabit Multimode Fiber Media Converter
Ethernet Port 10/100/1000Base-T (RJ45)
Fiber Port 1000BaseLX (SC Duplex)
Fiber Type Multimode (50/125 or 62.5/125)
Wavelength 1310 nm
Max Distance (50/125) Up to 2 km
Max Distance (62.5/125) Up to 400 m
Duplex Mode Full/Half (selectable)
MDI/MDI-X Support Yes (auto-sensing)
LED Indicators PWR, L/A, SD, SPD, TP-L/A, FDX/COL
Power Supply External AC Adapter (Input: 110-265V, 50/60Hz; Output: 5V, 2A)
Dimensions 3.75" x 2.75" x 1" (95 mm x 70 mm x 25 mm)
Compliance RoHS Compliant
