Detailed Specifications

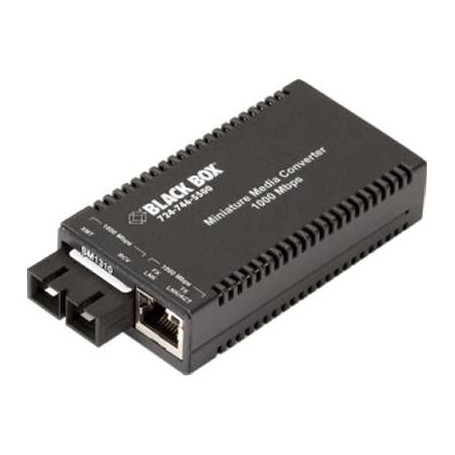

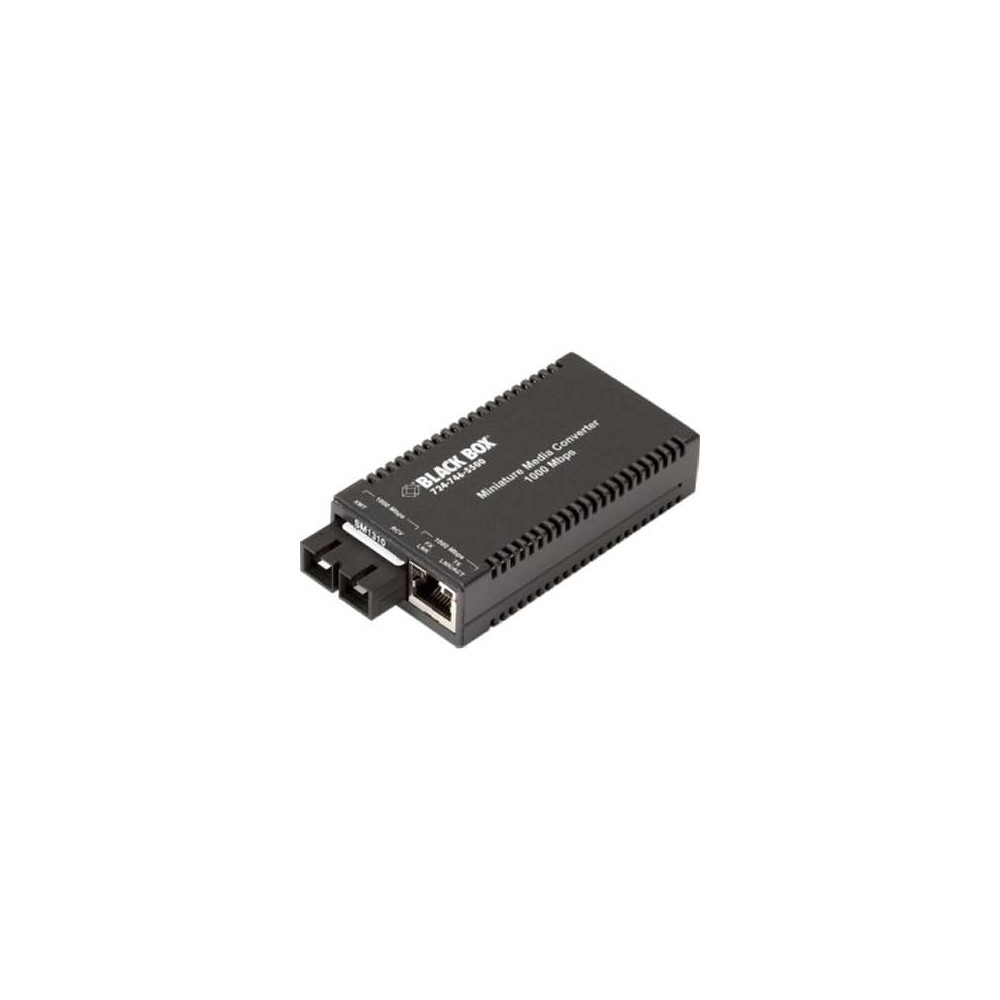

Black Box LGC011A-R2 TX/LX-SM-SC AC 10 KM 1310 NM
Overview :
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. Choose from multimode and single-mode duplex fiber versions. For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).
Specifications :
Product Name |
TX/LX-SM-SC AC 10 KM 1310 NM |
Product Type |
Transceiver/Media Converter |
Ethernet Technology |
Gigabit Ethernet |
USB |
No |
DVI |
No |
Number of Network (RJ-45) Ports |
1 |
Network (RJ-45) |
Yes |
Product Family |
MultiPower |
Number of SC Ports |
1 |
Media Type Supported |
Optical Fiber
Twisted Pair
|
Fiber Mode Supported |
Single-mode |
Total Number of Ports |
2 |
SC Port Type |
Duplex |
TAA Compliant |
Yes |
Form Factor |
External
Rail-mountable
Rack-mountable
|
Network Technology |
1000Base-LX
1000Base-TX
|
Maximum Distance Supported |
6.21 Mile |
Environmentally Friendly |
Yes |
Management Port |
No |
Fiber Optic Wavelength |
1310 nm |
Country of Origin |
United States |
Height |
0.8" |
Width |
1.8" |
Depth |
3.4" |
Product Model |
LGC011A-R2 |
Product Line |
MultiPower |
Limited Warranty |
6 Year |
Parallel Port |
No |
Digital Audio |
No |
Digital Audio / Video |
No |
Compatibility |
Black Box PowerTray 18-Slot |
Stock Details |
Manufacturer |
Black Box |
Manuf Part# |
LGC011A-R2 |
