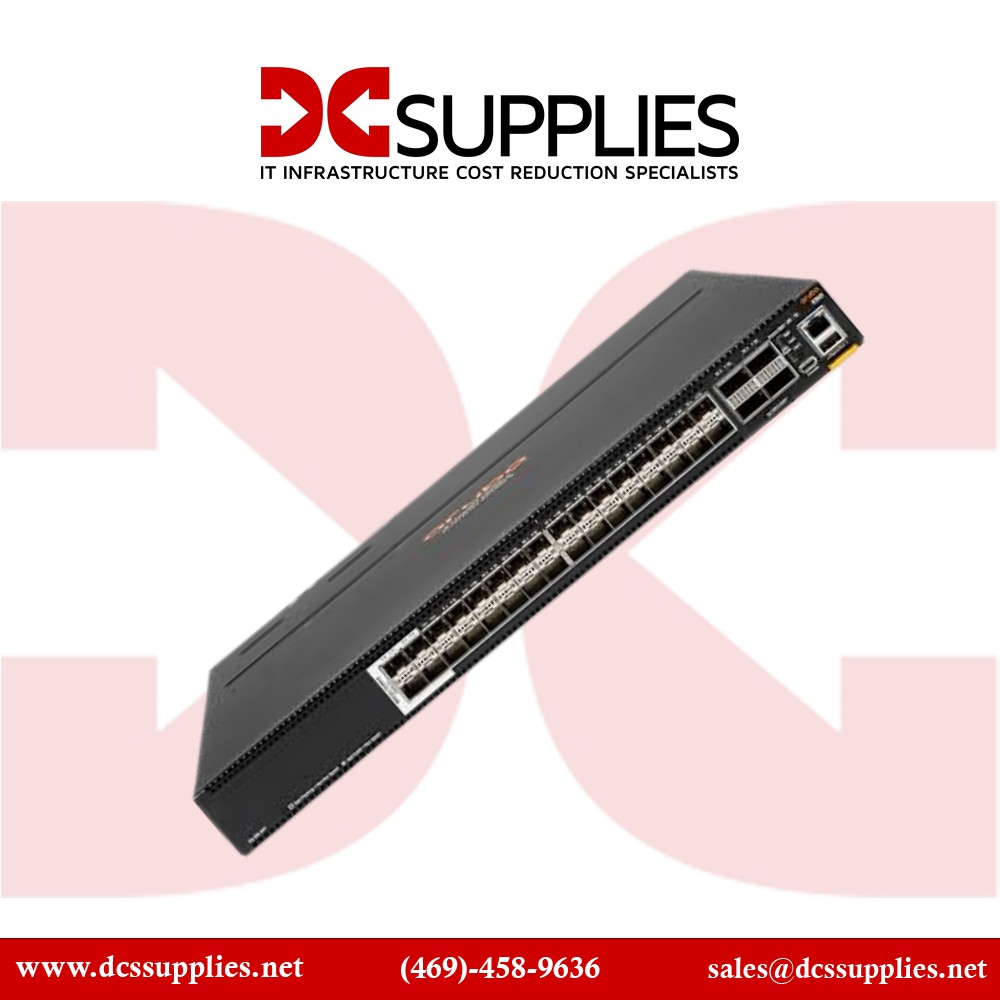

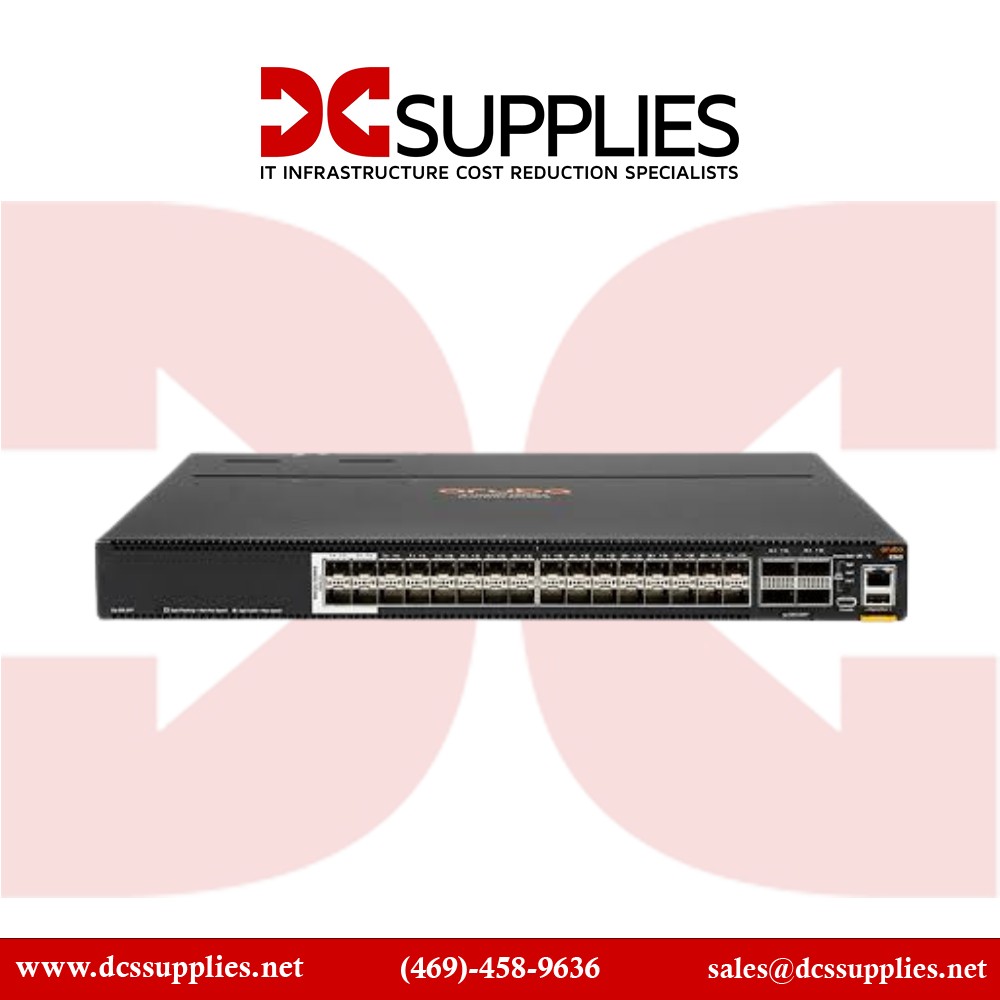

HPE Aruba JL700A 8360-32Y4C 32 Ports Gigabit Ethernet Switch View larger
Previous Next

HPE JL700A Aruba CX 8360-32Y4C Managed Network Switch 32-Port L3

New

High-performance 32-port

×




  • New

Detailed Specifications

HPE JL700A

Aruba CX 8360-32Y4C Managed Network Switch – 32-Port L3 Managed (MACsec)

The HPE Aruba JL700A CX 8360-32Y4C is a high-performance Layer 3 managed switch, part of the agile ArubaCX 8360  family. Designed for modern enterprise campus cores and dynamic data center environments, it features 32 ports capable of 1/10/25 GbE via SFP/SFP+ or SFP28, with selectable breakout and uplink flexibility including 40/100 GbE via QSFP+/QSFP28. Its compact 1U rackable form factor and advanced MACsec support ensure both scalability and security, making it a smart fit for organizations undergoing network modernization or requiring robust, high-throughput aggregation. Ideal for IT teams seeking a future-ready, flexible switch that delivers resilient network infrastructure with simplified management and automation.

Features

The Aruba CX 8360-32Y4C brings exceptional flexibility and performance to the core and aggregation layers of enterprise and data center networks. With 32 reconfigurable ports supporting up to 25 GbE and uplink capability via QSFP+/QSFP28 for 40/100 GbE connections, the device caters to evolving bandwidth needs while consolidating cabling and slot usage . Its integrated MACsec ensures encrypted traffic over untrusted networks—ideal for securing aggregation links or campus uplinks Powered by Aruba’s AOS-CX operating system, the switch supports programmable automation through RESTful APIs and Python scripting, with enhanced visibility via the Network Analytics Engine. High availability is built in with VSX dual-chassis redundancy and hot-swappable dual power supplies and fans Whether deployed in campus cores, virtualized data centers, or dense aggregation layers, the JL700A offers agile deployment, robust security, and high throughput in a compact chassis.

Advanced Options

Built for demanding network environments, the JL700A delivers unmatched switching capacity—2.4 Tbps and around 1,145 Mpps—ensuring line-rate performance even at full port throughput . With a robust 1.8 GHz quad-core CPU, 16 GB RAM, and 32 GB flash, it handles complex routing, ACLs, and telemetry tasks without strain . MAC Address table and host route table capacities are expansive, supporting over 212,000 MAC entries and over 600,000 routes for both IPv4 and IPv6

Product Key Features

  • 32 reconfigurable 1/10/25 GbE ports (SFP/SFP+/SFP28)

  • Uplinks via 4 x QSFP+/QSFP28 (40/100 GbE), breakout capable

  • MACsec encryption on core ports

  • 2.4 Tbps switching capacity, ~1,145 Mpps forwarding rate

  • Redundant power supplies and hot-pluggable fans

  • ArubaAOS-CX with REST API, Python scripting, and NAE advanced analytics

Reliability & Performance

Redundancy is paramount: the switch includes dual hot-swappable power supplies and fan modules, providing N+1 failover and front-to-back airflow crucial for data center deployments . Its advanced Layer 2/3 feature set—including BGP, OSPF, VRF-Lite, IPv6, QoS, ACLs, multicast services, and VXLAN—supports demanding enterprise and cloud infrastructures Whether routing high-density traffic or securing sensitive interconnects with MACsec, the device ensures both performance and resilience in any modern infrastructure.

Key Features :

  • 32 x 1/10/25 GbE SFP/SFP+/SFP28 ports

  • 4 x 40/100 GbE QSFP+/QSFP28 uplinks (breakout capable)

  • MACsec encrypted peer connectivity

  • 2.4 Tbps switching capacity, ~1,145 Mpps

  • ArubaAOS-CX with REST APIs and Python support

  • NAE telemetry and analytics engine

  • VSX high-availability support

  • Dual hot-swappable power supplies and fan modules

  • 16 GB RAM, 32 GB flash; 1.8 GHz quad-core CPU

  • Layer 3 advanced routing and VXLAN support

SpecificationDetails
Model Number JL700A (Aruba CX 8360-32Y4C)
Type Layer 3 Managed Network Switch
Port Configuration 32 × 1/10/25 GbE (SFP/SFP+/SFP28), 4 × 40/100 GbE (QSFP+/QSFP28)
MACsec Support Yes (available on select high-speed ports)
Switching Capacity 2.4 Tbps
Forwarding Rate ~1,145 Mpps
CPU / Memory / Storage 1.8 GHz 4-core CPU, 16 GB RAM, 32 GB Flash
ASIC Buffer 32 MB packet buffer
HA Features Dual hot-swappable PSUs & fans, VSX support
Management Interfaces RJ-45 serial, USB-C console, RJ-45 Ethernet mgmt, USB-A
Routing & Protocols BGP, OSPF, VRF-Lite, IPv6, IPv4, Multicast, VXLAN
Form Factor & Cooling 1U rack-mount; front-to-back airflow
Dimensions (H×W×D) ~1.73 × 17.4 × 16.0 in (44 × 442.5 × 406.4 mm)
Weight ~18 lb (8.2 kg) fully populated
Power Supplies 2 × internal 550 W (N+1 redundant)
Environmental Operating 0–45 °C up to 5,000 ft; 15–95% RH non-condensing
