Netgear GSM4212UX-100NAS M4250 Gigabit Compliant Ethernet Switch View larger
Previous Next

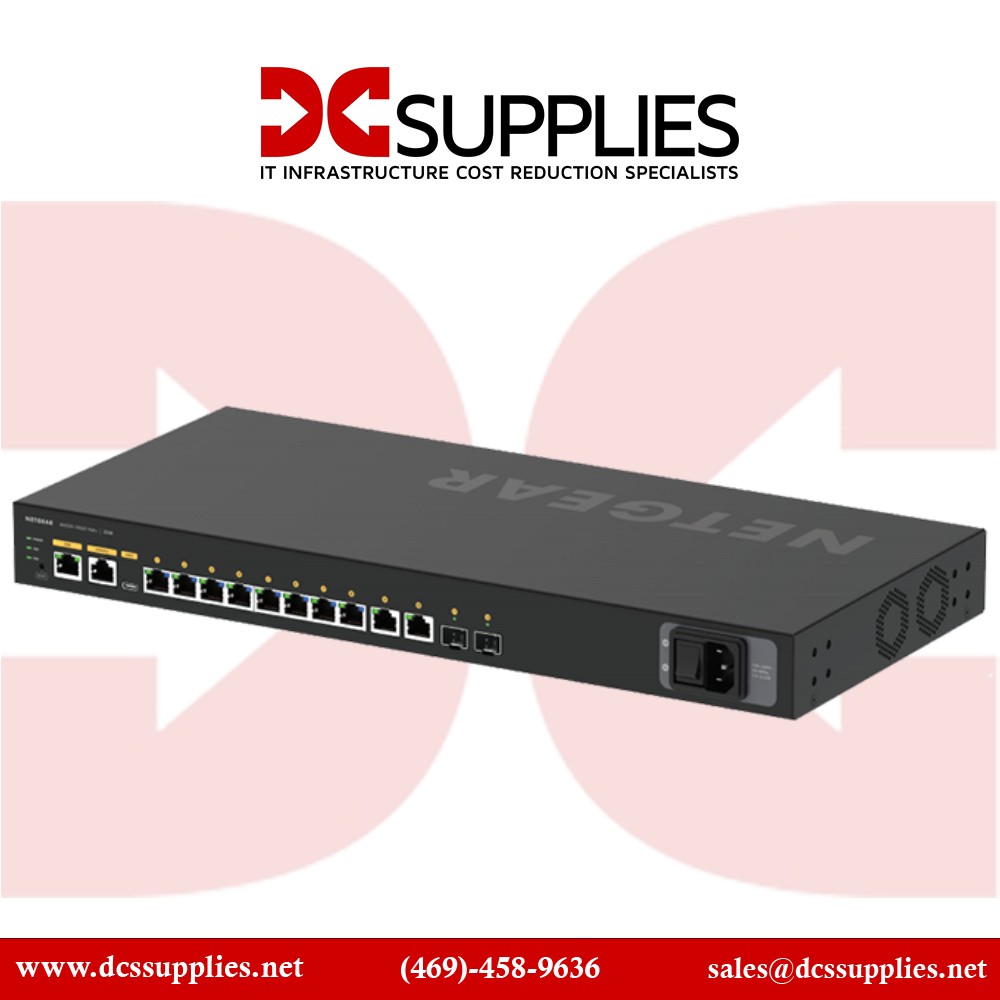

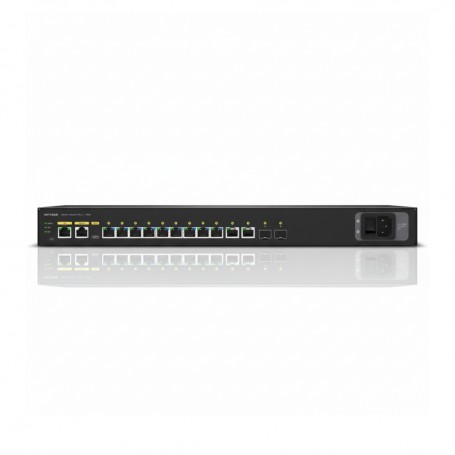

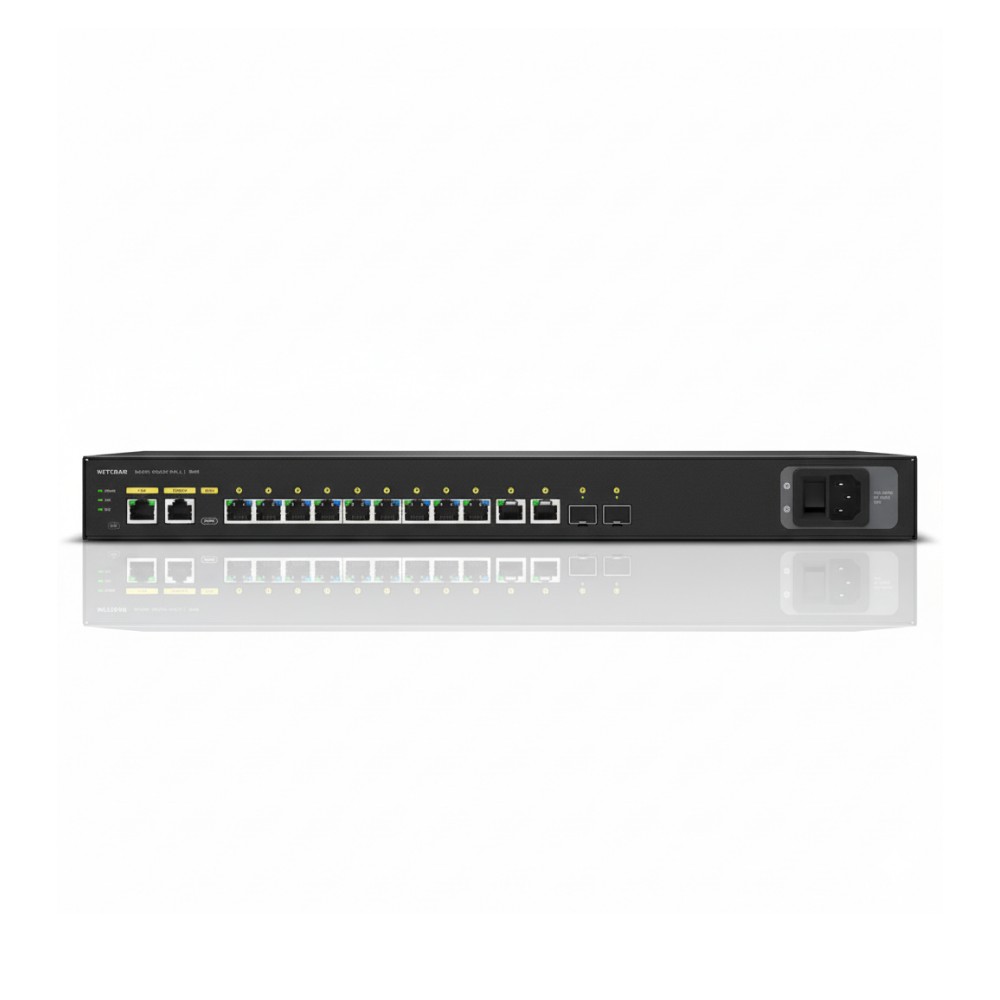

Netgear GSM4212UX-100NAS M4250 Gigabit Compliant Ethernet Switch

New

Netgear

×




  • New

Detailed Specifications

Netgear GSM4212UX-100NAS

M4250 Gigabit Compliant Ethernet Switch

The GSM4212UX‑100NAS is a high-density, AV-ready managed switch in NETGEAR’s M4250 series, built for demanding AV-over-IP environments. It combines eight ultra-high-power PoE++ ports, dual 10 GbE uplinks, intuitive AV interface, and enterprise-layer routing—all designed for rack-based AV studios, live venues, and corporate installations.

Features

This switch supports AV streamers and recorders with 90 W Ultra90 PoE++ per port (720 W total), eliminating the need for separate power injectors Powered by a 60 Gb/s switching fabric and forwarding rate of ~44.6 Mpps, this switch maintains full performance under load.

Advanced Options

Dual 10 GbE SFP+ uplinks plus Ethernet uplinks accommodate high-throughput backbone needs. Instantly functional with IGMP Plus™, and featuring a purpose-built AV GUI that includes audio/video profiles for Dante, NVX, AES67, NDI and more—all plug-and-play for AV deployments.

Product Key Features

  • 300GB enterprise-grade storage capacity

  • 10,000 RPM for high-speed performance

  • SAS 6Gb/s interface ensures fast data transfer

  • Hot-swappable for zero-downtime maintenance

  • Compatible with HP ProLiant and enterprise servers

  • Durable, energy-efficient design for 24/7 uptime

Reliability & Performance

Fan control enables completely silent operation when conditions allow, while rear-facing port layout offers a sleek, cable-centric install. Comprehensive Layer 2 and 3 features, including static/IP routing, DHCP, IPv6, jumbo frames (12 KB), ACLs, storm protection, and RADIUS/DoS safeguards ensure robust network integrity

Key Features (Bullet List)

    • 8× 1 GbE Ultra90 PoE++ (90 W each; 720 W total)

    • 2× 10 GbE SFP+ uplinks; 2× 1 GbE RJ‑45 uplinks

    • AV GUI with port profiles; IGMP Plus™

    • Layer 2/3: VLAN, QoS, static/RIP/PIM, DHCP, IPv4/IPv6

    • Security: ACLs, storm control, DoS protection, RADIUS

    • Jumbo frames (12 KB), 16K MAC, 16 Mb buffer

    • Rear-port I/O and reversible rack design

    • Fanless / quiet / full-speed cooling modes

SpecificationDetails
Model Number GSM4212UX‑100NAS (M4250‑10G2XF‑PoE++)
Ports 8× 1 GbE RJ‑45 PoE++; 2× 1 GbE RJ‑45 uplinks; 2× 10 GbE SFP+
PoE Power 90 W per PoE port; 720 W total budget
Switch Fabric 60 Gb/s non-blocking
Forwarding Rate 44.64 Mpps
MAC Table 16 K entries
Packet Buffer 16 Mb
Jumbo Frames Up to 12,000 bytes
Routing & Protocols VLAN, QoS, static/RIP/PIM, DHCP server, IPv4/IPv6
Security ACLs, storm control, DoS prevention, RADIUS
Management AV & IT GUI, CLI, Telnet, SSH, SNMP
Cooling Modes Fanless / Quiet / Full-speed
Mounting 1U rack; ports rear-facing; reversible mounting options
Dimensions 440 × 200 × 43.2 mm (1U)
Weight ~3.8 kg (8.4 lb)
Power Consumption Idle ~26 W; Max ~838 W
