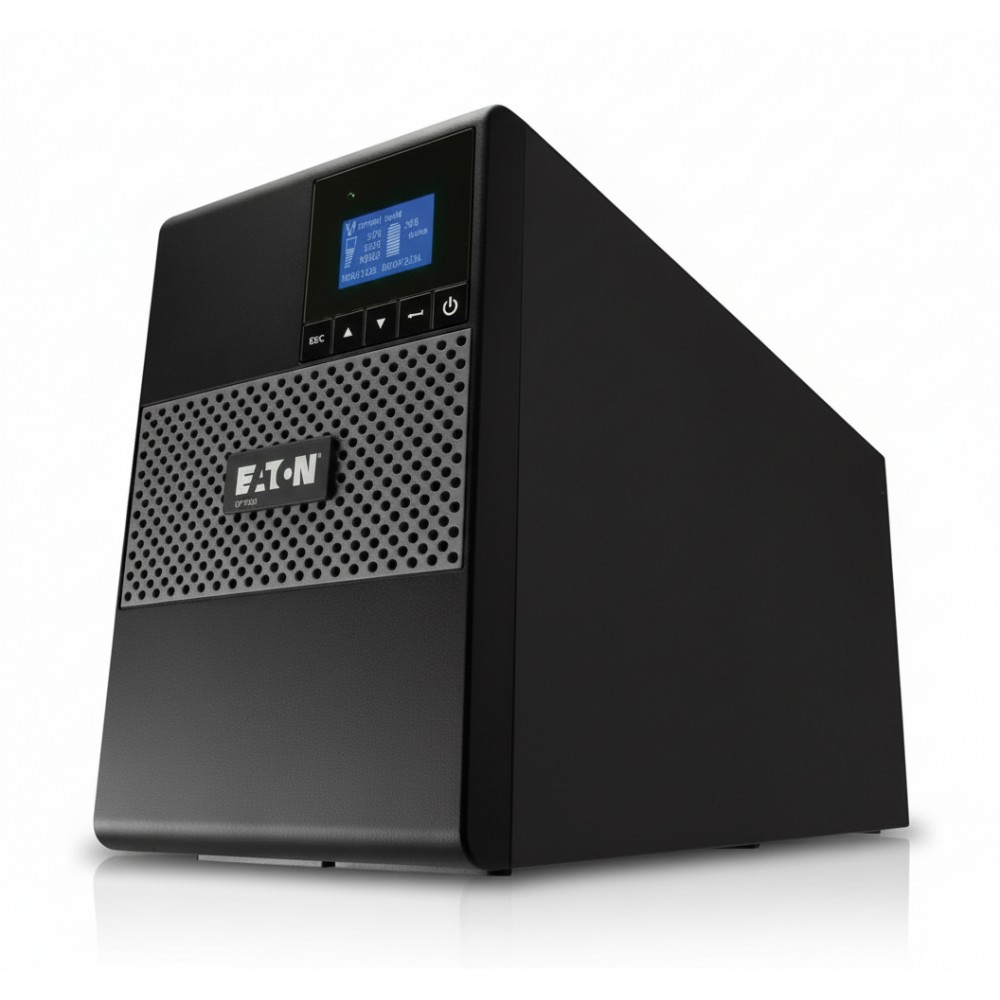

Eaton 5P750 UPS 750VA 600W 120V True Sine Wave Tower UPS Network Card Optional View larger

Eaton 5P750 Tower Line-Interactive UPS 750 VA 600 W

New

In Stock

Tower UPS, 750 VA / 600 W line-interactive
×




$438.00

  • New

Detailed Specifications

Eaton 5P750 – Tower UPS 750 VA / 600 W

Overview :

The Eaton 5P750 is a line-interactive uninterruptible power supply (UPS) designed for IT engineers to protect servers, switches and storage in network closets or small data centre environments. It provides 750 VA (600 W) of backup capacity and pure sine-wave output, which means compatible with active-PFC servers and networking equipment when mains power fails. The unit fits into tower deployments—typically branch offices, edge compute sites or campus server rooms—offering monitoring, hot-swappable batteries and advance warning of battery health so technicians can schedule service rather than deal with surprise downtime. It integrates via USB and RS-232 ports and offers a communication slot for remote management with optional network card installed for full access and alerts.

Key Features :

  • 750 VA / 600 W output rating supports small server racks

  • True sine-wave output for compatibility with active-PFC loads

  • ABM® three-stage charging extends battery service life significantly

  • LCD graphical interface and RS-232/USB communications for monitoring

Specifications :

SpecificationValue
Brand Eaton
Part Number 5P750
Product Type Tower Line-Interactive UPS
Output rating (VA / W) 750 VA / 600 W
Input connection 5-15P (6 ft cord)
Output receptacles 8 × NEMA 5-15R
Output nominal voltage 120 V default (100/120/127 V selectable)
Output voltage range 102-132 Vac
Output frequency 50/60 Hz
Efficiency Up to 97 %
Dimensions (H × W × D) 9.1 in × 5.9 in × 13.6 in
Weight 23.6 lb
Communications ports RS-232, USB (HID) standard
Warranty 3 years electronics & batteries (with registration)
Input voltage range 89-151 Vac (adjustable to 70-153 Vac)
Operating temperature 0 °C to 35 °C
