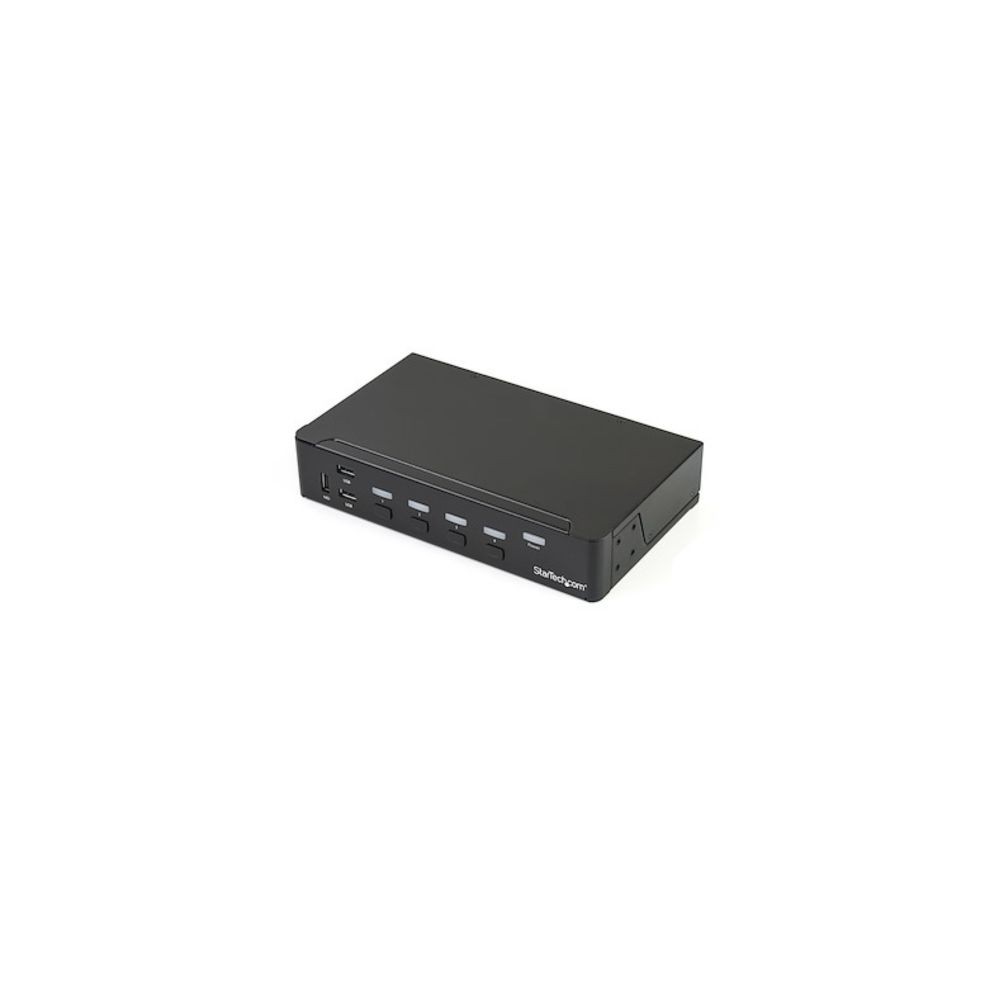

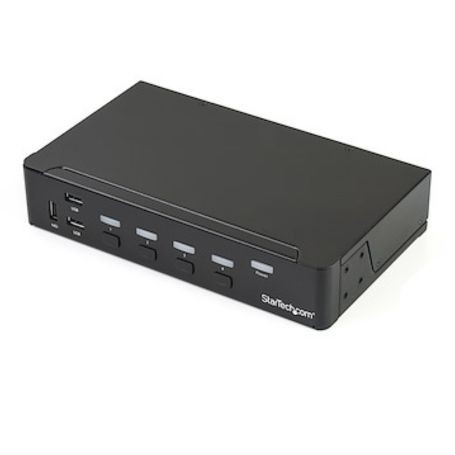

StarTech SV431DPU3A2 4 Port DisplayPort USB 3 0 KVM Switch View larger

StarTech SV431DPU3A2 4 Port DisplayPort USB 3 0 KVM Switch

SV431DPU3A2

New

4‑port DisplayPort USB3 KVM switch
×




Detailed Specifications

StarTech SV431DPU3A2 4 Port DisplayPort USB 3 0 KVM Switch

overview

The StarTech SV431DPU3A2 is a 4‑port DisplayPort KVM switch that lets engineers and IT operators control four DisplayPort‑equipped systems from a single console (monitor, keyboard, mouse) while sharing USB peripherals via an integrated USB 3.0 hub. It supports up to 3840×2160 (4K) @ 30 Hz, enabling high‑resolution display switching in labs, control rooms, trading desks, and multi‑system workstations. The built‑in USB 3.0 hub automates peripheral switching with up to 5 Gbps throughput, ideal for large USB storage or high‑speed devices. The unit also includes independent analog audio switching. Not suitable for matrix or multi‑monitor applications that require separate outputs per host.

key features

  • supports 4K @ 30 Hz DisplayPort video switching
  • built‑in USB 3.0 hub for shared peripheral devices
  • independent 3.5 mm analog audio switching
  • push‑button & hotkey host selection controls
  • rackmountable with optional 1U bracket

specifications

SpecificationDetail
Brand StarTech.com
Part Number SV431DPU3A2
Product Type 4‑port DisplayPort USB 3.0 KVM switch
Display Support Single monitor (DP)
Max Resolution 3840 × 2160 @ 30 Hz
Video Interface DisplayPort
USB Support USB 3.0 hub (5 Gbps) + USB HID
Audio 3.5 mm analog in/out
Switching Push‑button, hotkey
Host Connectors 4 × DP, 4 × USB‑B, 4 × Audio in
Console Interfaces 1 × DP, 4 × USB‑A hub, audio out
Power AC adapter 100–240 VAC
Operating Temp 0 °C to 40 °C
Compliance TAA, RoHS, CE
Form Factor Desktop; optional rack mount
Indicators Port selection LEDs
