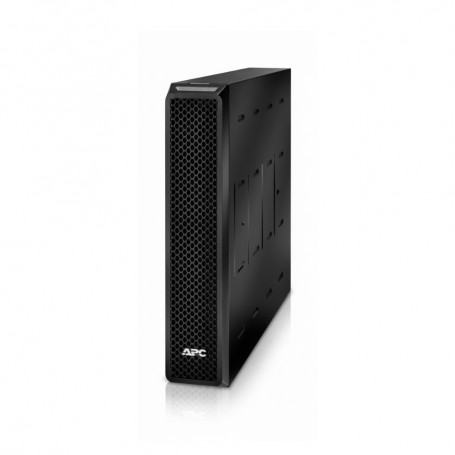

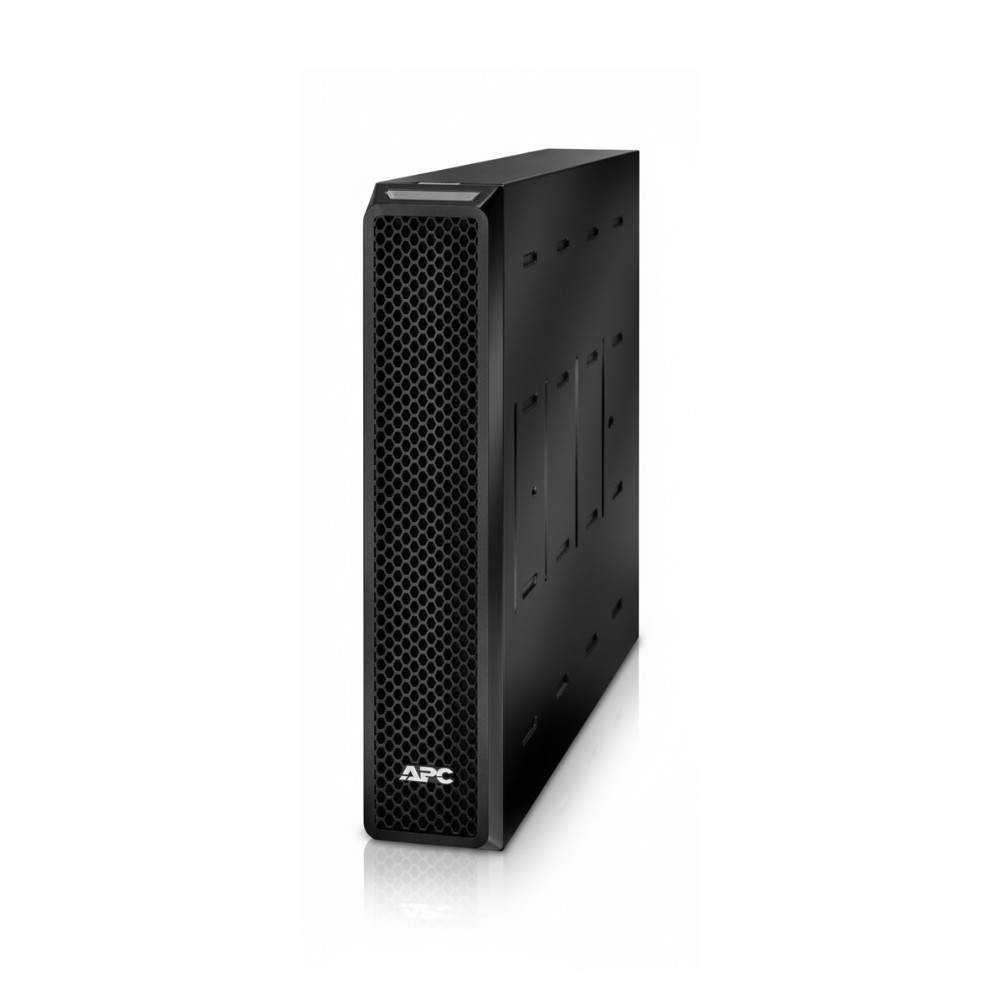

APC SRT72BP Smart-UPS On-Line Battery Pack 72V View larger
Previous Next

APC SRT72BP 72 V External Battery Pack for SRT UPS On Line

New

In Stock

72 V SRT External Battery Pack
×




$810.43

  • New

Detailed Specifications

APC SRT72BP – 72 V External Battery Pack for SRT UPS

Overview

The APC SRT72BP is an external battery pack designed to extend the runtime of SRT On-Line 2.2 kVA UPS systems. It provides additional battery capacity by supplying 72 V DC matching the UPS battery bus. You can stack up to 10 battery packs in series for greater backup duration. In real deployments, SRT72BP is used in mission-critical racks where extra runtime is needed during power outages or generator transitions. Because it’s a plug-in module, integration is straightforward—no major rewiring needed if aligned with the UPS model.

This pack is compatible with SRT 2200X/2200RMX and related 2.2 kVA models when configured for external battery use. It’s hot-swappable and designed for consistent battery performance across modules. With proper UPS-battery matching, you’ll get predictable, scalable runtime without compromising system stability.

Key Features

  • 72 V external battery pack compatible with SRT 2.2 kVA UPS systems

  • Stackable—connect up to 10 units for extended runtime

  • Hot-swappable design allows serviceability without bringing down loads

  • Predictable performance with matching battery capacity per pack

Technical Specifications

SpecificationDetail
Brand APC
Part Number SRT72BP
Product Type External Battery Pack
Key Specification 1 Nominal Voltage: 72 V DC
Key Specification 2 Compatible with SRT 2.2 kVA UPS models
Key Specification 3 Stackability: up to 10 packs in series
Management Monitored via UPS controls (voltage, state)
Power Requirements DC output to UPS battery bus
Dimensions & Weight ~23.4 × 17 × 3.3 in / ~59.4 × 43.2 × 8.5 cm; ~74.7 lb / 33.9 kg
