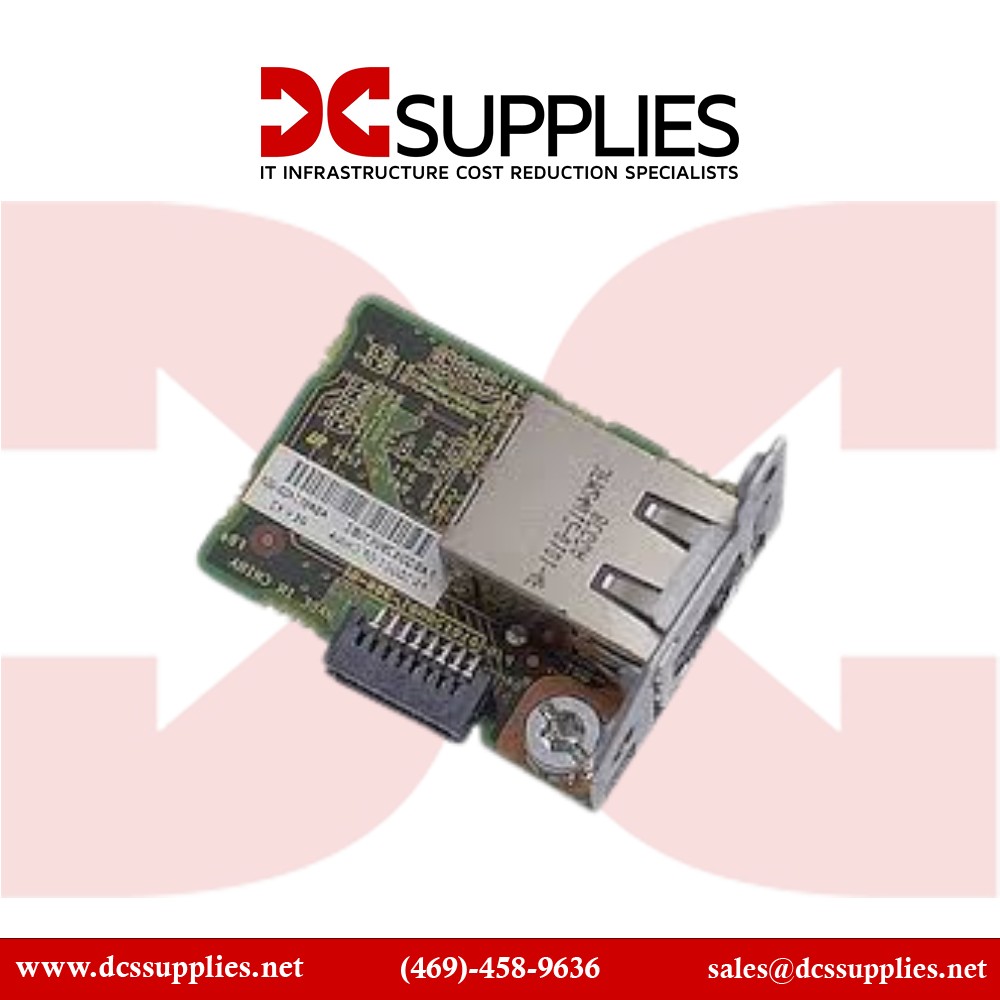

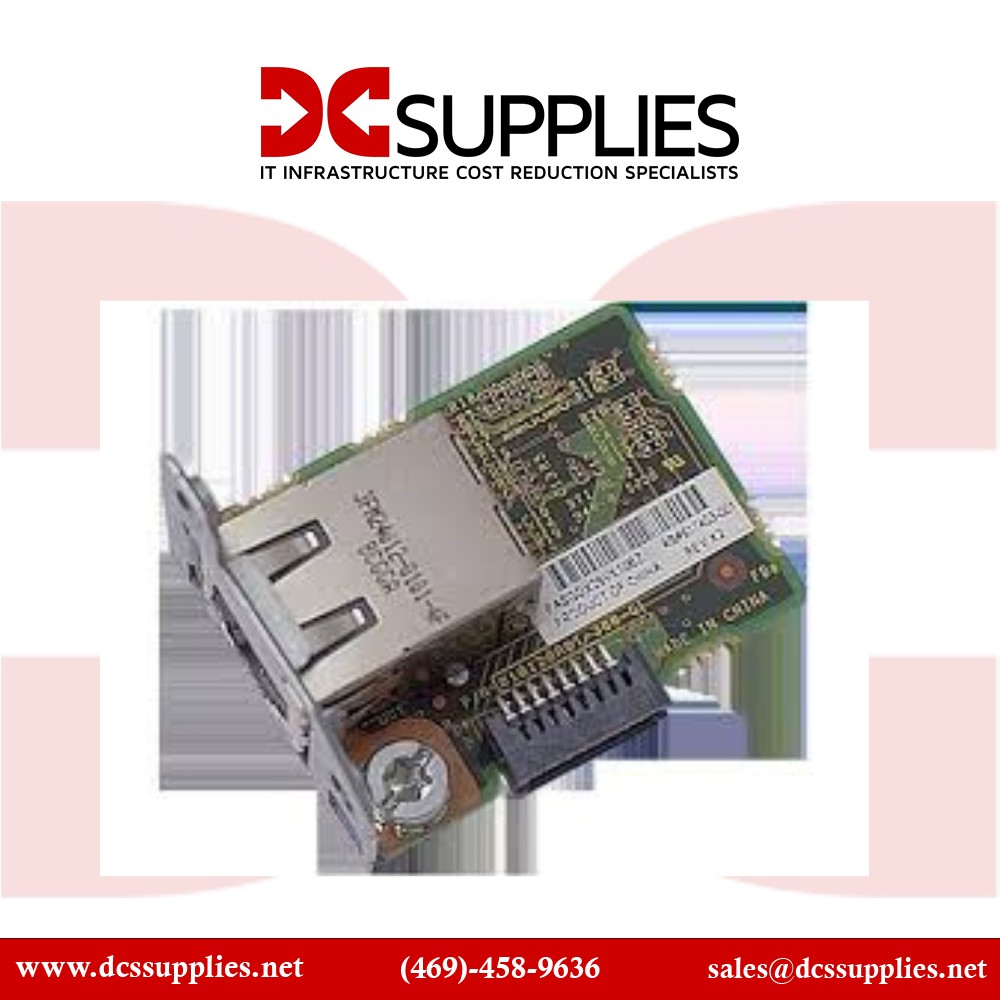

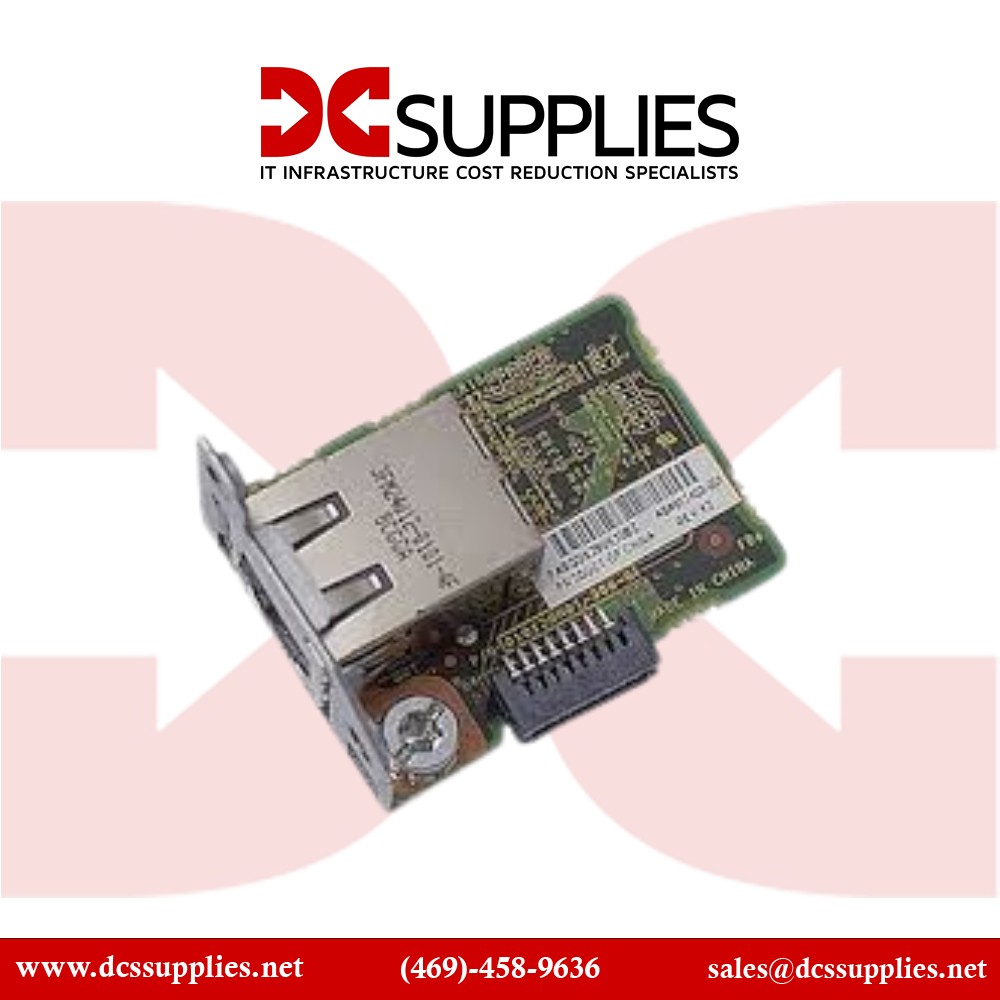

HPE 674845-B21 Dedicated iLO Management Port Kit Expansion Module View larger
Previous Next

HPE 674845-B21 Dedicated iLO Management ModulePort Kit

674845-B21

New

Refurbished dedicated iLO port module delivers isolated 1 Gb management access for ProLiant servers.
×




Detailed Specifications

HPE 674845-B21

Dedicated iLO Management Module Port Kit

TheHPE674845-B21 Dedicated iLO Management Port Kit provides a reliable, separate Ethernet port dedicated to IntegratedLights-Out (iLO) remote management—ideal for ProLiant servers where the standard embedded iLO port is unavailable or when enhanced manageability is required. This plug-in expansion module delivers full iLO functionality over a dedicated 1 Gb RJ-45 connection, granting administrators secure out-of-band access for tasks like power control, remote console, and firmware updates. It’s perfect for data centers and enterprise environments prioritizing resilient, hassle-free remote operations.

Features

Designed for seamless integration, this module installs into a single expansion slot on select HPE ProLiant servers and is preconfigured to support common Gen8 models such as the DL360p, DL380p, and ML350p. Its 1 Gb wired interface ensures fast and stable connectivity for iLO management traffic, separate from regular network interfaces. With broad support for protocols like HTTPS, SSH, SNMP, IPMI 2.0, Telnet, and HTTP, this port enables comprehensive remote functionality even when servers are powered off or unresponsive.

Advanced Options

This module delivers robust and secure remote server management by isolating iLO traffic from production network activity. Its dedicated port ensures uninterrupted out-of-band access for power cycling, firmware updates, and remote BIOS configuration—even if the main OS is offline.

Product Key Features

  • Dedicated 1 GbE RJ-45 port for iLO management traffic

  • Plug-in expansion module form factor

  • Compatible with HPE ProLiant DL360p Gen8, DL380p Gen8, ML350p Gen8 servers

  • Supports SNMP, IPMI 2.0, SSH, Telnet, HTTP, HTTPS, Wake-on-LAN, PXE, IPv6

  • Separate management channel ensures network isolation and reliability

Reliability & Performance

With low 1.5W power usage and standard operating specifications, the module enhances manageability without adding overhead. Its compatibility with multiple management protocols ensures flexibility and ease of integration into diverse infrastructure environments.

Key Features :

    • Dedicated 1 GbE RJ-45 port for iLO

    • Plug-in module form factor

    • Compatible with HPE ProLiant Gen8 servers (DL360p, DL380p, ML350p)

    • Supports SNMP, IPMI 2.0, SSH, Telnet, HTTP, HTTPS, WoL, PXE, IPv6

    • Ensures isolated and reliable out-of-band management

SpecificationDetails
Model Number 674845-B21
Type Dedicated iLO Management Port Kit (Expansion Module)
Port Interface 1 × 1 GbE RJ-45
Form Factor Plug-in Expansion Module
Compatible Servers HPE ProLiant DL360p Gen8, DL380p Gen8, ML350p Gen8
Management Protocols SNMP, IPMI 2.0, SSH, Telnet, HTTP, HTTPS, Wake-on-LAN, PXE, IPv6
Power Consumption Approx. 1.5 W
Operating Temperature ~10 °C to 35 °C (50 °F to 95 °F)
Operating Humidity 10% to 90% non-condensing
Condition Refurbished
Warranty 90 Days
