HPE 572216-001 Virtual Connect 8GB expansion module 20-Port Fibre Channel View larger
Previous Next

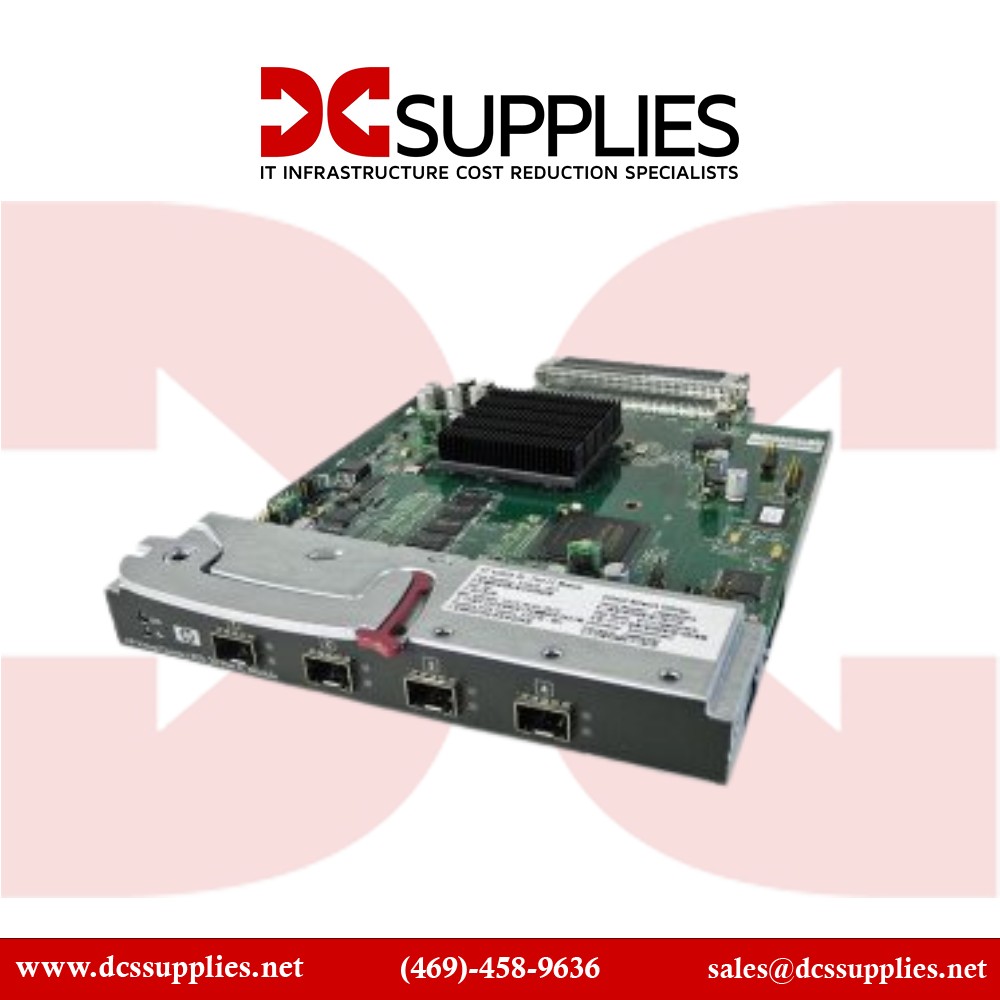

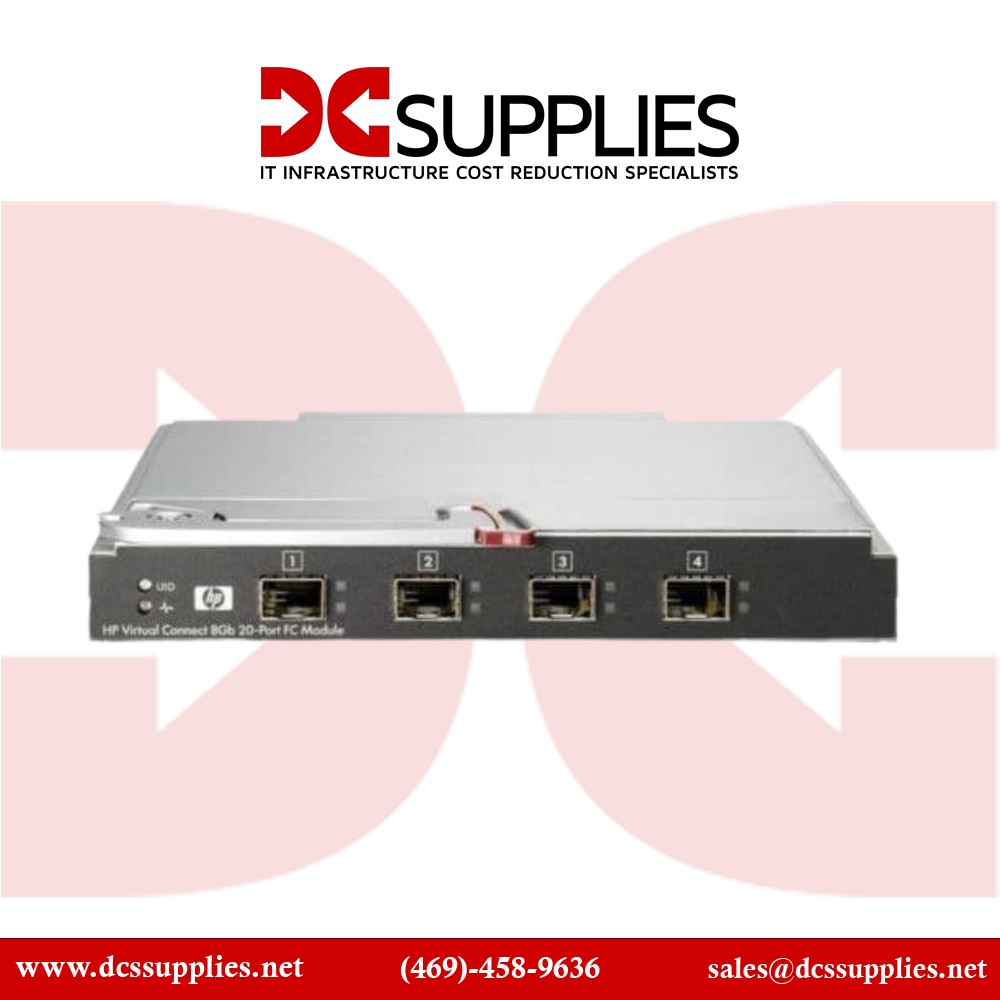

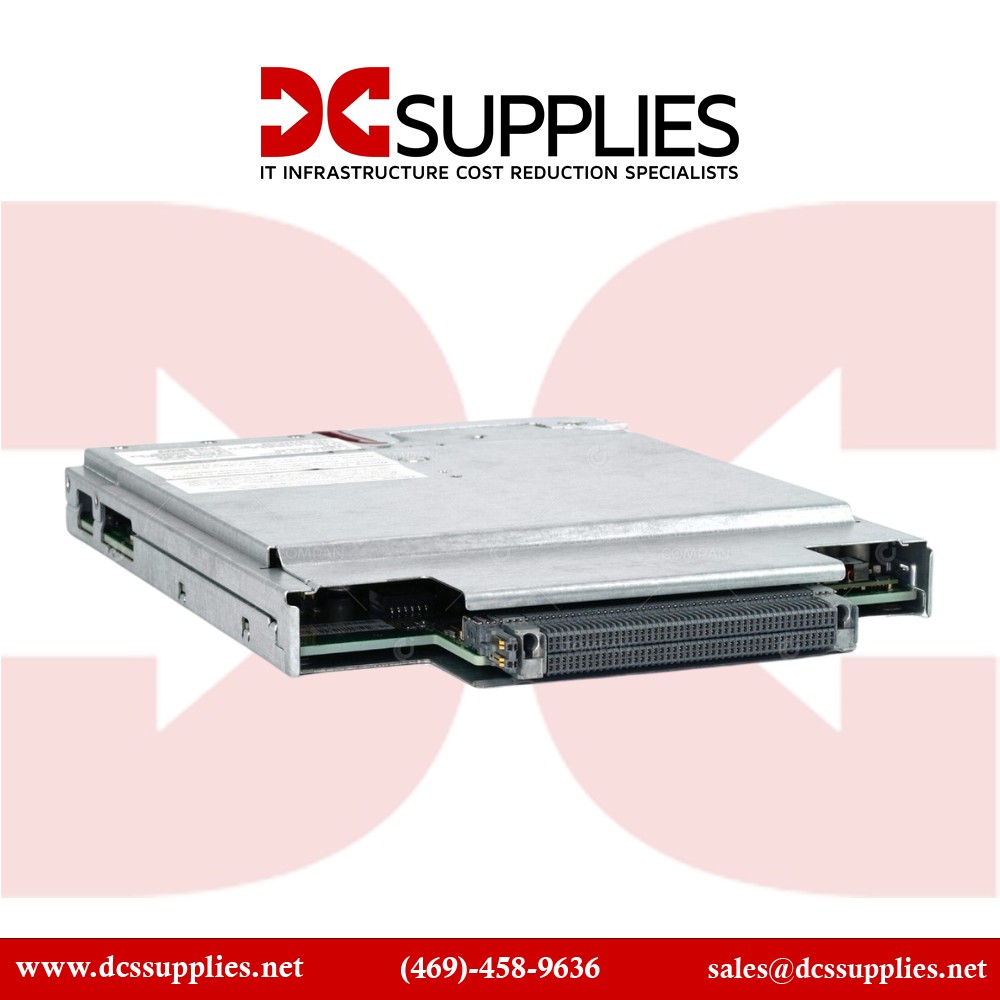

HPE 572216-001 Virtual Connect 8GB 20-Port Fibre Channel Module

572216-001

New

20-port 8Gb Fibre Channel module forHPE c-Class...

×




Detailed Specifications

HPE 572216-001

Virtual Connect 8GB 20-Port Fibre Channel Module

The HPE572216-001 Virtual Connect 8GB 20-Port Fibre Channel Module is designed to integrate seamlessly into HPE c-Class BladeSystem enclosures, providing high-performance connectivity to storage area networks (SANs). With 20 ports operating at 8Gb speeds, this module facilitates efficient data transfer and management for enterprise environments. It supports up to 128 virtual machines per physical server, allowing each to access separate storage resources, even if the virtual server is re-allocated within the BladeSystem. This capability simplifies storage management and enhances operational flexibility. The module is compatible with all NPIV-capable switches and requires minimal management to deploy, making it an ideal solution for organizations seeking to streamline their SAN connectivity.

Features

The HPE 572216-001 Virtual Connect 8GB 20-Port Fibre ChannelModule offers enhanced Virtual Connect capabilities, allowing up to 128 virtual machines running on the same physical server to access separate storage resources. Provisioned storage resources are associated directly with specific virtual machines, even if the virtual server is re-allocated within the BladeSystem. This approach decouples server connections from SAN fabrics, simplifying SAN layout by reducing cables without adding switches to the domain. It also enables rapid server changes, reducing the time required from days to minutes. The module's compatibility with NPIV-capable switches ensures interoperability and simplifies deployment, making it a reliable choice for enterprise SAN environments.

Advanced Options

The HPE 572216-001 Virtual Connect 8GB 20-Port Fibre ChannelModule is engineered for enterprise environments, offering robust performance and reliability. Its 8Gb Fibre Channel speeds ensure efficient data transfer, while the 20-port configuration provides ample connectivity for high-demand applications. The module's support for up to 128 virtual machines per physical server enhances operational flexibility and scalability.

Product Key Features

  • 20 ports operating at 8Gb Fibre Channel speeds

  • Supports up to 128 virtual machines accessing separate storage resources

  • Decouples server connections from SAN fabrics, reducing cable complexity

  • Compatible with NPIV-capable switches for enhanced interoperability

  • Simplifies SAN layout by eliminating the need for additional switches

  • Enables rapid server changes, reducing downtime

Reliability & Performance

By decoupling server connections from SAN fabrics, it simplifies SAN layout and reduces cable complexity, contributing to a more organized and efficient data center. The module's compatibility with NPIV-capable switches ensures seamless integration into existing infrastructures, while its ability to enable rapid server changes minimizes downtime and enhances overall system availability.

Key Features :

  • 20 ports operating at 8Gb Fibre Channel speeds

  • Supports up to 128 virtual machines accessing separate storage resources

  • Decouples server connections from SAN fabrics, reducing cable complexity

  • Compatible with NPIV-capable switches for enhanced interoperability

  • Simplifies SAN layout by eliminating the need for additional switches

  • Enables rapid server changes, reducing downtime

SpecificationDetails
Model Number 572216-001
Ports 20
Data Transfer Rate 8.5 Gbps
Data Link Protocol 8Gb Fibre Channel
Fibre Channel Standards FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI
Connectivity Technology Wired
Status Indicators Port Status, Link Activity, Link OK, Module Locator
Features Auto-negotiation, Manageable
Compatibility NPIV-capable switches
Form Factor Blade Module
