New StarTech PEX2PCI4 PCIe to 4 Slot PCI Expansion Chassis View larger

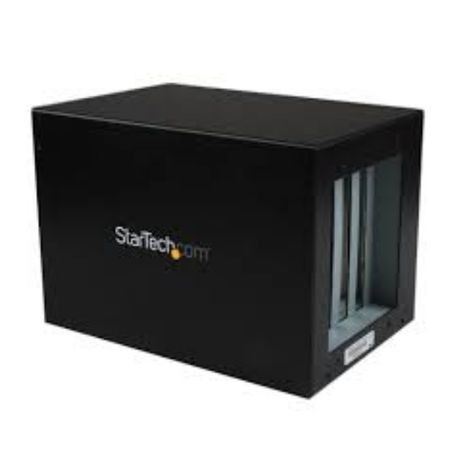

StarTech PEX2PCI4 PCIe to 4 Slot PCI Expansion Chassis

PEX2PCI4

New

PCIe to 4‑slot PCI expansion chassis
×




Detailed Specifications

StarTech PEX2PCI4 – PCIe to 4 Slot PCI Expansion Chassis

overview

The StarTech PEX2PCI4 is an external expansion chassis that adds four 32‑bit/33 MHz PCI slots to a host system via a single PCIe x1 connection, enabling legacy PCI cards to operate from systems with limited onboard expansion. It’s deployed in test benches, industrial systems, legacy hardware support environments, and workstations where additional PCI I/O cards must be added without motherboard redesign. The solution includes a PCIe host adapter card, expansion enclosure, and interconnect cable. It supports both 3.3 V and 5 V PCI cards with no drivers required. Do NOT use for PCIe device expansion beyond PCI cards (e.g., GPUs) or where high PCIe bandwidth is required; throughput is limited by the PCIe x1 link (~250 MB/s total).

key features

  • adds four external PCI expansion slots via PCIe interface
  • rugged steel chassis for system and lab deployments
  • supports both 3.3 V & 5 V add‑in PCI cards
  • plug‑and‑play with no driver or software needed
  • includes host PCIe adapter + DVI interconnect cable

specifications

SpecificationDetail
Brand StarTech.com
Part Number PEX2PCI4
Product Type PCIe to 4‑slot PCI expansion chassis
Host Interface PCI Express x1
Expansion Slots 4 × PCI (32‑bit/33 MHz)
Bandwidth Up to ~250 MB/s (shared)
Card Voltage Support 3.3 V and 5 V
Mounting External chassis (tabletop)
Cable Included DVI interconnect cable
Bracket Full & low profile PCIe adapter brackets
Power External adapter with on/off switch
Construction Steel chassis
Compliance FCC, CE, RoHS
Warranty 2 years
