Detailed Specifications

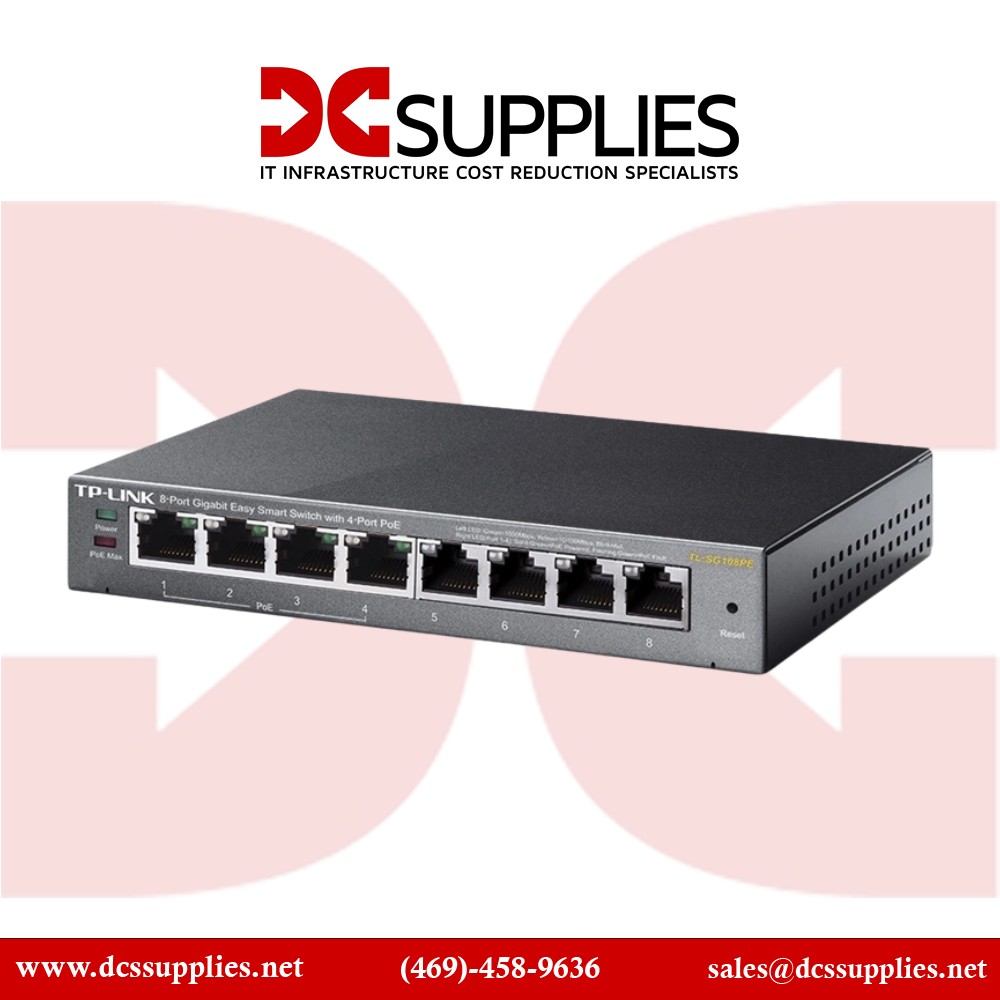

TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+
Overview :
What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Features :
- Flexible Full Gigabit 8-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 64W, together w/ 4x Gigabit Non-PoE Port for high-speed connections.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
Specifications :
| Product Name |
8-Port Gigabit Desktop Switch with 4-Port PoE+ |
| Product Type |
Ethernet Switch |
| Ethernet Technology |
Gigabit Ethernet |
| Stack Port |
No |
| Media Type Supported |
Twisted Pair |
| Total Number of Network Ports |
8 |
| PoE (RJ-45) Port |
Yes |
| Redundant Power Supply Supported |
No |
| Form Factor |
Desktop |
| Power Consumption |
5.40 W |
| Power Source |
Power Adapter |
| Layer Supported |
2 |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Network (RJ-45) |
Yes |
| Modular |
No |
| Uplink Port |
No |
| Port / Expansion Slot Details |
4 x Gigabit Ethernet PoE+
4 x Gigabit Ethernet Network
|
| PoE Budget |
64 W |
| Networking Standards |
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x
IEEE 802.1p
|
| Product Material |
Metal |
| Height |
1.1" |
| Width |
6.7" |
| Depth |
3.9" |
| Product Model |
TL-SG1008P |
| Network Technology |
10/100/1000Base-T |
| Package Contents |
- TL-SG1008P Ethernet Switch
- Power Adapter
- User Guide
|
| Limited Warranty |
3 Year |
| Twisted Pair Cable Standard |
Category 6 |
| Token Ring Port |
No |
| LRE Port |
No |
| USB |
No |
| Number of Network (RJ-45) Ports |
4 |
| Management Port |
No |
| Number of PoE (RJ-45) Ports |
4 |
| Bypass |
No |
| Product Color |
Black |
|
