NETGEAR GSM4230PX-TAANAS M4250-26G4XF-PoE+ Managed Switch View larger

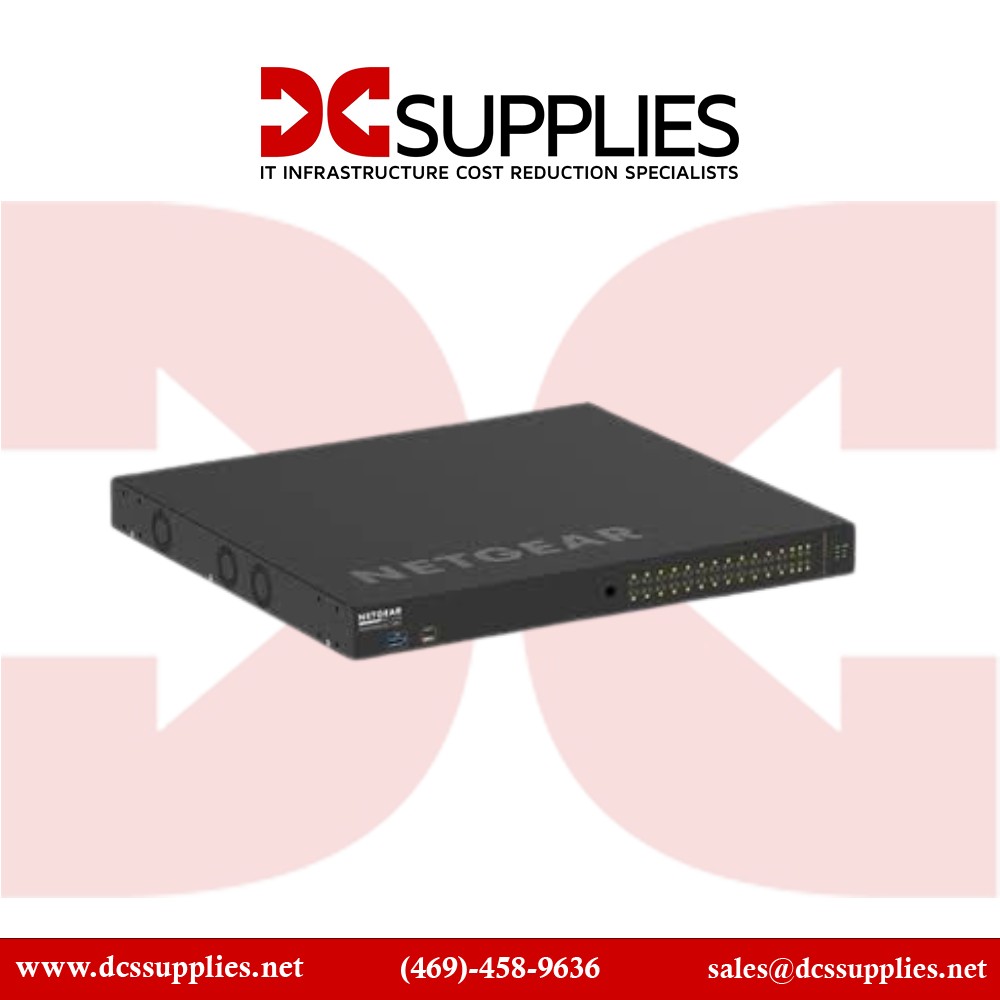

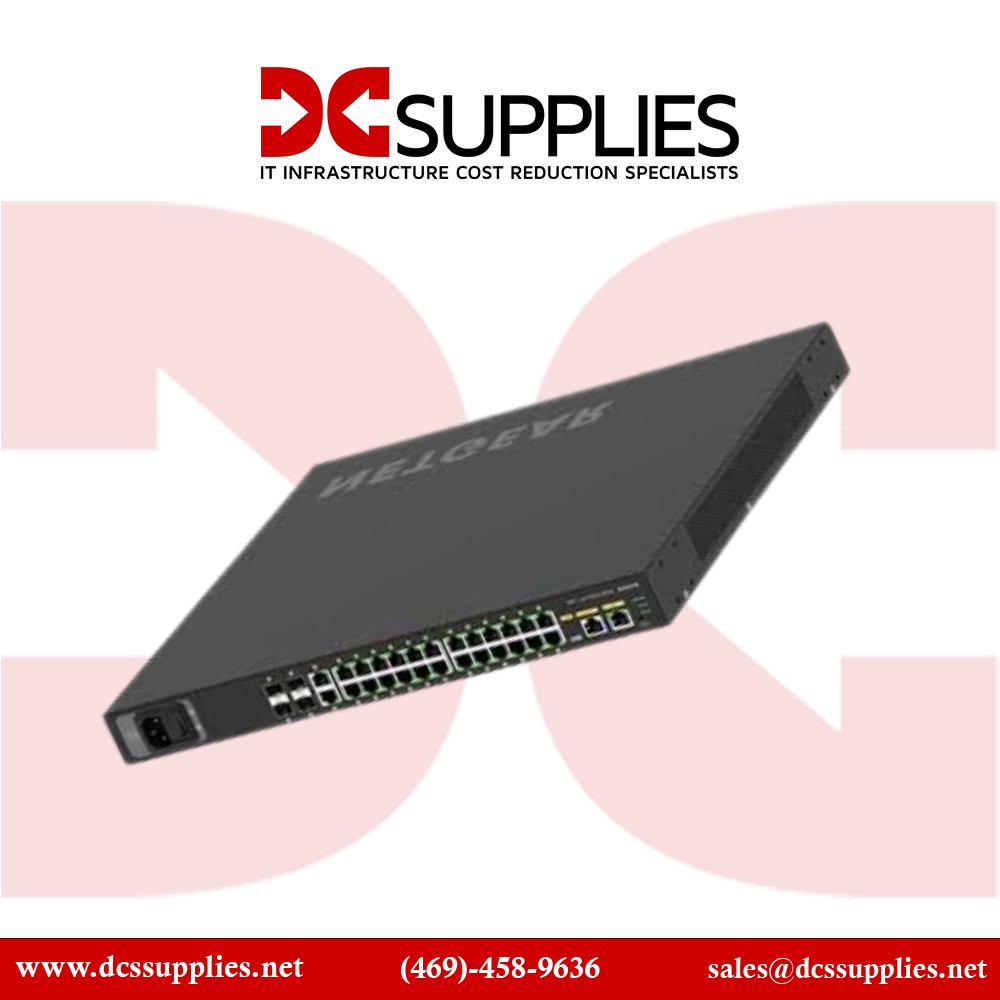

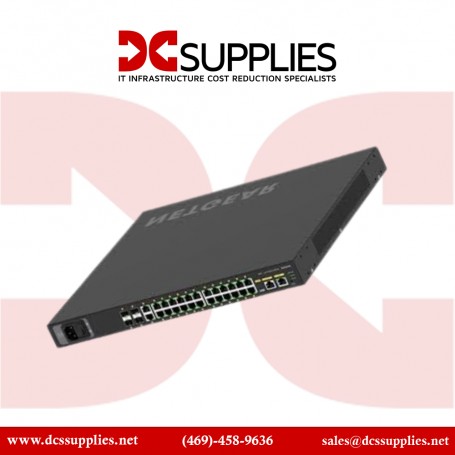

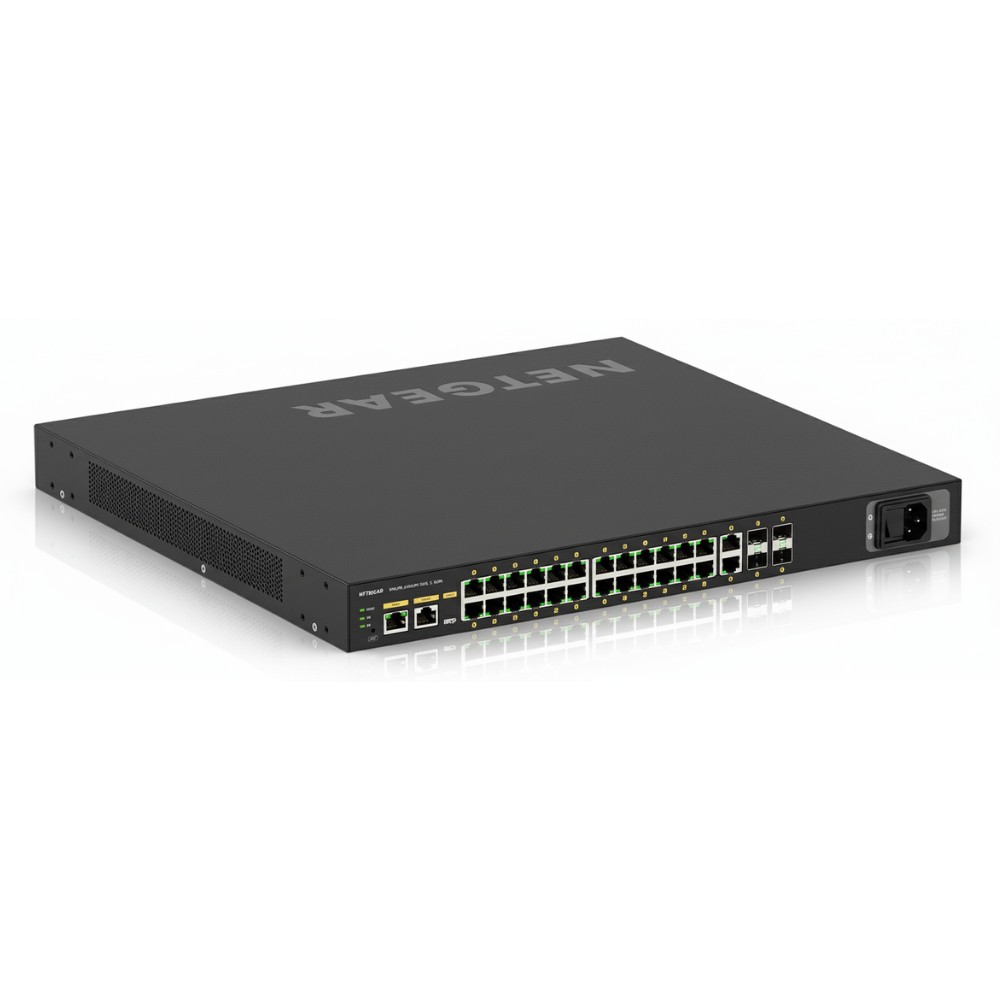

NETGEAR GSM4230PX-TAANAS Gigabit Ethernet Switch

New

Advanced Networking for Business & Enterprise Applications
×




  • New

Detailed Specifications

NETGEAR

GSM4230PX-TAANAS

30-Port Gigabit Ethernet PoE+ Managed Switch

The NETGEAR GSM4230PX-TAANAS is a powerful, fully managed 30-Port Gigabit Ethernet PoE+ switch designed for business-grade network deployments. Part of the NETGEAR M4300 series, this switch delivers enterprise-level Layer 3 functionality, PoE+ support, and flexible management in a 1U rackmount form factor. With 24 PoE+ ports, 2 dedicated SFP+ uplink ports, and 4 additional shared combo ports, this switch supports high-performance connectivity for IP phones, wireless access points, security cameras, and other power-hungry network devices.

Features

This model is ideal for mid-sized to large businesses, campus networks, and high-availability environments needing intelligent traffic control, secure management, and scalability. With hot-swap PSU options, redundant capabilities, and energy-efficient technologies, the GSM4230PX-TAANAS ensures uninterrupted network operations and lower power consumption.

Advanced Options

The NETGEAR GSM4230PX-TAANAS supports Layer 2/Layer 3 switching, including dynamic routing, multicast routing, and advanced QoS configurations. Businesses can simplify complex topologies with static/dynamic routing, and segment networks using VLANs and Access Control Lists (ACLs). The switch’s 24 PoE+ ports deliver up to 30W per port, with a total PoE budget of 480W, powering connected devices without external adapters.

Product Key Features

  • 30 Gigabit Ethernet ports total: 24 PoE+, 2 SFP+, 4 combo ports

  • 480W total PoE power budget

  • Full Layer 3 switching with dynamic/static routing

  • Redundant PSU support (modular)

  • Enterprise-grade VLAN, QoS, ACLs

  • Managed via GUI, CLI, SNMP, or NETGEAR Insight

  • 1U rackmount with internal power supply

  • Energy-efficient (IEEE 802.3az compliant)

Reliability & Performance

Engineered for mission-critical environments, the GSM4230PX-TAANAS combines high-density PoE+ with non-stop switching performance. With support for IEEE 802.3at and 802.3af, this switch powers a range of devices across long deployments without PoE injectors. The advanced security framework protects against unauthorized access, while loop prevention, IGMP snooping, and port mirroring ensure traffic is optimized and visible. A rugged metal chassis with passive and active cooling ensures thermal control under load. Redundant PSU support enhances fault tolerance, while software features such as STP, RSTP, MSTP, and LLDP extend flexibility and stability. Backed by NETGEAR’s ProSAFE Limited Lifetime Warranty, this switch delivers high availability and future-proof network growth.

Key Features :

  • 30-port managed Gigabit Ethernet switch

  • 24 × PoE+ ports (up to 30W per port)

  • 2 × 10G SFP+ uplink ports

  • 4 × 1G combo ports (RJ45/SFP)

  • 480W PoE power budget

  • Layer 2/3 switching with dynamic routing

  • VLANs, QoS, ACLs, LAGs, and IGMP Snooping

  • GUI, CLI, SNMP, and NETGEAR Insight management

  • Redundant power supply support

  • 1U rackmount chassis

Specifications :

SpecificationDetails
Model Number GSM4230PX-TAANAS
Switch Type Managed Gigabit Ethernet Switch
Total Ports 30 (24 PoE+, 2 SFP+, 4 Combo)
PoE Standard IEEE 802.3af/at (PoE+)
Total PoE Budget 480W
Uplink Ports 2 × 10G SFP+
Combo Ports 4 × 1G (RJ45/SFP shared)
Switching Capacity 128 Gbps
Layer Support Layer 2 / Layer 3
Management Interfaces Web GUI, CLI, SNMP v1/v2c/v3, NETGEAR Insight
Redundant PSU Support Yes (modular power supply option)
Dimensions (WxDxH) 17.3 × 10.1 × 1.7 in (440 × 257 × 43 mm)
Weight 8.82 lbs (4 kg)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Certifications CE, FCC, RoHS, WEEE
Warranty NETGEAR ProSAFE Limited Lifetime Warranty
