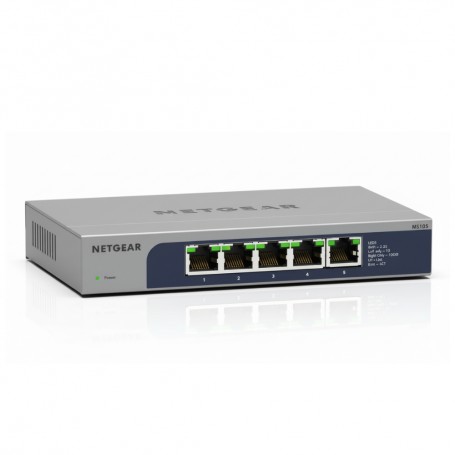

Netgear MS105-100NAS MS105 5-Port Multi Ethernet Switch View larger

Netgear MS105-100NAS MS105 5-Port Multi Ethernet Switch

New

In Stock

5-Port 2.5G Unmanaged Network Switch
×




$148.50

  • New

Detailed Specifications

NETGEAR MS105 5-Port Multi-Gigabit (2.5G) Unmanaged Switch

Overview :

The NETGEAR MS105 is a compact, unmanaged Layer 2 switch engineered to provide immediate Multi-Gigabit connectivity to bandwidth-hungry devices such as WiFi 6 access points, high-end workstations, or NAS systems. It features five auto-negotiating RJ-45 ports that automatically link at the highest supported speed (100Mbps, 1Gbps, or 2.5Gbps). With a non-blocking 25 Gbps switching fabric, this unit ensures wire-speed performance without configuration overhead. The durable metal chassis and fanless design allow for quiet, reliable deployment in any non-rack environment.

Key Features

  • Multi-Gig Connectivity: Provides five auto-negotiating RJ-45 ports supporting 100Mbps, 1Gbps, and 2.5Gbps links.
  • High-Performance Switching: Delivers a 25 Gbps non-blocking switching fabric for maximum wire-speed throughput across all ports.
  • Silent, Fanless Operation: Passive cooling in a durable metal enclosure ensures completely silent deployment in noise-sensitive areas.
  • Energy Efficient Ethernet (EEE): Includes IEEE 802.3az support to minimize power draw during periods of low traffic or port inactivity.

Technical Specifications

SpecificationDetail
Brand NETGEAR
Part Number MS105-100NAS
Product Type Multi-Gigabit Unmanaged Switch
Network Ports 5 x 100M/1G/2.5G RJ-45
Switching Bandwidth 25 Gbps
Forwarding Rate 18.6 Mpps
MAC Address Table Size 16K Entries
Jumbo Frame Support 9,720 bytes
QoS Support IEEE 802.1p
Energy Efficiency IEEE 802.3az EEE Compliant
Power Consumption (Max) 9.24W
Acoustic Noise Fanless (0 dBA)
MTBF (Hours) 1,401,743
Dimensions (W x D x H) 158 x 101 x 29 mm
Layer Supported Layer 2
