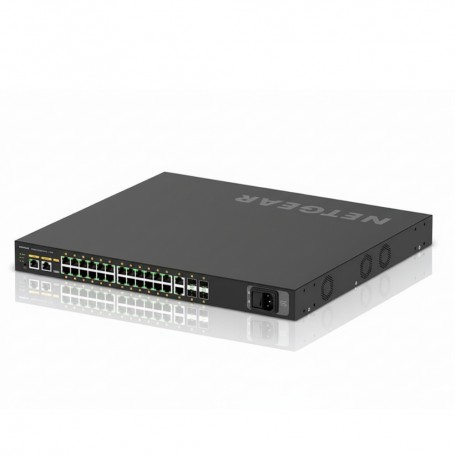

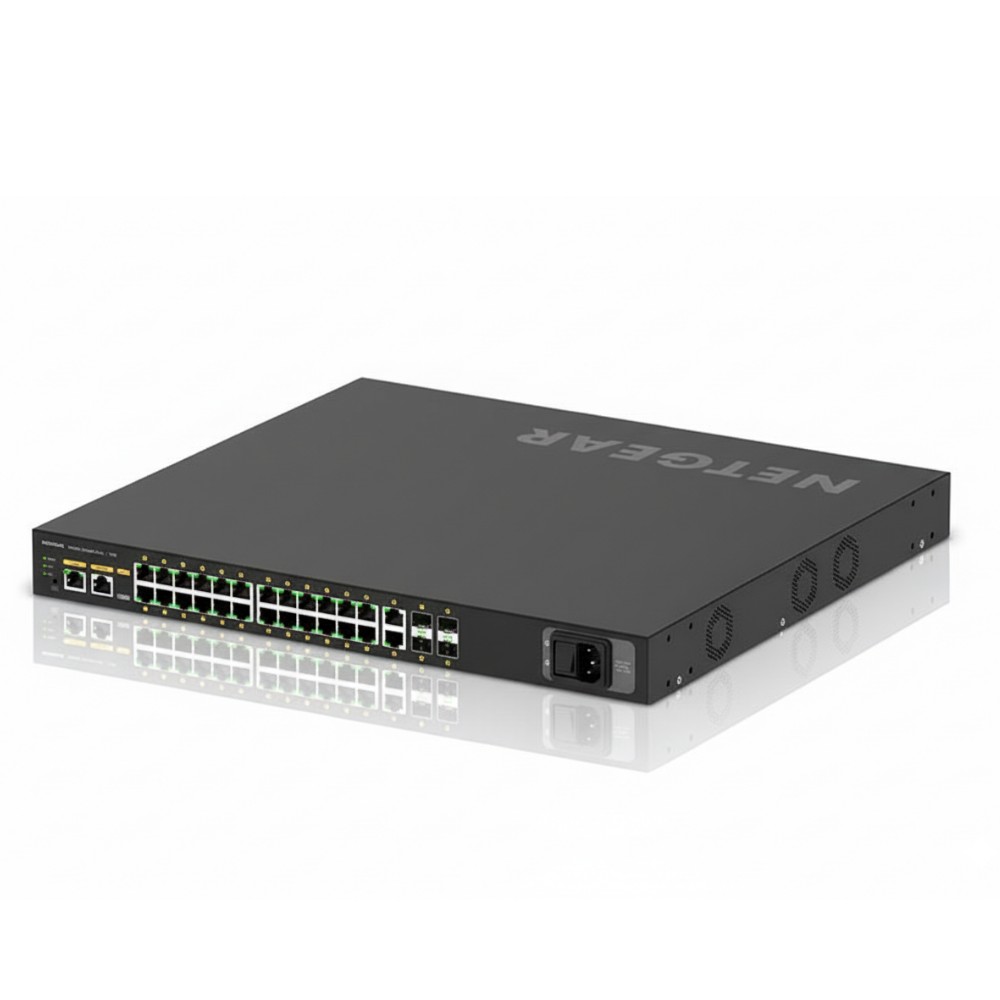

NETGEAR GSM4230PX-100NAS 0 24-Port PoE+ Ethernet Switch View larger

NETGEAR GSM4230PX-100NAS AV Line M4250 24-Port PoE+ Ethernet Switch

New

In Stock

24-port PoE+ switch for AV over IP setups
×




$1,874.00

  • New

Detailed Specifications

NETGEAR M4250-26G4XF-PoE+ GSM4230PX-100NAS 24-Port Gigabit PoE+ Managed Switch with 10G Uplinks

Overview :

The NETGEAR M4250 GSM4230PX-100NAS is a 24-port Gigabit PoE+ managed switch engineered specifically for AV over IP installations requiring 10G uplink capacity. It delivers 480W of PoE+ budget across 24 rear-facing ports at 30W each, plus four dedicated 10G SFP+ uplinks for high-bandwidth video aggregation and two additional Gigabit ports for network expansion. This switch fits AV racks with pre-configured profiles for Dante, NDI, SVSI, and other video-over-IP protocols, allowing most installations to run immediately without extensive network configuration. Built on NETGEAR's Layer 3 switching platform with static routing, IGMP Plus multicast automation, and software-controlled fanless operation for noise-sensitive environments.

Key Features :

  • 480W PoE+ budget powers 24 simultaneous 30W endpoints like PTZ cameras, video encoders, or wireless access points
  • Four 10G SFP+ uplinks handle aggregated video streams from multiple 4K encoders without bandwidth bottlenecks
  • Pre-configured AV profiles for Dante audio, NDI video, SVSI, and Q-SYS eliminate manual VLAN and multicast setup
  • Software-controlled fans operate in fanless mode up to 45W load for silent operation in broadcast control rooms

Technical Specifications :

Brand NETGEAR
Part Number GSM4230PX-100NAS
Product Type Layer 3 Managed Switch
Port Configuration 24x 1GbE PoE+, 2x 1GbE, 4x 10G SFP+
PoE Power Budget 480W (30W per port PoE+)
Switching Capacity 132 Gbps
Management Dual Web GUI (IT + AV), CLI, SNMP, Cloud-ready
Power Requirements 46.8W typical, C14 input
Dimensions & Weight 440x400x43.2mm (1U), 5.45kg
Warranty Limited Lifetime Hardware Warranty
