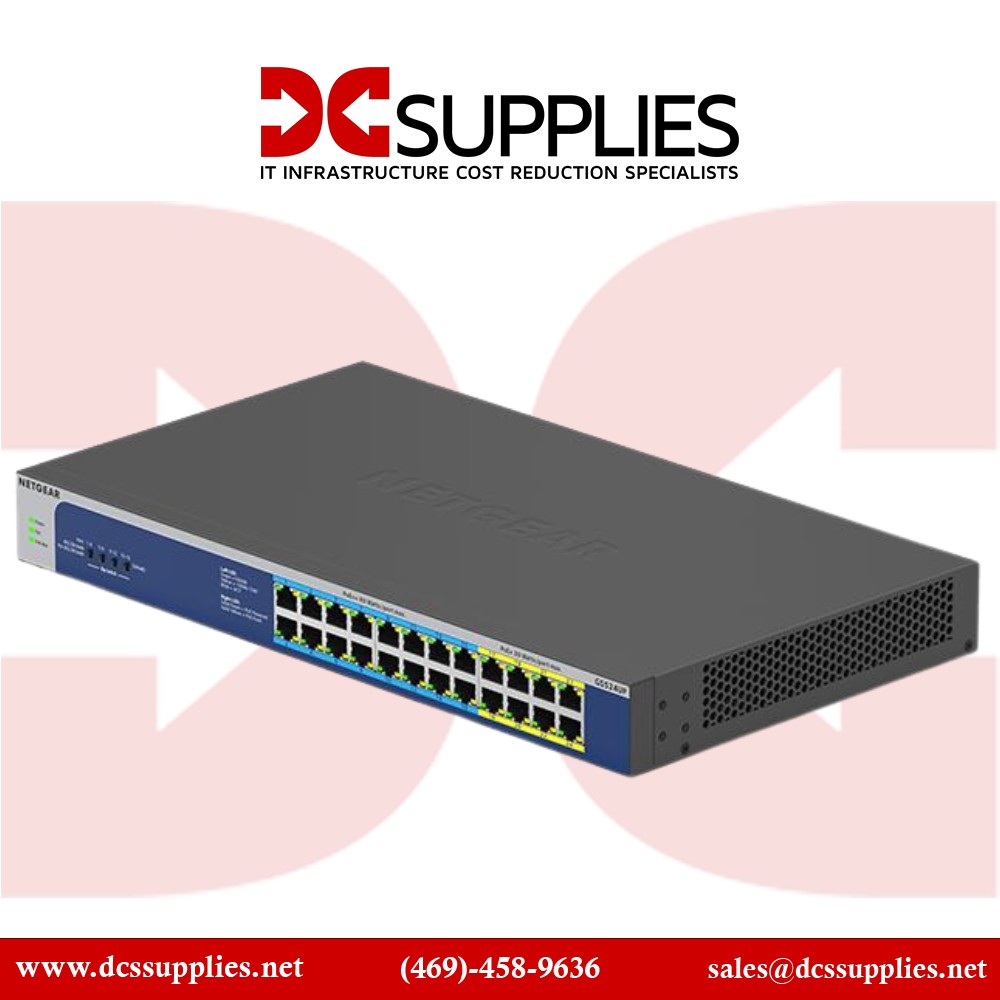

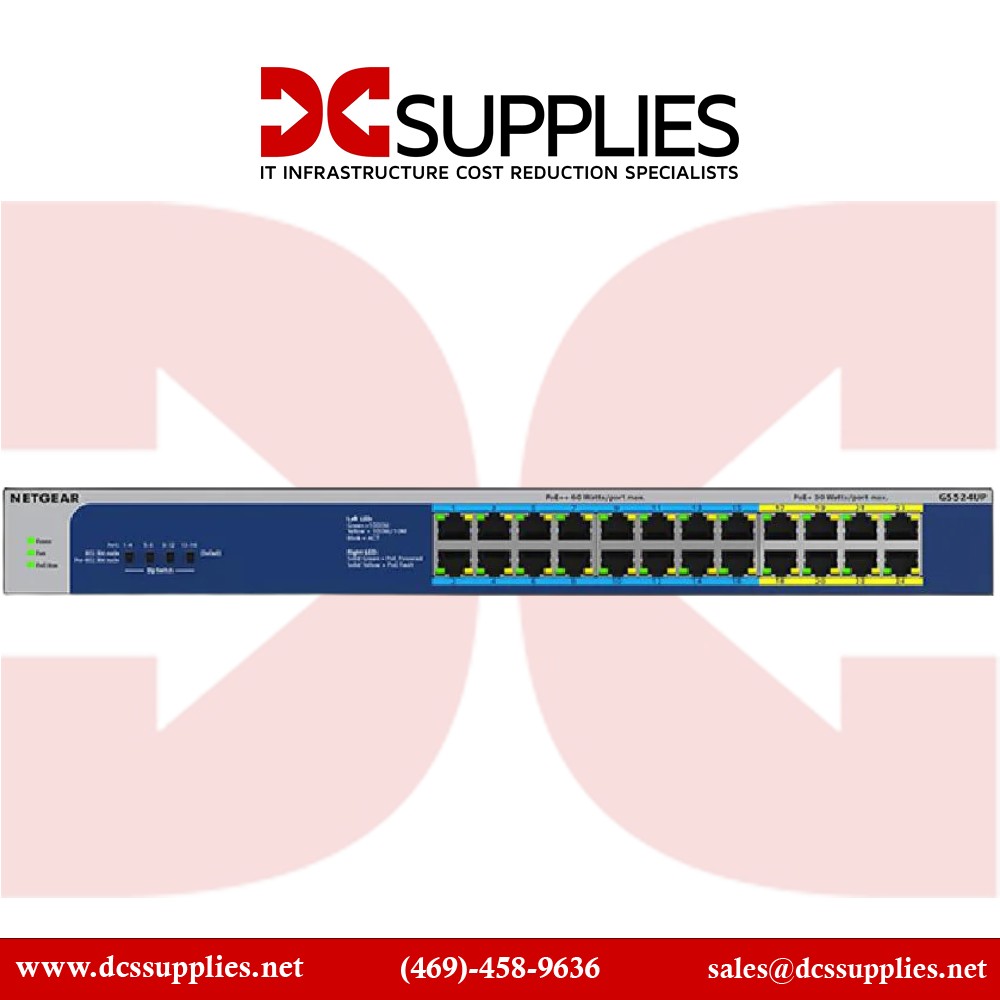

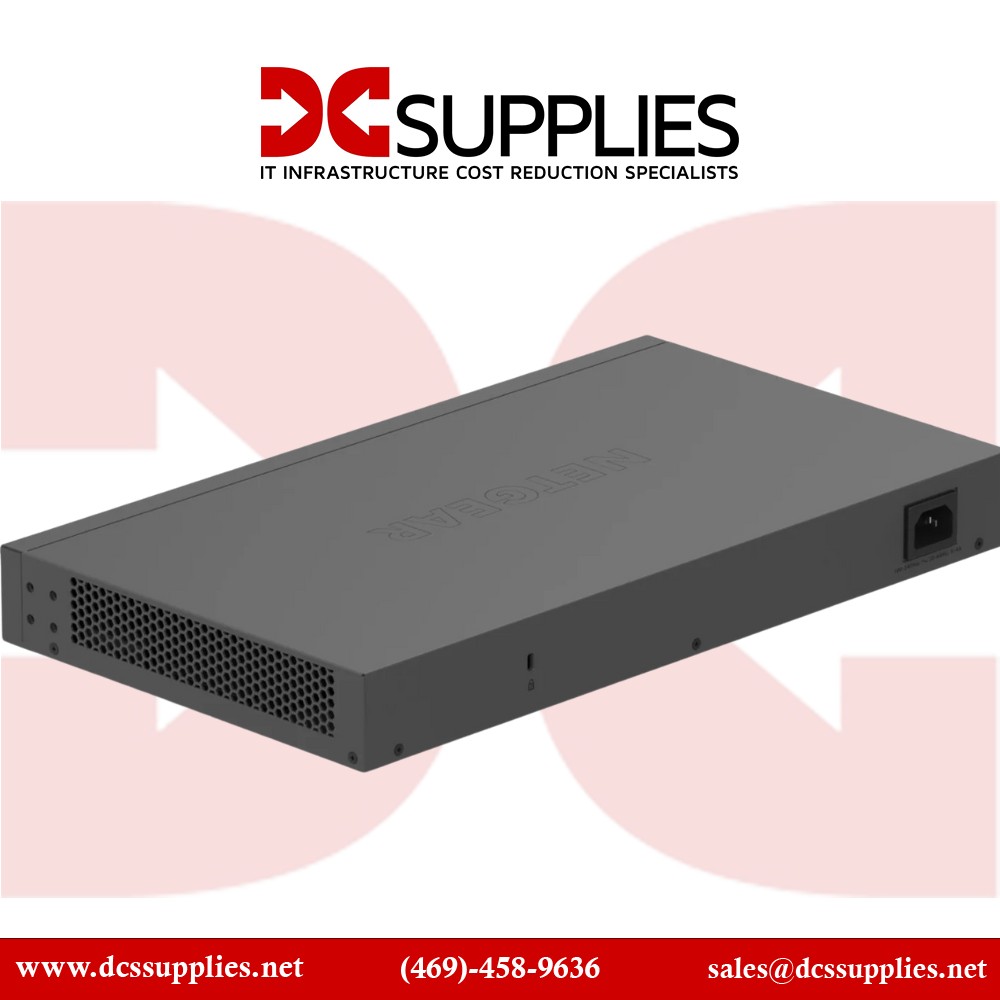

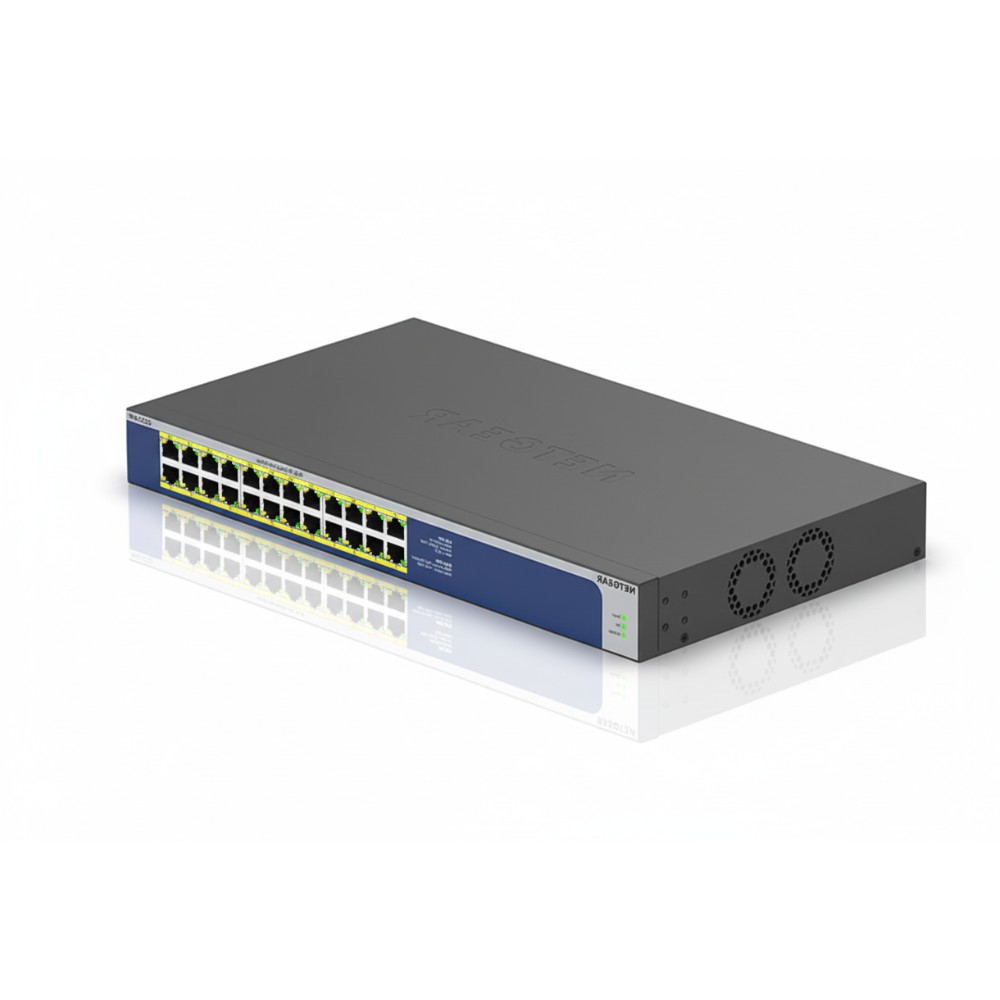

NETGEAR GS524UP-100NAS switch 24 ports Gigabit Ethernet unmanaged View larger

NETGEAR GS524UP-100NAS switch 24 ports Gigabit Ethernet unmanaged

New

In Stock

24-Port Gigabit Unmanaged Ultra60 PoE++ Switch
×




$514.00

  • New

Detailed Specifications

NETGEAR GS524UP-100NAS 24-Port Unmanaged Ultra60 PoE++ Switch

Overview

The NETGEAR GS524UP-100NAS is a 24-port unmanaged Gigabit switch built for networks needing high PoE power without configuration overhead. It delivers 16 Ultra60 (802.3bt) ports at up to 60 W each and 8 standard PoE+ (802.3at) ports with a combined PoE budget of 380 W. The switch is fanless for quiet operation and supports desktop or rack-mount installation. It operates transparently at Layer 2, requiring zero setup, so it fits in access-layer deployments powering cameras, APs, and lighting.

Key Features

  • 16 Ultra60 PoE++ ports + 8 PoE+ ports

  • 380 W total PoE power budget

  • Fanless for silent operation

  • Unmanaged plug-and-play deployment

Technical Specifications

AttributeSpecification
Brand NETGEAR
Part Number GS524UP-100NAS
Product Type Unmanaged Ultra60 PoE++ Switch
Total Ports 24 (16 Ultra60 + 8 PoE+)
PoE Standards Supported IEEE 802.3bt (Ultra60), IEEE 802.3at (PoE+)
Total PoE Power Budget 380 W
Ports Power Output Up to 60 W on Ultra60 ports, up to 30 W on PoE+ ports
Switching Capacity 48 Gb/s
Forwarding Rate 1.4 Mpps
MAC Table Size 8,000 entries
Jumbo Frame Support 9,216 bytes
Dimensions (W × D × H) 330 × 207 × 43 mm
Weight 3.10 kg
Cooling Fanless design
