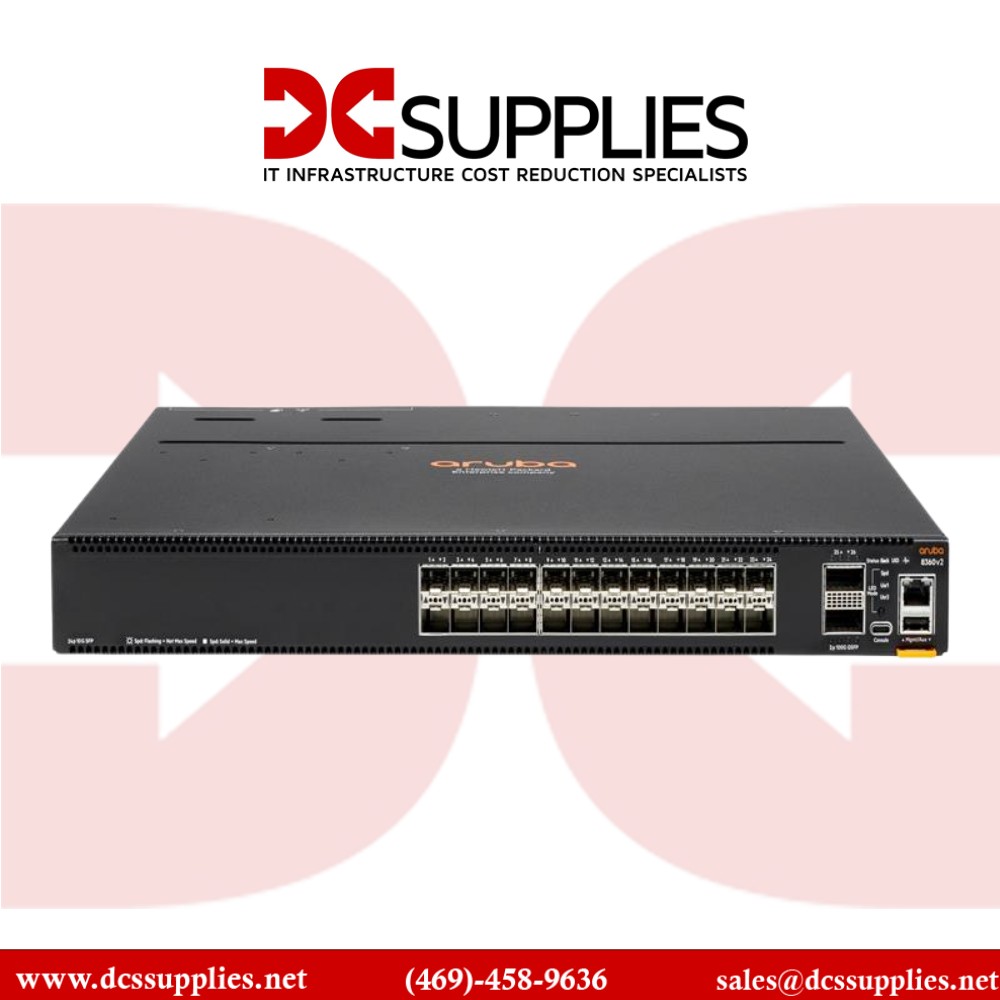

HPE Aruba JL710C 8360-24XF2C V2 FB 3F 2AC Ethernet Switch

New

In Stock

HPE Aruba JL710C 8360-24XF2C V2 FB 3F 2AC Bundle
×




$23,019.90

  • New

Detailed Specifications

HPE JL710C

Aruba JL710C CX 8360‑24XF2C v2 Switch – 24×1/10 GbE SFP/SFP+ + 2×40/100 GbE QSFP28, Layer 3 Managed,

The HPE Aruba JL710C CX 8360‑24XF2C v2 is a robust 1U managed switch, delivering 24 ports of 1/10 GbE alongside 40/100 GbE uplinks. Designed for data center top-of-rack, aggregation, or campus core deployments, it combines high-speed connectivity with full programmability and enterprise-grade resiliency.

Features

Built on ArubaOS‑CX, the switch supports automation via REST APIs, Python, and near real-time analytics through its NAE. With VSX redundancy, two switches can operate as a unified logical unit—allowing seamless control-plane synchronization and zero-downtime fabric expansion or upgrades.

Advanced Options

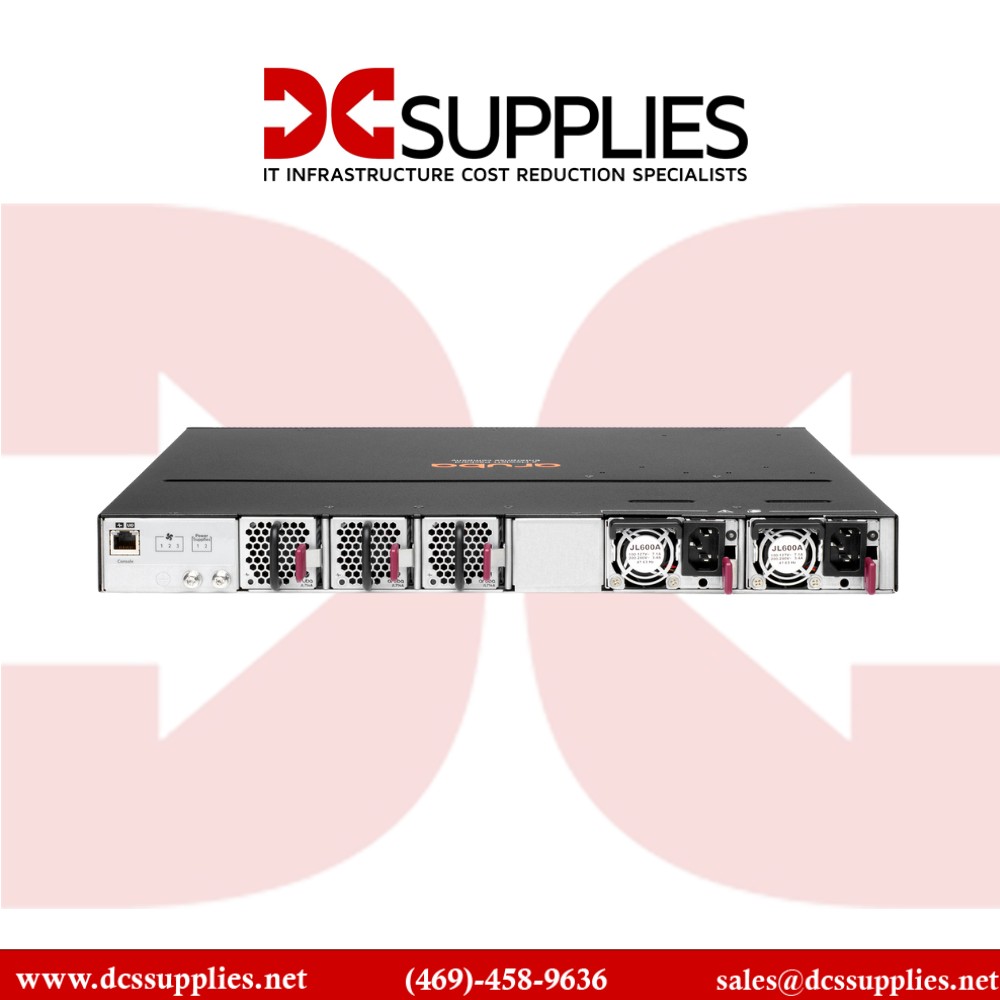

Its front-to-back airflow and hot-swappable components make it ideal for dense rack environments and data center cooling standards.

Product Key Features

  •  24×1/10 GbE SFP/SFP+ ports with 2×40/100 GbE QSFP28 uplinks

  •  ArubaOS‑CX with embedded Network Analytics Engine (NAE), REST API, and Python scripting

  •  VSX virtual-switch redundancy with high availability

  •  Dual hot-swappable power supplies and 3 front-to-back airflow fans

  •  880 Gbps switching capacity with ~1,145 Mpps forwarding performance

  • Advanced Layer 3 features: BGP, OSPF, VRF, VXLAN/EVPN support

Reliability & Performance

Featuring 880 Gbps of non-blocking switching capacity and forwarding around 1,145 Mpps, this switch reliably handles high-throughput traffic . High availability is assured with dual PSUs, removable fans, and VSX architecture. ArubaOS contributions—including microservices-based processes and embedded telemetry—further enhance operational stability and ease of troubleshooting .

Key Features :

    • 24× 1/10 GbE SFP/SFP+ + 2× 40/100 GbE QSFP28 ports

    • ArubaOS‑CX with NAE, REST API, Python scripting

    • VSX redundancy with dual control planes

    • Dual hot-swappable AC power supplies

    • 3 hot-swappable fans, front-to-back airflow

    • Layer 3 routing protocols: BGP, OSPF, VRF; VXLAN/EVPN-ready

    • Advanced QoS, multicast, ACL, and security features

    • 1U rack-mountable chassis

SpecificationDetails
Model Number JL710C
Product Type Layer 3 Managed Ethernet Switch
Client Ports 24 × 1/10 GbE SFP/SFP+
Uplink Ports 2 × 40/100 GbE QSFP28
Switching Capacity 880 Gbps (non-blocking)
Forwarding Rate ~1,145 Mpps
Operating System ArubaOS‑CX with NAE, REST API, Python
High Availability VSX, dual PSUs, hot-swappable fans
Cooling Front-to-back airflow
Rack Form Factor 1U, 19″ rack-mountable
Management Interfaces CLI, Web GUI, REST API, Python, SNMP, USB-C, RJ-45 console
Routing Protocols BGP, OSPF, IS‑IS, VRF, VXLAN/EVPN
CPU 1.8 GHz quad-core 64-bit
Memory & Storage 16 GB RAM, 32 GB Flash
Packet Buffer 32 MB
Ports Supported VLANs (4094), IGMP/MLD groups (7,000), ACLs, MAC, IPv4/IPv6 routes
Dimensions (H × W × D) ~44 × 442.5 × 406.4 mm (~1.73″ × 17.4″ × 16″)
Weight ~8.07 kg (17.8 lb)
Power Input Dual AC 100–240 VAC, 47–63 Hz
Power Consumption Max 375 W; Idle 120 W
Operating Temp/Humidity 0–45 °C; 15–95 % non-condensing
Compliance TAA, RoHS, CE, FCC, UL, VCCI
