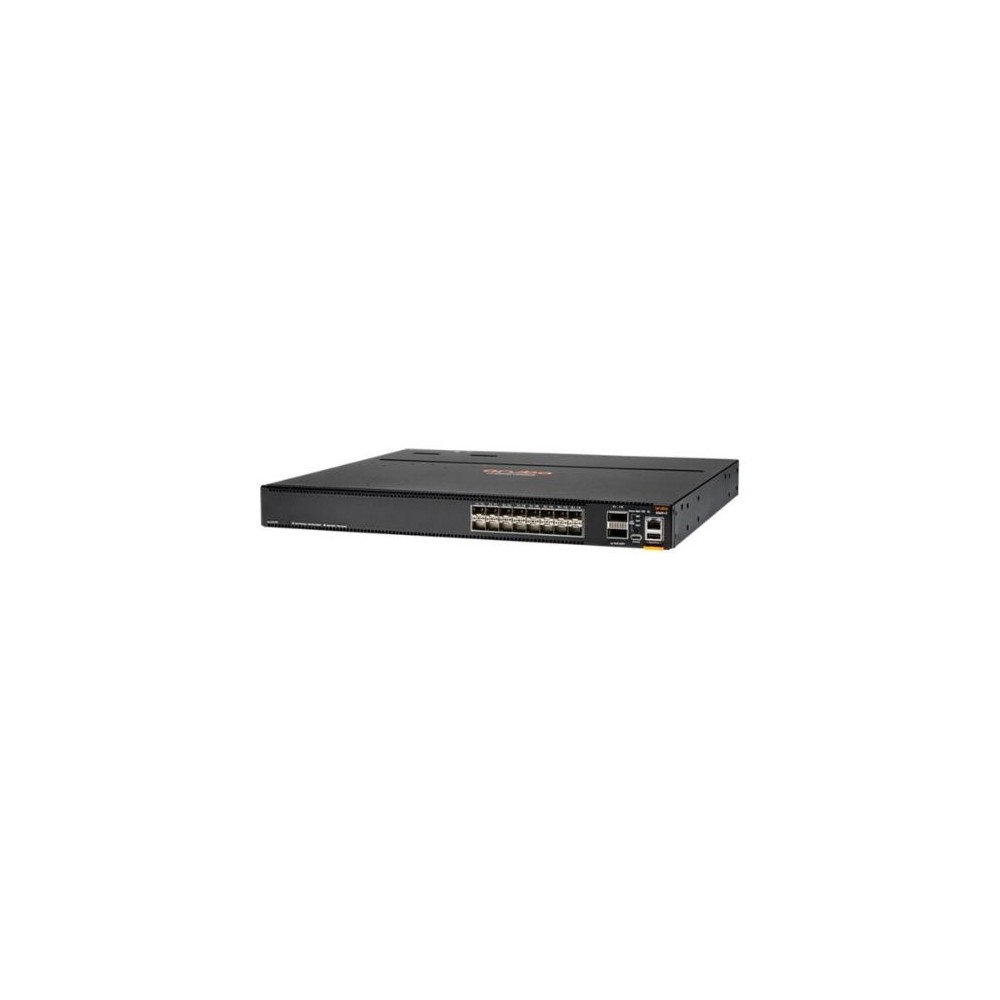

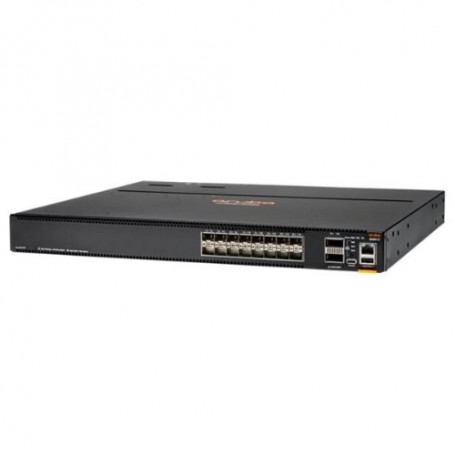

HPE Aruba JL703C-ABA 8360v2- 32Y4C Ethernet Switch

New

HPE Aruba JL703C-ABA 8360v2-32Y4C Ethernet Switch  32-Port...

×




  • New

Detailed Specifications

HPE JL703C

Aruba JL703C‑ABA CX 8360‑32Y4C v2 Switch – 32×25G SFP28 + 4×100G QSFP28

The HPE Aruba JL703C‑ABA CX 8360‑32Y4C v2 is a powerful Layer 3 switch tailored for enterprise campus cores, data center leaf-spine fabrics, and aggregation layers. Featuring a 32-port 25G access chassis plus 4×100G uplinks, it delivers high bandwidth, advanced security (MACsec), and ArubaOS‑CX intelligence—all packaged in a 1U form factor.

Features

Providing a versatile port mix, the JL703C supports 1/10/25 GbE on SFP28 and 40/100 GbE on QSFP28 with breakout options. MACsec secures sensitive traffic, while ArubaOS‑CX's modern microservices-based design provides programmability, real-time analytics through NAE, and seamless automation with REST and Python APIs

Advanced Options

VSX redundancy ensures uninterrupted operation thanks to dual synchronized control planes. Designed for data center environments, its back-to-front cooling and hot-swappable PSUs and fans support compliance with hot-aisle/cold-aisle airflow designs.

Product Key Features

  • 32× 1/10/25 GbE SFP/SFP+/SFP28 + 4× 40/100 GbE QSFP+/QSFP28 ports

  • MACsec encryption on select SFP28 and QSFP28 ports for secure links

  • ArubaOS‑CX with built‑in Network Analytics Engine (NAE), REST API, and Python support

  • VSX redundancy with dual control planes, plus dual PSUs & 3 fans, back‑to‑front airflow

  • 4.8 Tbps switching capacity, 2,678 Mpps forwarding rate for high‑performance environments

  • Compact 1U rack‑mountable chassis, ideal for core, aggregation, or spine‑leaf deployments

Reliability & Performance

Delivering 4.8 Tbps of switching capacity and 2,678 Mpps throughput, this switch handles demanding network workloads effortlessly. Dual power supplies and hot-swappable fans ensure uptime, while ArubaOS‑CX’s fault-resilient design and analytics tools simplify operations and troubleshooting .

Key Features :

    • 32× 25 GbE SFP28 + 4× 40/100 GbE QSFP28 ports

    • MACsec encryption for secure uplinks

    • ArubaOS‑CX with NAE, REST API, Python scripting

    • VSX redundancy with dual control planes

    • Dual hot-swappable PSUs and 3 fans

    • Back-to-front airflow compatible with data center cooling

    • Layer 3 routing: BGP, OSPF, IS‑IS, VRF; VXLAN/EVPN-ready

    • Deep buffering, ECMP, QoS, multicast features

    • 1U rack-mountable chassis

SpecificationDetails
Model Number JL703C‑ABA (8360‑32Y4C v2, back‑to‑front airflow)
Product Type Layer 3 Managed Ethernet Switch
Client Ports 32 × SFP/SFP+/SFP28 (1/10/25 GbE)
Uplink Ports 4 × QSFP+/QSFP28 (40/100 GbE)
MACsec Support Select SFP28 & QSFP28 ports
Switching Capacity 4.8 Tbps
Forwarding Rate 2,678 Mpps
Operating System ArubaOS‑CX
Management Interfaces CLI, Web GUI, REST API, Python, SNMP, USB‑C jacks
Routing Protocols BGP, OSPF, IS‑IS, VRF, VXLAN, EVPN, ECMP
Resiliency VSX, dual control planes, dual PSUs, hot-swap fans
Cooling Direction Back-to-front airflow
Form Factor 1U Rack-mountable
Dimensions (H×W×D) 44 × 442 × 406 mm (~1.7″ × 17.4″ × 16″)
Weight ~8.19 kg (18.06 lb)
Power Consumption ~425 W typical
Input Power Dual AC PSUs, 100–240 VAC, 47–63 Hz
Operating Temperature 0–45 °C
Compliance TAA, RoHS, CE, FCC
