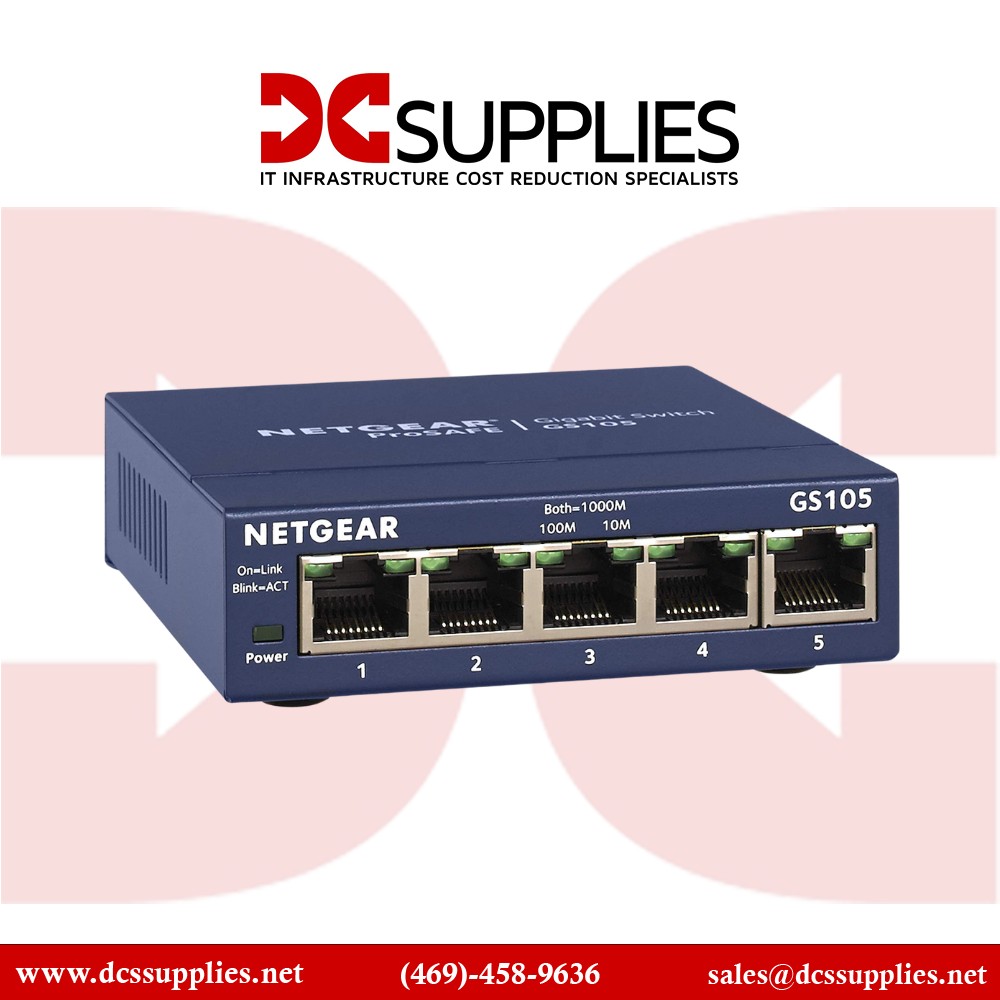

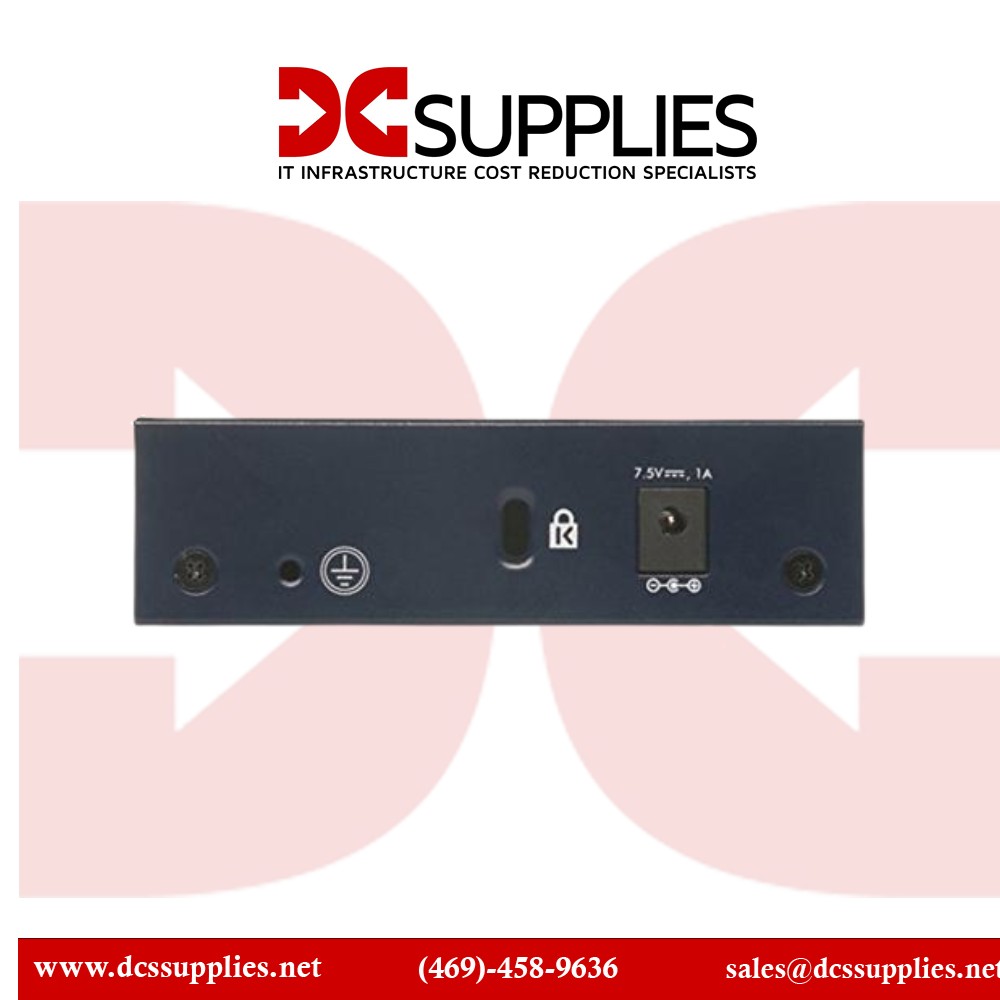

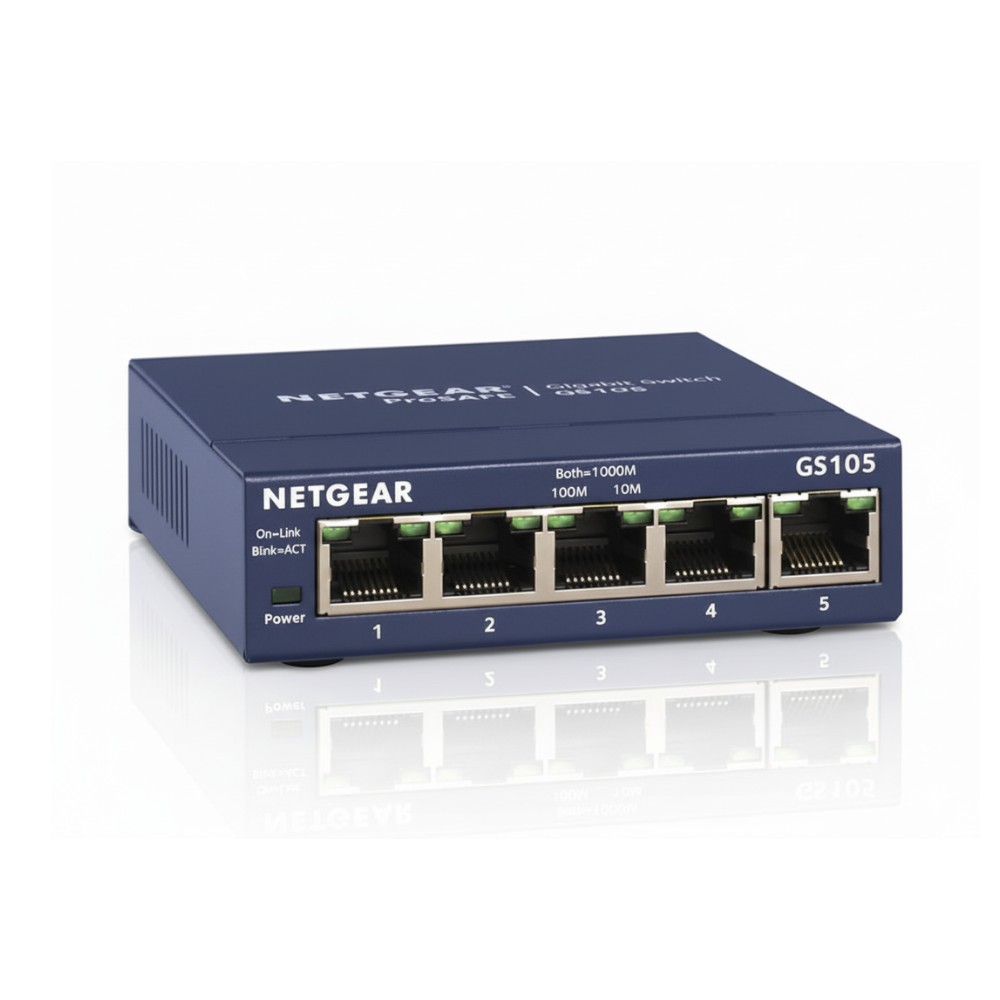

NETGEAR GS105NA 5-Port Gigabit Ethernet Switch

New

In Stock

NETGEAR GS105NA 5-Port Gigabit Ethernet Switch Compact Reliable...

×




$34.85

  • New

Detailed Specifications

NETGEAR GS105NA

5-Port Gigabit Ethernet Unmanaged Switch

The NETGEAR GS105NA is a compact unmanaged switch designed for small offices, home networks, or branch setups. It delivers fast, reliable wired connectivity without configuration, making it perfect forexpanding port counts from a router, adding devices like desktops, printers, or IP phones—all without a steep learning curve.

Features

Built to last, this switch features a rugged metal case, long MTBF (~10 years), and a fan-free design for silent operation . It supports Energy Efficient Ethernet (IEEE 802.3az), automatically reducing power usage during

Advanced Options

low traffic periods . LEDs for link/speed/activity on each port and power status add easy visual troubleshooting.

Product Key Features

  •  Five auto-sensing 10/100/1000 Mbps Gigabit RJ‑45 ports

  •  Non-blocking switching architecture with 10 Gbps switching capacity

  •  Energy Efficient Ethernet (IEEE 802.3az) for reduced power usage

  •  Durable all-metal desktop/desktop or wall-mountable design

  •  Fanless, silent operation

  •  Auto Uplink™ ports – no crossover cables needed

Reliability & Performance

Gigabit ports—perfect for fast file transfers or streaming setups. It supports jumbo frames and Quality of Service (802.1p), delivering more reliable performance on multimedia or prioritised traffic . shock and vibration resistance enhances longevity, while efficient power usage keeps operational costs low in energy-conscious data centers.

Key Features (Bullet List)

  • Five auto-sensing Gigabit Ethernet ports

  • 10 Gbps non-blocking switching bandwidth

  • Energy Efficient Ethernet (IEEE 802.3az)

  • Compact metal chassis; desktop or wall mountable

  • Fanless silent design

  • Auto Uplink™ for cable-type auto-detection

SpecificationDetails
Model Number GS105NA
Product Type 5-Port Unmanaged Gigabit Ethernet Switch
Ports 5 × RJ‑45 auto-sensing 10/100/1000 Mbps
Switching Capacity 10 Gbps non-blocking
Jumbo Frame Support Yes (up to 9 KB)
Quality of Service 802.1p traffic prioritization
Energy Efficiency IEEE 802.3az EEE
Form Factor Metal desktop; wall-mount kit
Cooling Fanless (silent)
LEDs Link/speed/activity per port; power LED
Dimensions (W × D × H) ~94 × 100 × 27 mm (3.7 × 3.9 × 1.1 in)
Weight ~0.26 kg (0.57 lb)
Operating Temperature 0–50 °C (32–122 °F)
Storage Temperature –20–70 °C (–4–158 °F)
Certifications IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Wall-Mountable Yes – included bracket
