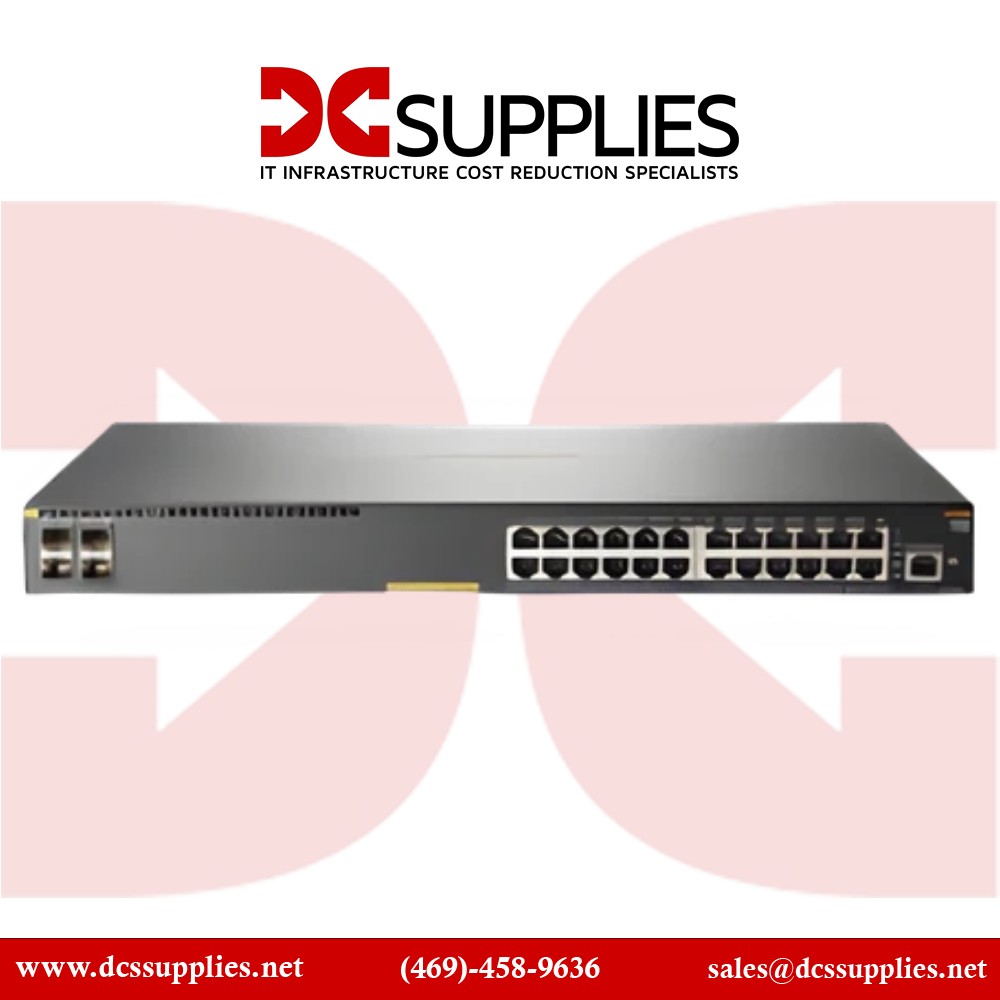

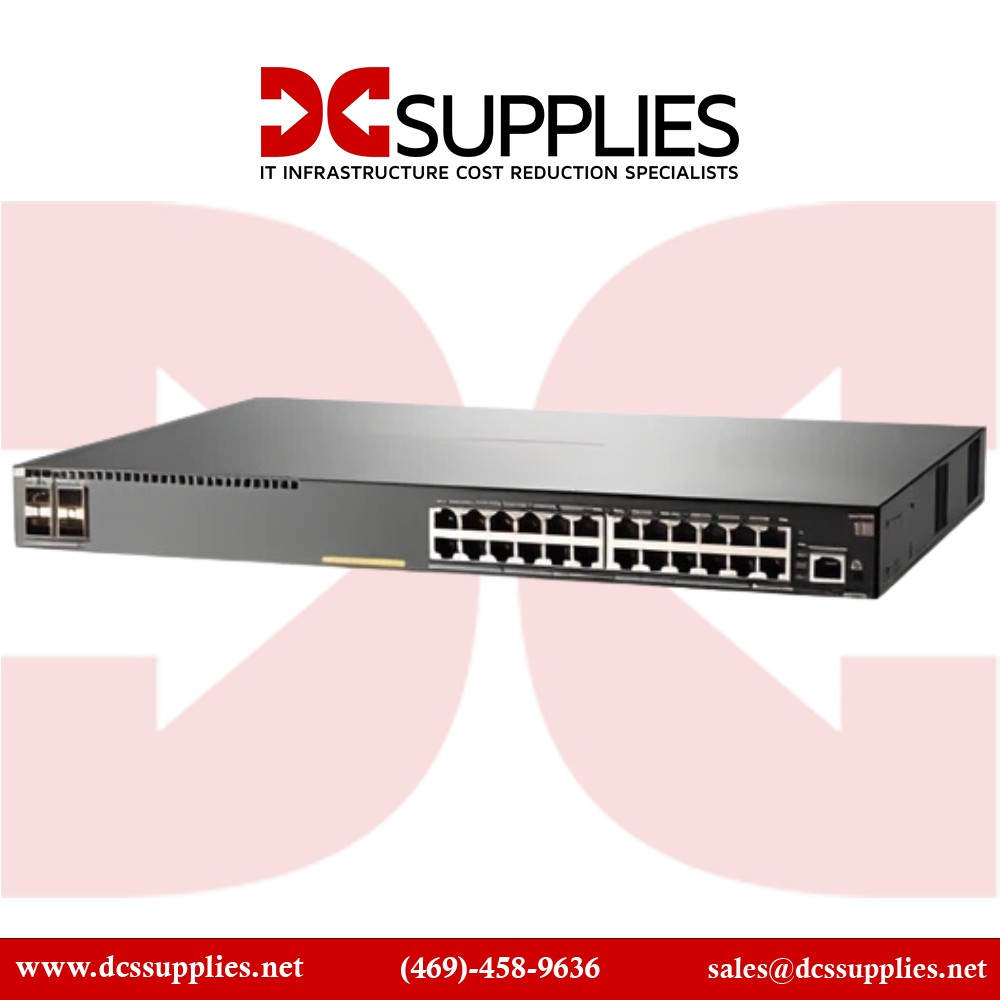

HPE JL255A ABA Aruba 2930F managed Ethernet switch 24 ports

JL255A#ABA

New

Managed 24-port Gigabit PoE+ switch with 370W power budget
×




Detailed Specifications

HPE JL255A ABA

Aruba 2930F managed Ethernet switch 24 ports

A managed Layer 3 switch with 24 Gigabit PoE+ ports and 4 10G SFP+ uplinks, offering high-performance switching and flexible management for digital workplaces.

Overview:

The HPE Aruba 2930F JL255A is a managed Layer 3 Ethernet switch designed for digital workplaces needing integrated wired and wireless connectivity. It features 24 Gigabit PoE+ ports and 4 high-speed SFP+ uplinks. This switch provides 24 autosensing 10/100/1000 Mbps RJ45 ports compliant with IEEE 802.3at PoE+ standards, ideal for powering devices like IP phones, wireless access points, and security cameras. The four 1G/10G SFP+ fiber uplink ports offer flexible, high-speed connectivity options for uplink or aggregation purposes. Equipped with a dual-core ARM Cortex-A9 processor and 1GB DDR3 RAM, it delivers performance and responsiveness for demanding network operations.

The Aruba 2930F supports advanced Layer 3 static routing, OSPF, RIP protocols, ACLs, tunneled nodes, and IPv6 support for versatile, secure, and future-proof network deployment. Network management is streamlined with Aruba ClearPass Policy Manager, AirWave, and cloud-based Aruba Central platform, giving administrators control and visibility from anywhere. Energy efficiency and quiet fan operation enable deployment in office environments without disruption. The compact 1U design ensures easy rack installation, while QoS prioritizes voice, video, and critical network traffic for optimized performance.

Product Key Features

Reliability & Performance:

The JL255A’s powerful hardware with 128 Gbps switching capacity and 95.2 million packets per second throughput supports stable, low-latency data forwarding. The device is built to enterprise-grade reliability, backed by Aruba’s limited lifetime warranty. Robust security features and efficient power management contribute to operational cost savings and network resilience.

Key Features:

Technical Specification Table:

SpecificationDetails
Model Number JL255A
Product Type Managed Layer 3 PoE+ Ethernet Switch
Port Count 24 x RJ-45 autosensing 10/100/1000 Mbps PoE+
Uplink Ports 4 x 1G/10G SFP+ fiber
Processor Dual-core ARM Cortex A9 @ 1016 MHz
Memory 1 GB DDR3 SDRAM
Switching Capacity 128 Gbps
Throughput Up to 95.2 Mpps
PoE Budget 370 Watts
Dimensions (WxDxH) 17.42 x 7.88 x 1.73 inches (44.25 x 20.02 x 4.39 cm)
Weight 5.31 lbs (2.41 kg)
Management Aruba ClearPass, AirWave, Aruba Central
