HPE Aruba JL581A 8320 10G 48Port Ethernet Switch with QSFP+ View larger
Previous Next

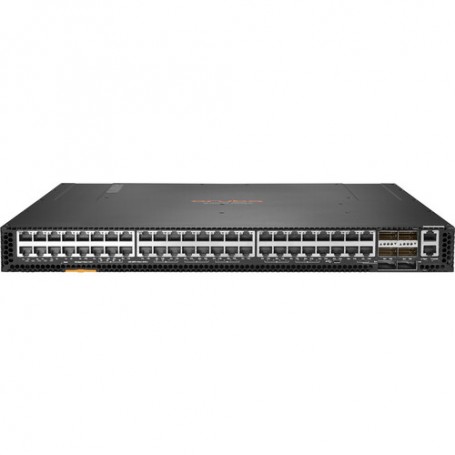

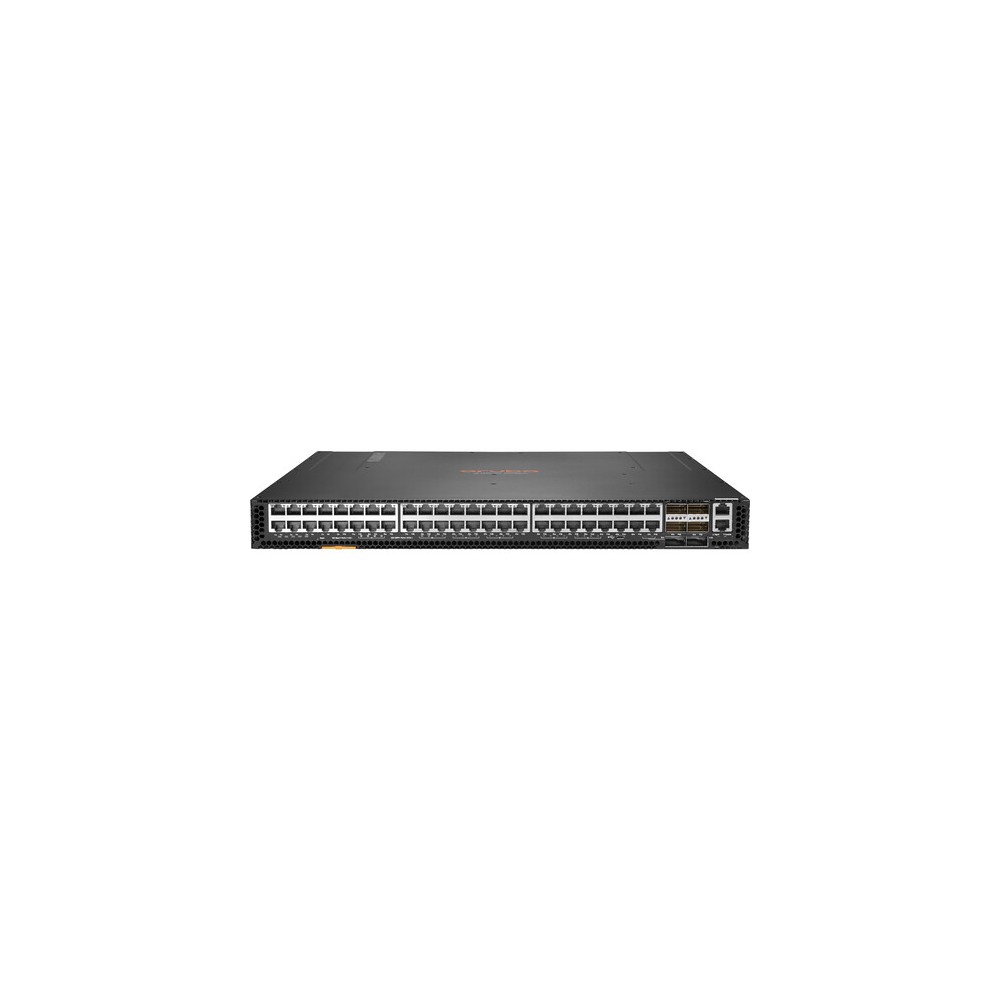

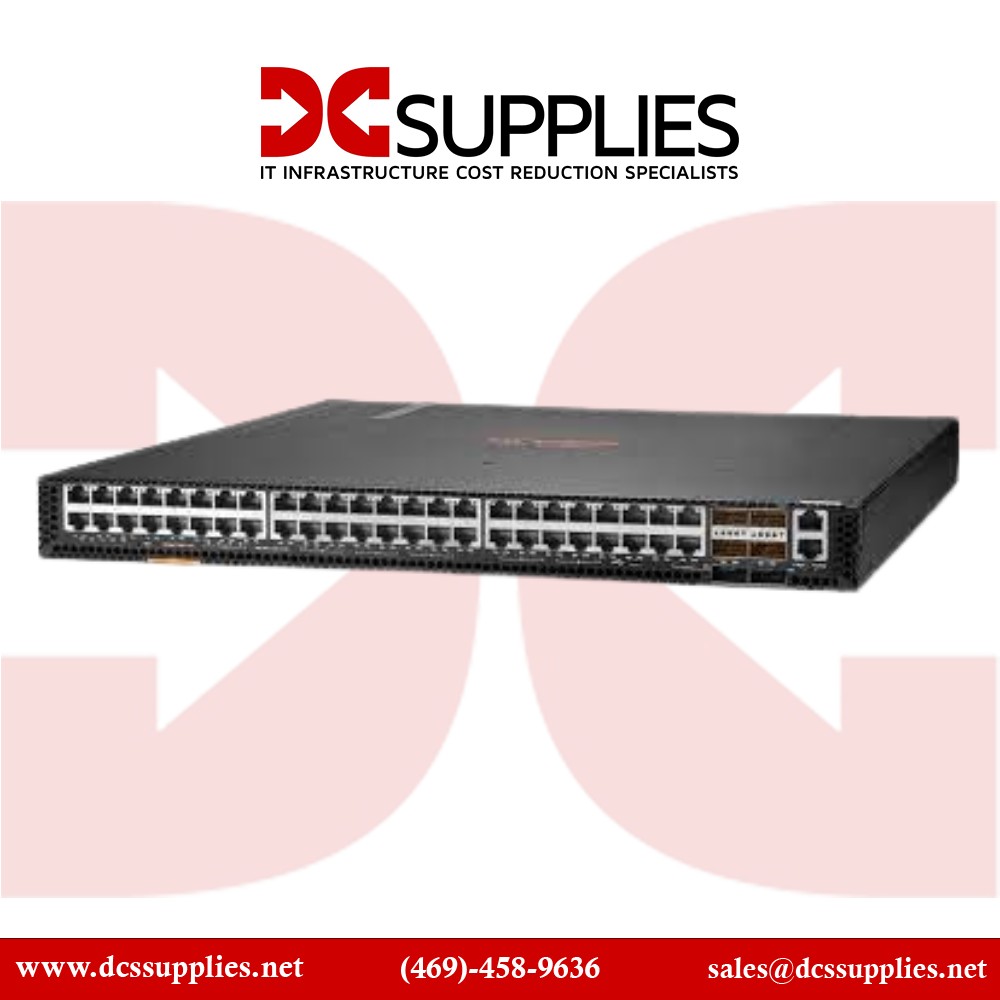

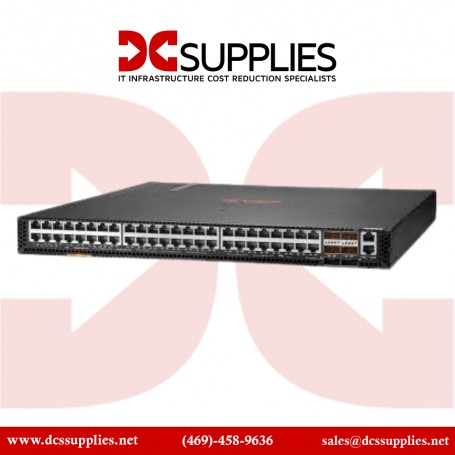

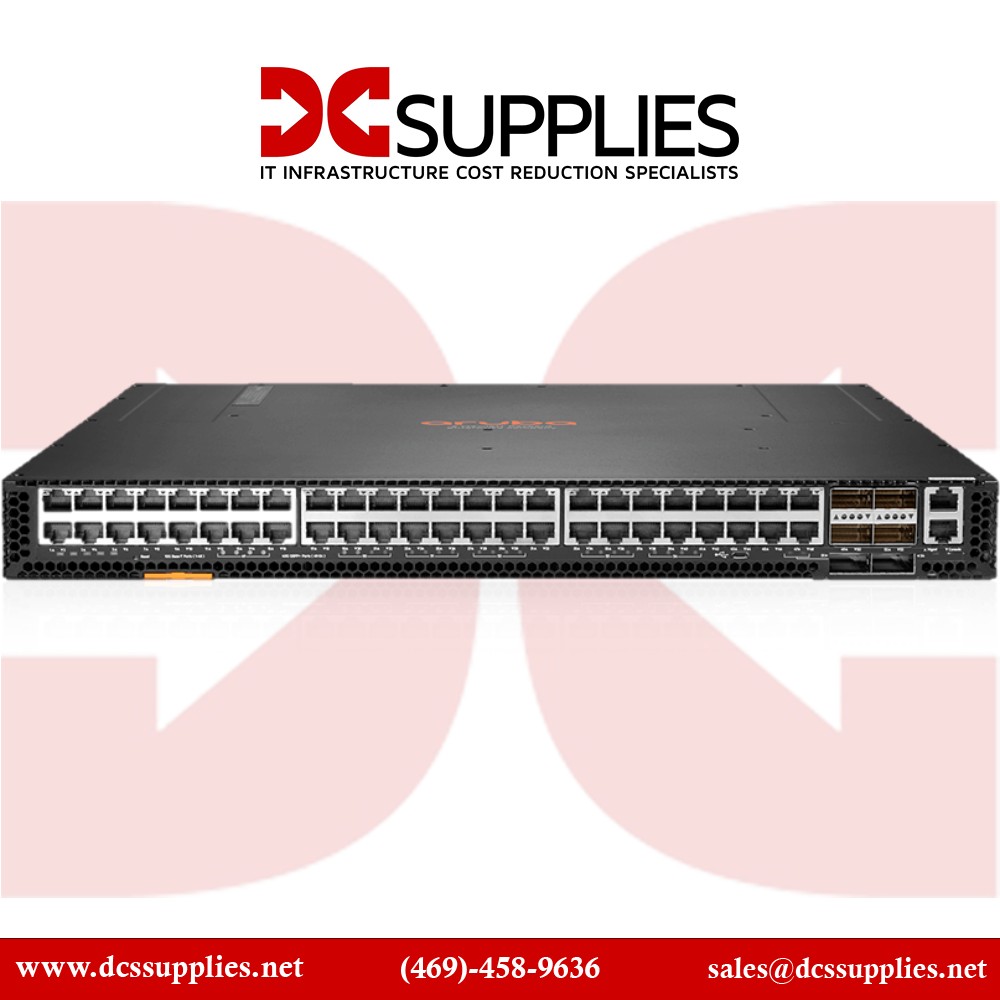

HPE JL581A Aruba Networking CX 8320 48-Port 1G/10GBASE-T + 6-Port Switch

New

High-density 10G/40G Layer 3 switch bundle with redundancy.
×




  • New

Detailed Specifications

HPE JL581A

Aruba Networking CX 8320 48-Port 1G/10GBASE-T + 6-Port 40G QSFP+ Switch Bundle

The HPE ArubaNetworking CX 8320 (model JL581A) is a powerful, Layer 3 managed switch bundle designed for enterprisecampus core and aggregation roles, or as a high-performance top-of-rack (ToR) data center switch. It combines 48 RJ-45 ports capable of 1G/10G throughput with 6 QSFP+ uplink slots delivering 40G connectivity—ideal for simplifying spine-leaf architectures. This fully equipped bundle includes five redundant fans and two hot-swappable power supplies, ensuring system availability and resilience under high load. The compact 1U chassis delivers up to 2.5 Tbps of switching capacity and approximately 1.905 Mpps forwarding rate, making it ready for today’s mobile, cloud, and IoT-driven environments

Features

The ArubaCX 8320 series represents HPEvision for modern campus and data center deployment. The JL581A bundle features advanced hardware designed to deliver uncompromising performance with a robust switching engine, powered by Arubanext-gen AOS-CX operating system. Handling both 10GBASE-T and 40G QSFP+ uplinks in a compact form factor, the switch excels in high-density environments where performance and availability are paramount Aruba-CX brings network automation to the forefront with programmable microservices, scriptable workflows via REST APIs and Python, and predictive analytics using its built-in Network Analytics Engine (NAE) for monitoring and troubleshooting . The hardware supports high availability through Virtual Switching Extension (VSX) architecture, along with redundant, field-replaceable fans and power units—minimizing the risk of downtime in mission-critical deployments.

Advanced Options

Comprehensive enterprise features include support for VLAN scalability (802.1Q, up to 4096 per port), IP routing (OSPF, static IPv6 routing, ECMP), multicast, advanced ACLs, Quality of Service (QoS), and enhanced management via SNMP, RADIUS/TACACS+, SSH, and REST-based operations. This makes the switch particularly suited for automation, IoT-ready campuses, and high-speed ToR connectivity in evolving data center networks

Product Key Features

  • 48 × 1G/10GBASE-T ports + 6 × 40G QSFP+ uplinks

  • 2.5 Tbps switching capacity / ~1.905 Mpps forwarding rate

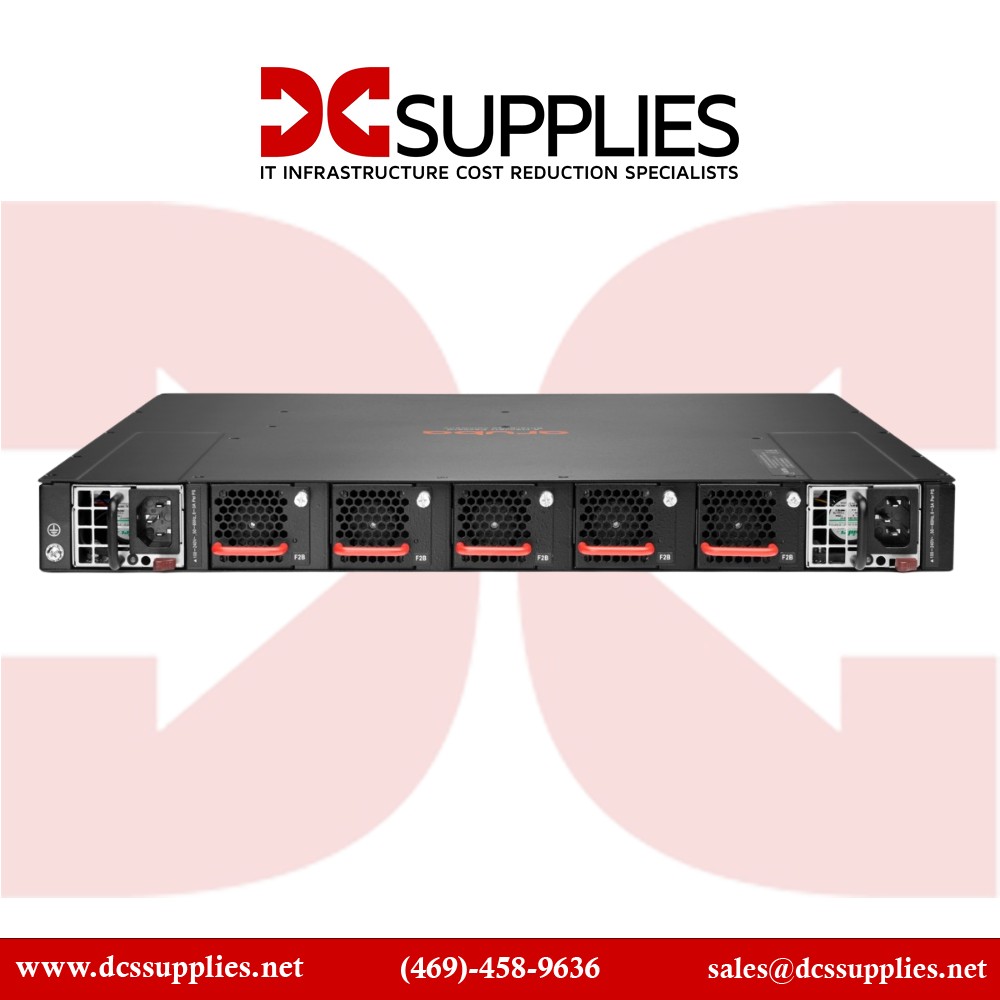

  • Comes with 5 hot-swappable fans and 2 redundant power supplies

  • Compact 1U, TAA-compliant rack-mount design

  • Aruba-CX: programmable OS with REST API, Python, and built-in analytics (NAE)

  • High availability via VSX, redundant hardware

  • Layer 2/3 feature-rich: VLANs, OSPF, IPv6, QoS, ACLs, MLAG

  • Enterprise management: SNMPv3, SSH, RADIUS/TACACS+, scripting support

Reliability & Performance

The JL581A bundle offers unmatched reliability and performance for demanding enterprise and data center environments. With 2.5 Tbps of switching capacity and robust Layer 3 routing performance, this switch delivers wire-speed traffic handling even in intensive IoT or cloud-driven workloads . Redundant, hot-swappable fans and dual power modules ensure uninterrupted operation during maintenance or failure scenarios—ideal for high-availability networks Automation and programmability are seamless through Arubamodern OS—enabling proactive performance tuning, network visibility, and scripting of operations via RESTful APIs and Python. Secure operations are reinforced with enterprise-class authentication and management protocols, from SSH and TACACS+ to SNMPv3, RADIUS, and integrated logging—simplifying orchestration and compliance The switch supports virtualization-ready architectures via VSX, enabling active-active configurations that deliver both resiliency and scale. With features like ECMP, MLAG, and deep packet buffers, it can handle modern data center workloads with minimal latency and maximum throughput—while future-proofed for evolving 10/40G infrastructures.

Key Features :

  • 48 × 10GBASE-T + 6 × 40G QSFP+ ports

  • 2.5 Tbps switching capacity, 1.905 Mpps throughput

  • 5 redundant fans & 2 hot-swappable power supplies

  • Aruba-CX with REST API, Python scripting, NAE analytics

  • VSX support for high availability and resilience

  • Advanced Layer 2/3: VLANs, OSPF, ECMP, QoS, ACLs, IPv6

  • Secure management: SNMPv3, SSH, RADIUS/TACACS+, scripting support

SpecificationDetails
Model Number JL581A
Type Layer 3 Managed Switch Bundle
Ports 48 × 1G/10GBASE-T, 6 × 40G QSFP+
Switching Capacity 2.5 Tbps
Forwarding Rate ~1.905 Mpps
Fans / Power Supplies 5 Hot-Swappable Fans, 2 Redundant PSUs
Form Factor 1U Rack-Mountable, TAA Compliant
Operating System Aruba-CX with REST, Python, NAE
High Availability Virtual Switching Extension (VSX)
Routing Protocols OSPF, Static IPv6, ECMP
Security Features ACLs, SSH v2, RADIUS/TACACS+, SNMP v3
Forwarding Support VLANs (4096), Jumbo Frames (9 KB), MLAG
Power Input AC 100–127 / 200–240 V, 50/60 Hz; ~348–357 W consumption
Memory / CPU 2 GHz CPU, 16 GB RAM, 64 GB SSD
Weight / Dimensions ~20.7 lb; 17.4″ × 19.9″ × 1.7″
