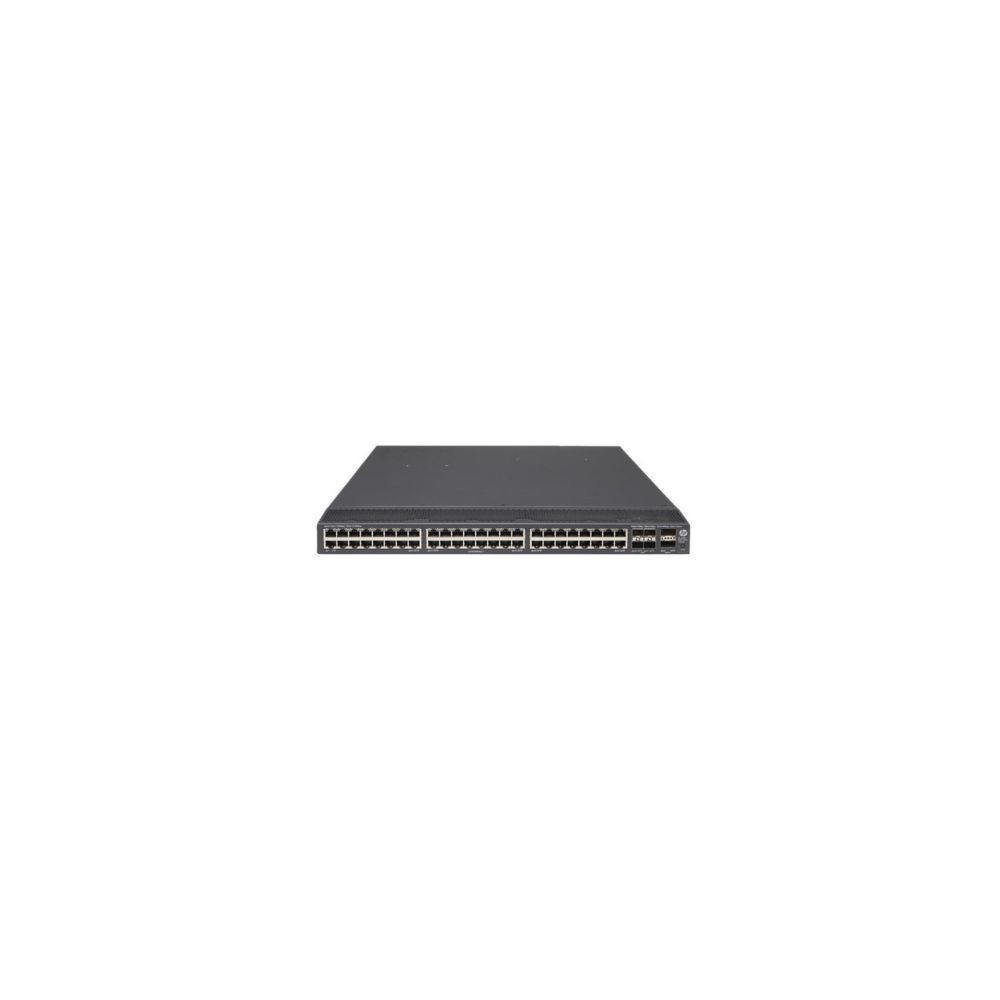

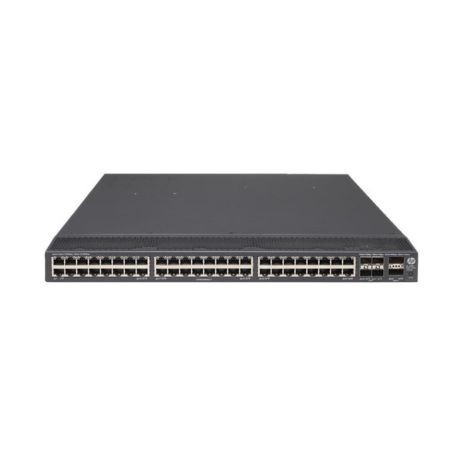

HP JG336

(5900AF‑48XGT‑4QSFP⁺) 48‑Port 1/10 GbE PoE Ethernet Switch

The HP JG336 (5900AF‑48XGT‑4QSFP⁺) is a high-performance top-of-rack Ethernet Switch optimized for data center access or aggregation deployments. It offers forty-eight auto-negotiating 1/10 GbE RJ‑45 ports and four 40 Gb QSFP⁺ uplinks in a 1U footprint. With ultra-low latency (≤ 1.5 µs for 10 Gb packets) and non-blocking architecture, this Ethernet Switch is ideal for virtualized environments, server clustering, and high-throughput applications. Based on HP FlexFabric architecture with Comware v7 OS, it supports advanced Layer 2/3 routing, IRF stacking, and rich QoS features—delivering deterministic performance for enterprise workloads and seamless scalability using IRF stacking across multiple units.

Features

Part of the HP FlexFabric 5900AF series, the JG336 delivers ultra-low-latency Ethernet Switch (< 1.5 µs for 10 GbE) and deterministic forwarding across all ports, supporting up to 1280 Gb/s switching capacity and forwarding up to ~952 Mpps (64-byte packets) The 48 auto-MDI/MDIX RJ‑45 ports support 1/10 GbE connectivity over existing Cat6a/Cat7 cables, while four QSFP⁺ uplinks provide 40 Gb trunking or breakout into 4×10 Gb links.Running on Comware v7 software, the Ethernet Switch supports rich routing and access feature sets including VLAN, DHCP Snooping, VRRP, OSPF, BGP, RIP, ACLs, multicast IGMPv2/v3, LLDP, and advanced QoS mechanisms like WRED, ECN, SP/WDRR queueing . It integrates with HP Intelligent Resilient Fabric (IRF) for virtual chassis stacking of up to nine units—reducing management overhead and improving scalability

Advanced Options

For availability and compliance, the Ethernet Switch includes hot-swappable redundant power supplies and fan trays with reversible airflow for both front-to-back or back-to-front deployment in data centers. Management is supported via CLI, SNMP v1/v2c/v3, Web GUI, Telnet, and integration with HP Intelligent Management Center (IMC) Built for demanding environments, the JG336 delivers consistent, predictable performance under full line-rate load, thanks to cut-through/non-blocking Ethernet Switch architecture and hardware QoS enforcement Its sub-1.5 µs latency and high packet-per-second capacity suit east-west traffic, virtualization, and storage fabrics.
