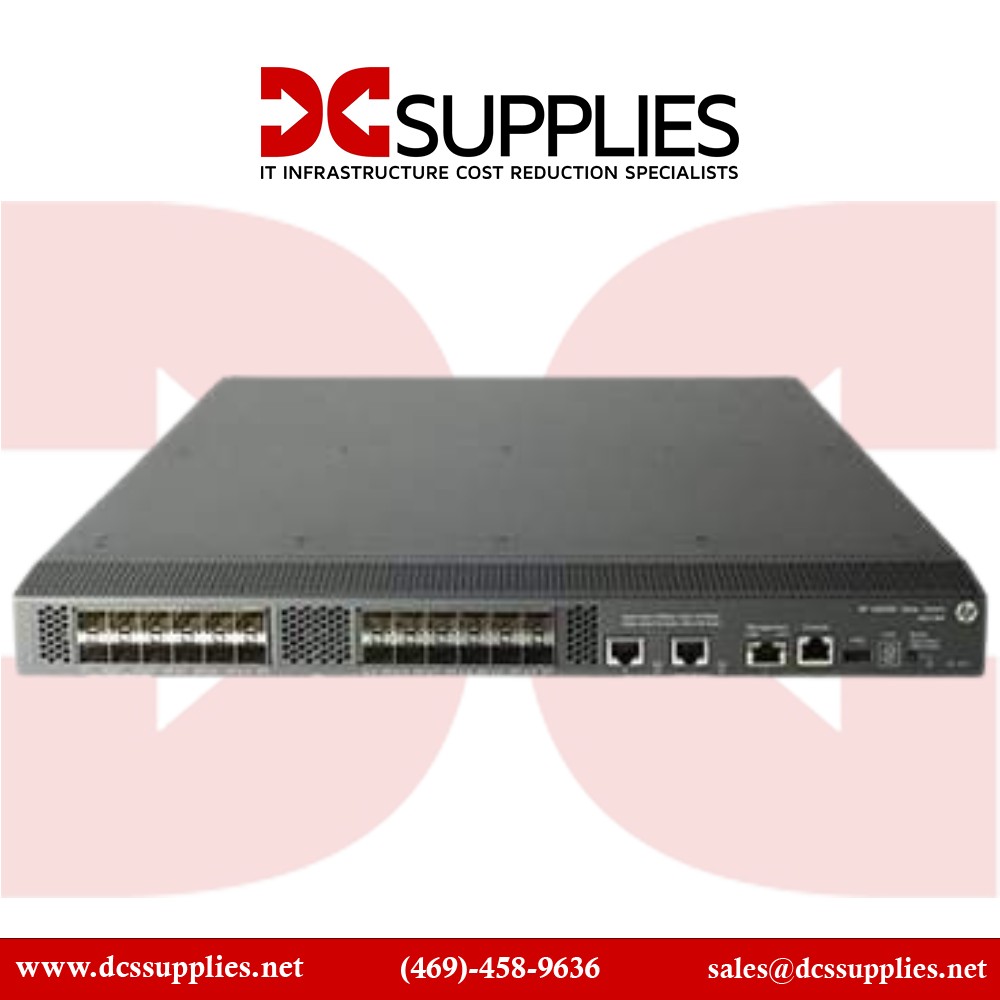

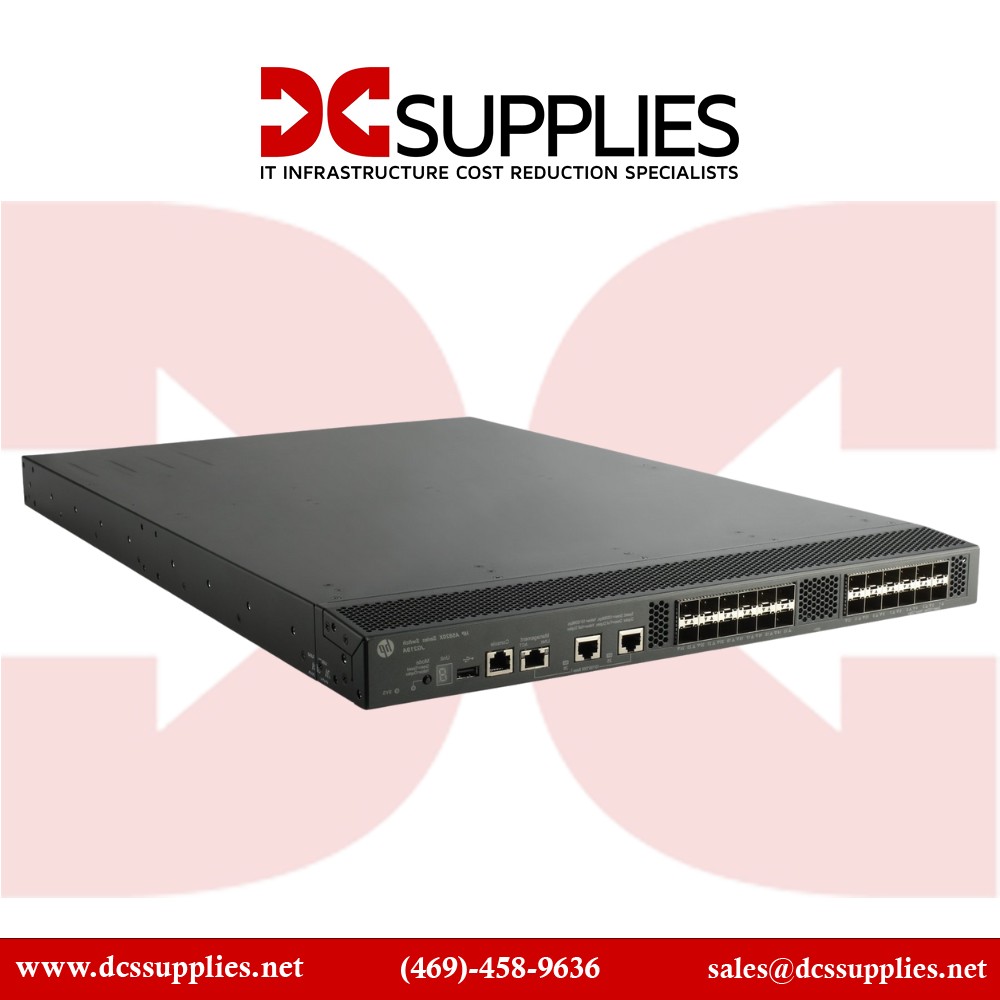

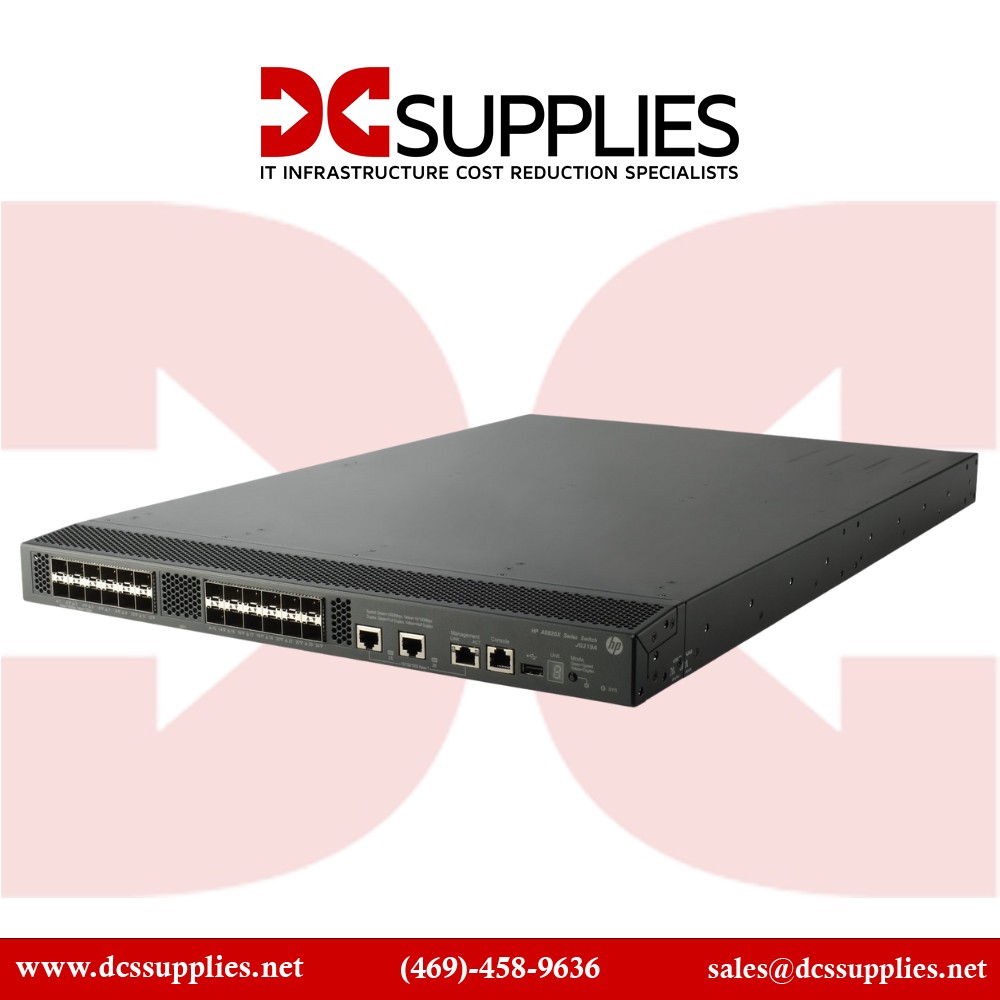

HP JG219A 5820 24 Ports Ethernet Switch View larger
Previous Next

HP JG219A5 820AF‑24XG 24‑Port 10 GbE Managed switch Layer 3 Switch

JG219A

New

×




Detailed Specifications

HP JG219A

5820AF‑24XG 24‑Port 10 GbE Managed switch – 24× SFP+ + 2× 1G RJ‑45, Layer 3 Switch

The JG219A (5820AF‑24XG) switch delivers 24 high-speed 10 GbE SFP+ ports and 2 auto-sensing 1 GbE RJ‑45 ports in a resilient 1‑RU chassis. Designed for enterprise data centers, core aggregation, and high-performance campus networks, it supports full Layer 3 routing (IPv4/IPv6), cutting-edge multi-protocol services, and hot-swappable power/fan modules for maximum uptime. With wire-speed forwarding, dual airflow support, and advanced QoS and security features, this unit enables scalable, low-latency connectivity across demanding environments.

Features

Based on the HP 5820 switch family, this model integrates seamlessly into modern enterprise infrastructures with IPv4 and IPv6 dual-stack support, advanced routing (OSPF, IS‑IS, BGP, RIP), VRRP redundancy, and policy-based routing. It supports cut‑through switching for ultra‑low latency and rapid convergence.

Advanced Options

Equipped with modular fan tray slots and redundant power supply bays, the unit supports front-to-back or back-to-front airflow configurations, making it ideal for hot/cold aisle deployments in data centers. Management is accessible via CLI, web interface, SNMP, and integration with HP Intelligent Management Center (IMC), while monitoring features such as sFlow and RMON facilitate in-depth performance and traffic analysis.

Product Key Features

    • 24 × 10 GbE SFP+ fiber ports

    • 2 × 1 GbE RJ‑45 auto-negotiating access ports

    • Full Layer 3 routing and IPv6 dual-stack support

    • Hot-swappable fan trays and power modules with flexible airflow

    • Wire-speed cut-through switching with teal-scale performance

    • Advanced monitoring via sFlow, RMON; CLI, GUI, SNMP management

Reliability & Performance

Engineered for demanding enterprise environments, this switch offers 484 Gbps switching capacity and up to 360 Mpps forwarding rate, supported by 2 MB packet buffer, 2 GB SDRAM, and 512 MB Flash storage. Its cut-through switching approach ensures sub‑3 µs latency per port. The unit's airflow flexibility and redundant components ensure uninterrupted operation even during maintenance or component failure. Designed for high availability, the chassis allows granular health monitoring, live diagnostics, and policy-based traffic enforcement across high-density network fabrics.

Key Features :

  • 24 × 10 GbE SFP+ ports

  • 2 × 1 GbE RJ‑45 ports

  • Layer 3 routing (IPv4/v6): OSPF, BGP, RIP, IS‑IS, VRRP

  • Wire-speed switching at full 360 Mpps

  • Hot-swappable power supplies and fans

  • Flexible front/back airflow support

  • QoS, ACL, VLANs, LACP and storm control support

  • RMON, sFlow monitoring and web/CLI/SNMP management

SpecificationDetails
Model Number JG219A (5820AF‑24XG)
Product Category 10 GbE Managed switch Layer 3 Switch
Port Count 24 × SFP+ (10 GbE), 2 × RJ‑45 (1 GbE auto-negotiating)
Switching Capacity Up to 484 Gbps
Forwarding Rate Up to 360 Mpps
Latency ~2.0–3.0 µs (cut‑through, 64‑byte packets)
Buffer & Memory 2 MB packet buffer; 2 GB SDRAM; 512 MB flash
Routing & Features IPv4/IPv6 routing (OSPF, BGP, RIP, IS‑IS, VRRP), QoS, ACLs
Management Interfaces CLI, Web GUI, SNMP, IMC
Monitoring sFlow, RMON, ingress/egress monitoring, traceroute, ping
Redundancy Dual PSU slots, dual fan trays, hot-swappable
Airflow Modes Front‑to‑back or back‑to‑front configurable
Dimensions (H×W×D) ~1.73″ × 17.32″ × 16.81″ (44 × 44 × 42.7 cm), 1U
Weight ~8.5 kg (18.7 lb)
Operating Temperature 0 °C to 45 °C
