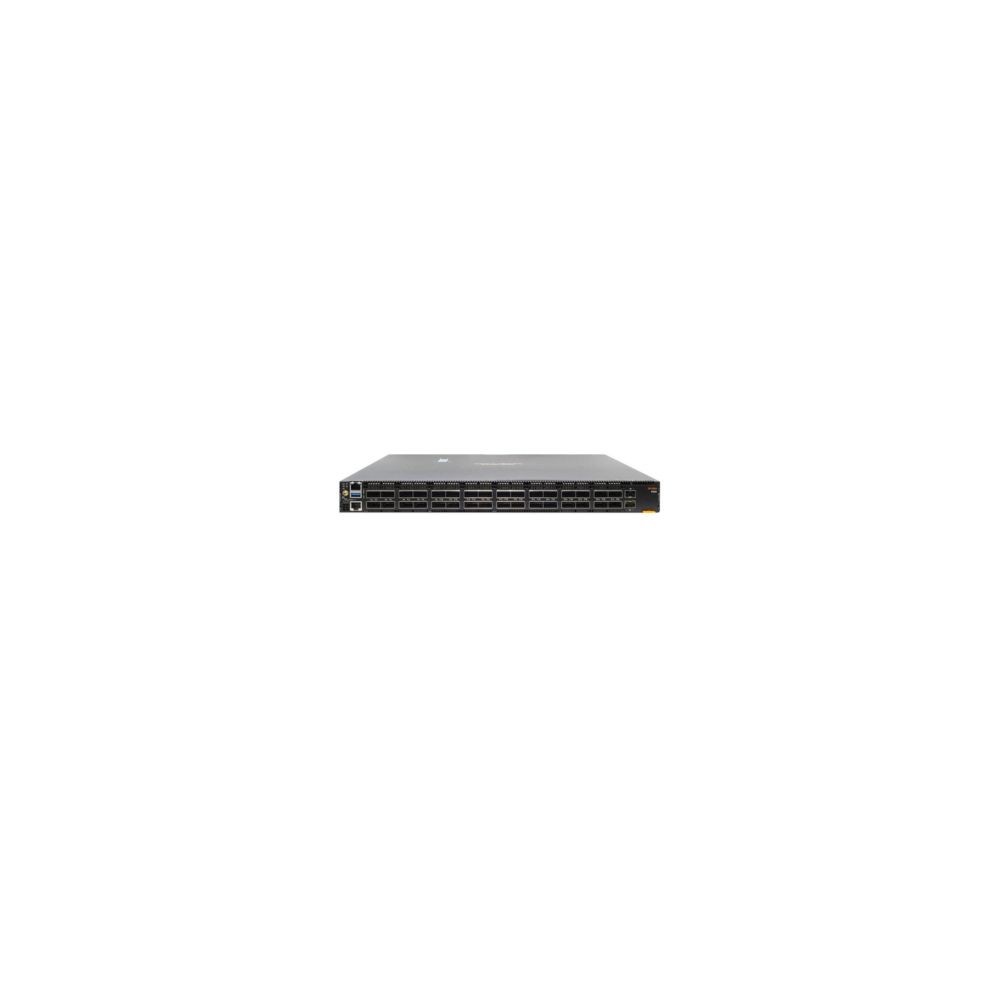

HPE Aruba R9A30A CX 9300 Ethernet Switch 32 ports

New

HPE Aruba R9A30A CX 9300 Ethernet Switch 32 Port High Capacity Network Switch
×




  • New

Detailed Specifications

HPE Aruba R9A30A Ethernet Switch

Overview :

The HPE Aruba Networking CX 9300 Switch Series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity. The HPE Aruba Networking CX 9300 Switch Series protects enterprises' investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.
  • The HPE Aruba Networking CX 9300 Switch Series meets the modern demands of large scale virtualized and cloud networks.
  • Provide flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
  • The HPE Aruba Networking CX 9300 Switch Series with breakout cabling scalability allows a single 200GbE split into two 100GbE links.
  • 100GbE ports can breakout to four 25GbE ports linking one switch port, and accommodating up to four adapter cards in servers or other subsystems.
  • 400 Gbps port can be configured as 4x100GbE, 2x200GbE, or 1x400GbE.

Specifications :

Product Description: HPE Aruba CX 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch - switch - 32 ports - managed - rack-mountable
Part Number R9A30A
Device Type: Switch - 32 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+
Performance: Switching capacity: 12.8 Tbps ¦ Throughput: 5 Bpps
Capacity: Packet buffer size: 132 MB ¦ IPv4 host table capacity: 163840 ¦ IPv6 host table capacity: 81920 ¦ IPv4 unicast direct routes: 65536 ¦ IPv6 unicast direct routes: 32768 ¦ MAC addresses: 81920 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 groups (Multicast): 8192 ¦ IPv6 groups (Multicast): 4096
Routing Protocol: OSPF, BGP-4, RIP-2, BGP, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 3, SNMP 2c
Features: sFlow, VRRP support, DCBX support, BFD, Rapid PVST+, ERPS, PFC, VXLAN, Cisco IPSLA, ETS, VSX, UDLD
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
Power: AC 100-127/200-240 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.3 in x 23.2 in x 1.7 in
Weight: 26.12 lbs
Pricing Type: BTO
