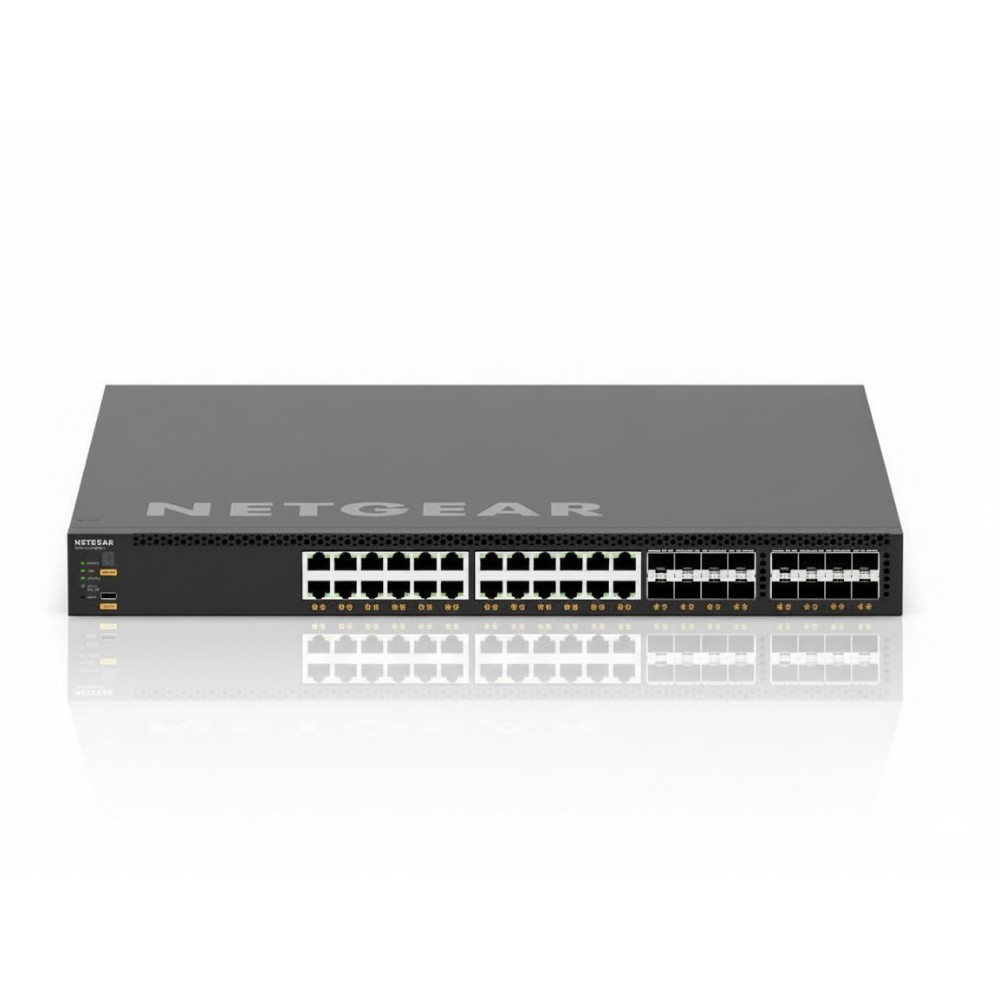

NETGEAR XSM4340V-100NES M4350-24X8F8V Switch L3 managed Switch View larger

NETGEAR XSM4340V-100NES 40 ports Ethernet Switch

New

24-Port Multi-Gig PoE++ Managed Switch
×




  • New

Detailed Specifications

NETGEAR XSM4340V-100NES – Managed AV Switch

Overview :

The NETGEAR XSM4340V-100NES is a fully managed AV-over-IP switch designed for engineers and IT teams handling high-density multimedia traffic. It provides 24 Multi-Gig PoE++ ports for endpoint connections and 8 SFP+ 10G ports and 8 SFP28 25G ports for uplinks or stacking, delivering 1.04 Tb/s switching capacity with 773.76 Mpps forwarding. The switch supports Layer 2 and Layer 3 routing, VLAN segmentation, multicast IGMP Snooping, and NETGEAR IGMP Plus™ to optimize multicast traffic in large AV deployments. Ideal for data centers, AV control rooms, campus AV networks, and other environments requiring low-latency, high-bandwidth AV distribution. Management and monitoring are simplified through NETGEAR Engage Controller, enabling centralized control and real-time network visibility across multiple switches.

Key Features :

  • 24 Multi-Gig PoE++ ports for high-speed connectivity

  • 8 x 10G SFP+ ports and 8 x 25G SFP28 ports for uplinks and stacking

  • 1.04 Tb/s switching capacity, 773.76 Mpps forwarding

  • Supports Layer 2 and Layer 3 routing protocols

Technical Specifications :

AttributeSpecification
Brand NETGEAR
Part Number XSM4340V-100NES
Product Type Fully Managed AV Network Switch
Ports 24 x Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28
Switching Capacity 1.04 Tb/s
Forwarding Rate 773.76 Mpps
Power Supply 750W internal; supports APS600Wv3, APS1200Wv2, or APS2000Wv2 for 1+1 redundancy
PoE Budget 290W internal; up to 1,770W with external power supply
Layer 3 Features Static, policy-based, and dynamic routing
Virtual Chassis Stacking Yes, with non-stop forwarding (NSF) and hitless failover
Operating Temperature 0°C to 45°C
Cooling Fan-assisted (Noise Level: 61.8 dB)
Rack Mountable Yes, 1U
Dimensions 440 x 400 x 43.2 mm
Weight 6.95 kg
