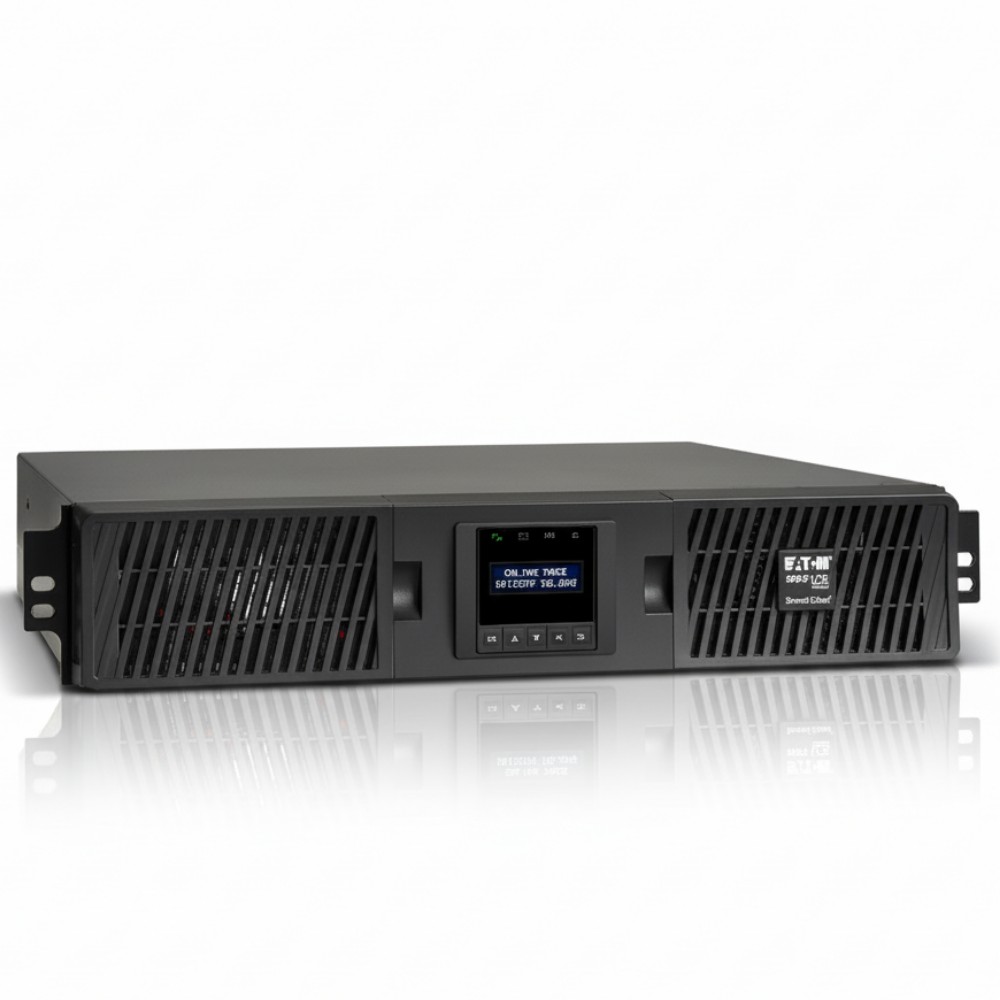

Eaton SUINT2200LCD2U Tripp Lite 2 2 kVA 2 kW On Line Double Conversion UPS

SUINT2200LCD2UOverview

The Eaton SUINT2200LCD2U is a rack-/tower convertible UPS delivering 2200 VA (≈2000 W) output, designed for single-phase 208 / 230 V installations where uptime is critical and space is limited. This unit uses true on-line double-conversion topology (AC-DC-AC) with zero transfer time, meaning connected equipment sees continuous, regulated power regardless of mains fluctuations or outagesIt supports a 2-U rack height and comes with a detachable C19 to L6-20P input cord, allowing it to be integrated into standard 19-inch racks or deployed as a tower with included support stands. The front-panel LCD provides real-time monitoring of load, battery status, runtime and alerts, which is useful in data-closet or branch-office racks.
Run-time at full load (≈2000 W) is approximately 4 to 6 minutes, sufficient to initiate safe shutdown or switch to backup power. Runtime can be extended by adding up to four optional external battery modules, enabling longer hold-up time in remote, critical or generator-less environments
In practice, you’d choose the SUINT2200LCD2U when you have a single phase feed (208/230V), need pure-sine output to support active-PFC servers, storage or networking gear, and want a compact footprint with premium features (LCD, network card option, hot-swappable batteries). It suits edge racks, branch-site data closets or IT rooms with limited U-space but high uptime demands.

Key Features

• 2200 VA / ~2000 W rated output with pure-sine waveform and zero transfer time keeps servers and network gear online during disruptions.

• Convertible 2U rack/tower form factor with LCD interface, USB and RS-232 ports, and optional network management card for remote monitoring and control.

• Hot-swappable internal VRLA battery modules plus support for external battery packs (up to 4) enable scalable runtime without replacing the UPS inverter.

• Two controllable load-banks (switchable) allow partial shutdown of non-critical loads to extend runtime for priority equipment.
