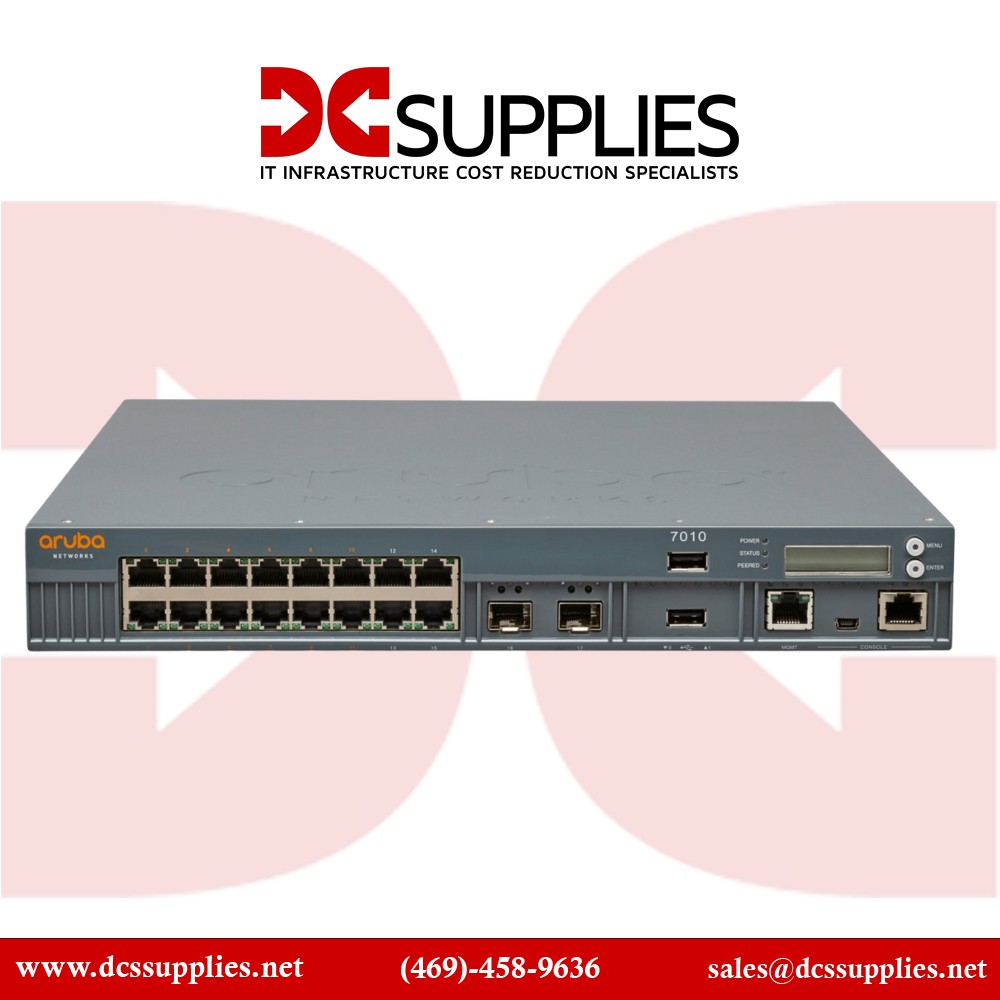

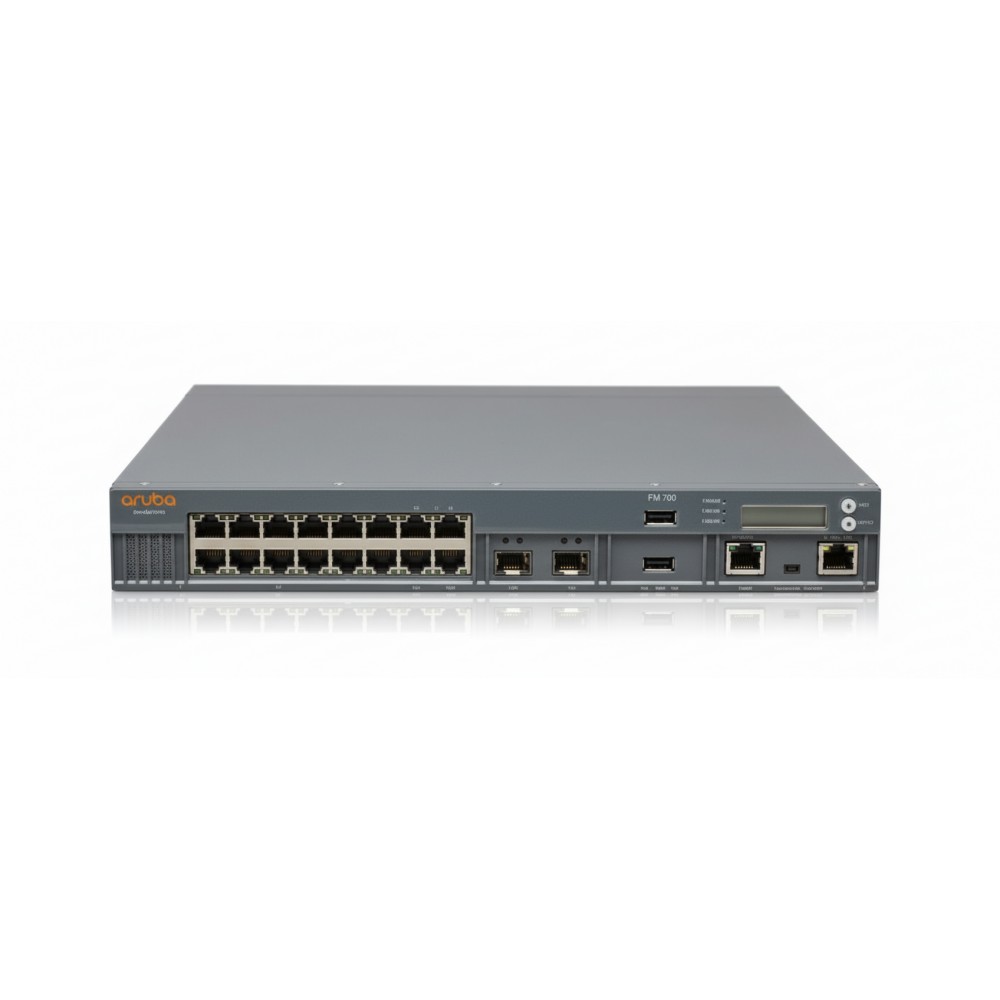

HPE Aruba JW679A 7010 Series Controller Network Management Device

New

In Stock

HPE 7010 Wireless LAN Controller - 16 x Network (RJ-45) - Gigabit Ethernet
×




$3,122.00

  • New

Detailed Specifications

HPE JW679A

Aruba JW679A (7010 Series) Mobility Controller – Rack‑Mountable Network Management Appliance

The JW679A Aruba 7010 Mobility Controller is a mid‑sized enterprise-class network controller ideal for branch offices, campuses, and retail environments. It centralizes WLAN management, policy enforcement, and secure connectivity—serving as a robust core for up to 32 Aruba Access Points and thousands of clients.

Features

This appliance simplifies deployment while boosting security and performance. You can manage APs, apply firewall rules, configure VPNs, and shape traffic policies centrally. Zero‑Touch Provisioning enables fast.

Advanced Options

remote rollouts. It integrates seamlessly with hybrid WANs, enabling secure, efficient access to cloud and on‑premise services.

Product Key Features

  •  Supports up to 32 APs and 2,048 concurrent client devices

  •  16× Gigabit PoE+ RJ‑45 ports, plus 2× Gigabit SFP uplink ports

  •  150 W PoE budget to power APs and inline devices

  •  Built-in 4 Gbps firewall throughput, 3.6 Gbps AES/VPN acceleration

  •  Aggregates wired, wireless, and hybrid-WAN with policy-based routing and secure VPN

  •  1U rackmount form factor with LCD panel, console port, USB OOB management

Reliability & Performance

  • Enterprise‑grade throughput: 4 Gbps firewall, 3.6 Gbps encrypted traffic capacity Hardened hardware with PoE+ support, redundant power management, and 1 U rack design Active client tracking using Aruba's Adaptive Radio Management and ClientMatch Supports IPv4/IPv6, AppRF, GRE tunnels (up to 1,024), IPSec VPN (up to 1,024), and remote AP support (up to 32) Operates in standard data center temps (0º C to 40º C), with storage rated down to –40ºC.

Key Features :

  • 16× 10/100/1000 Base‑T PoE+ LAN ports

  • 2× Gigabit SFP external uplink ports

  • Supports up to 32 Aruba APs and 2,048 clients

  • 150 W PoE power budget

  • 4 Gbps firewall; 3.6 Gbps AES-encrypted throughput

  • Handles 1,024 GRE/IPSec tunnels, 32 remote APs

  • 1U rack form factor with LCD, USB, console, management port

  • Zero‑Touch provisioning, AppRF, ARM, ClientMatch

  • VPN support, policy-based routing, hybrid-WAN capabilities

SpecificationDetails
Model Number JW679A
Product Type 1U Rackmount Mobility Controller
LAN Ports 16× 1 GbE RJ‑45 PoE+
Uplink Ports 2× 1 GbE SFP
Console Ports 1× USB‑A, 1× OOB RJ‑45
PoE Budget 150 W
Max APs 32
Max Clients 2,048
Firewall Throughput 4 Gbps
Encrypted Throughput 3.6 Gbps AES
GRE/IPSec Tunnels Up to 1,024 tunnels
Height Installed 1U
Dimensions (H × W × D) ~4.4 cm × 31.8 cm × 33.7 cm (1.7″ × 12.5″ × 13.3″)
Weight ~3.4 kg (7.5 lb)
Operating Temp 0 °C to 40 °C (IO operating)
Storage Temp –40 °C to 70 °C
Power Consumption ~190 W with PoE
Power Input Internal AC PSU, 90–264 VAC
Management Features LCD UI, Zero‑Touch provisioning, ARM, ClientMatch, AppRF
Security & VPN Stateful firewall, IPSec VPN, Policy enforcement, IPv6
