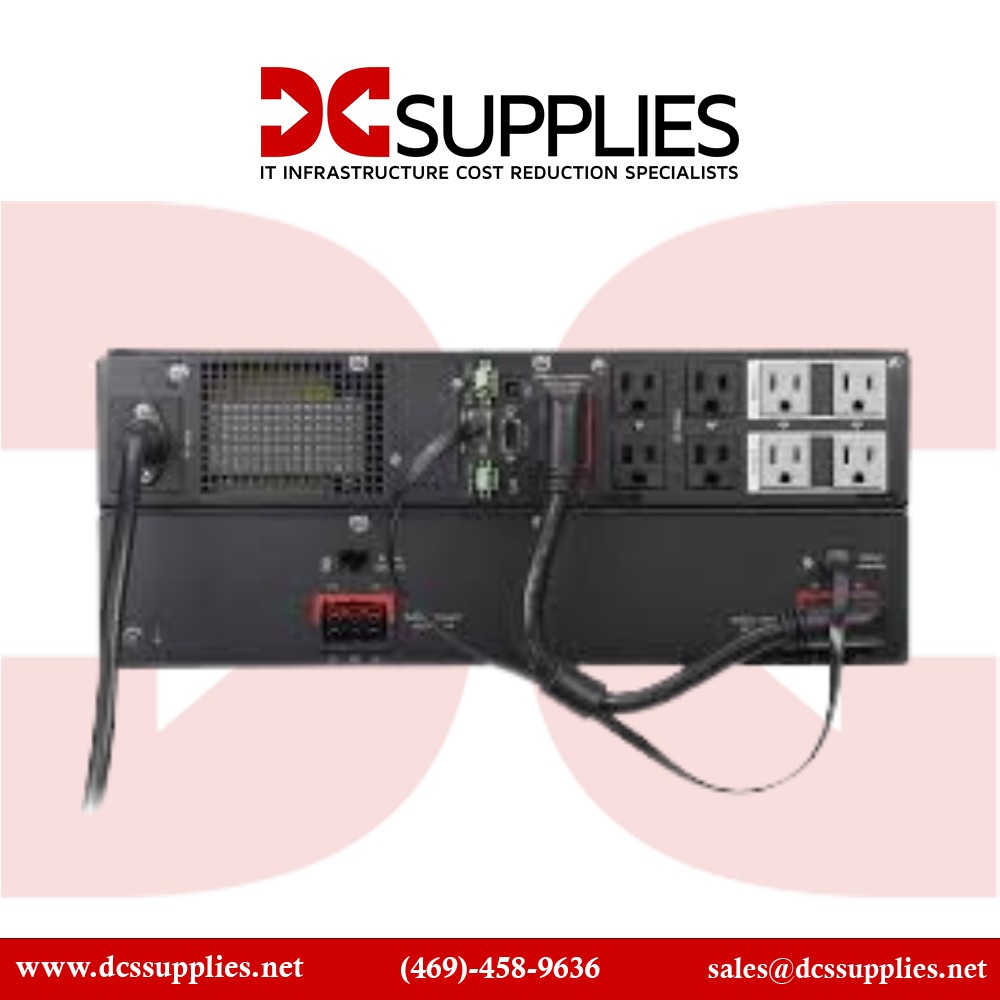

Eaton 5PXEBM48RTG2 External Battery Pack for Select Eaton 5PX G2 UPS 48V 2U Rack/Tower View larger

Eaton 5PXEBM48RTG2 48V External Battery Pack for 5PX G2 UPS

New

In Stock

Eaton Extended Battery Module
×




$730.00

  • New

Detailed Specifications

Eaton 5PXEBM48RTG2 – 48V Extended Battery Module

Overview :

The Eaton 5PXEBM48RTG2 is an external 48V extended battery module designed to provide additional runtime for Eaton’s 5PX G2 UPS systems, including models 5PX1000RTG2, 5PX1000RTNG2, 5PX1500RTG2, 5PX1500RTNG2, and 5PX1500HRTG2. This module is particularly beneficial for environments where extended battery backup is critical, such as small businesses, educational institutions, retail settings, financial services, and healthcare facilities. It supports both rack-mounted and tower configurations, offering flexibility in deployment. The module can be daisy-chained with up to four units to further extend runtime, making it suitable for applications requiring prolonged power protection.

Key Features :

  • Compatible with Eaton 5PX G2 UPS systems

  • Supports up to four units in daisy-chain configuration

  • Includes heavy-gauge cabling with high-current 48V DC connectors

  • Mountable in 2U rack space or upright tower installation

  • Comes with 4-post rail kit, tower stands, and EBM connector cable

Specifications :

SpecificationDetails
Brand Eaton
Part Number 5PXEBM48RTG2
Product Type Extended Battery Module (EBM)
Battery Type Sealed Lead-Acid (VRLA)
DC System Voltage 48V
Topology Line-interactive
Form Factor Rack/Tower
Rack Size 2U
Dimensions (L x H x W) 17.6 x 17.2 x 3.4 inches
Weight 61.3 lbs
Warranty 3 years (electronics and batteries)
Certifications cULus, CE, RoHS, BSMI
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -15 to 50°C (5 to 122°F) without batteries, 0 to 50°C (32 to 122°F) with batteries
Humidity Range 0 to 95% non-condensing
Altitude Up to 3,000 meters (9,843 feet)
